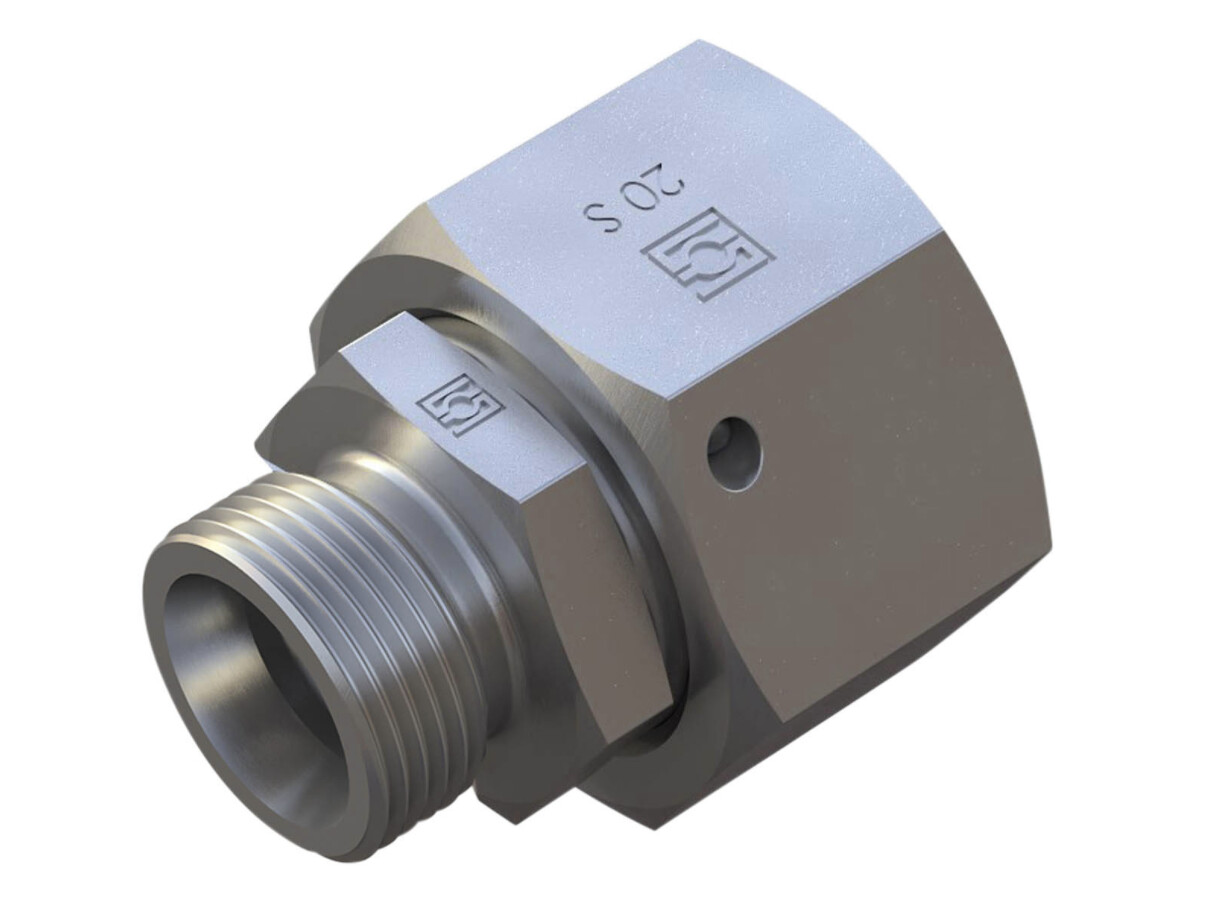

Reducting adaptor - ø30S female x ø16S - o-ring seal
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Artikelnummer:
FXREDSD3016S
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
D1
30 mm
D2
16 mm
D3
12 mm
D4
22 mm
Diameter pipe
30 - 16 mm
L
50 mm
L1
63 mm
L2
44,5 mm
Material
Steel
Model code
FI-REDSD-30/16S-V-W3-DKO
PN
420 bar
Pressure max.
420 bar
REACH compliant
Yes
RoHs compliant
Yes
S1
41 mm
S2
50 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
S
Surface treatment
Zinc-Nickel plated
Temperature max.
+200 °C
Temperature min.
+25 °C
Thread inner metric
M42x2
Thread outer metric
M24x1,5
Pakke str.
0 pcs
Stregkode
5704334706588
Brutto vægt
0,39 Kg
Netto vægt
0,39 Kg
Oprindelsesland
DEU
Intrastat varekode
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
