Adjustable Tee - ø12L - with O-ring FI-ETD-12L-B-W3-DKO
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Varenummer:
FXETD12L
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
12 mm

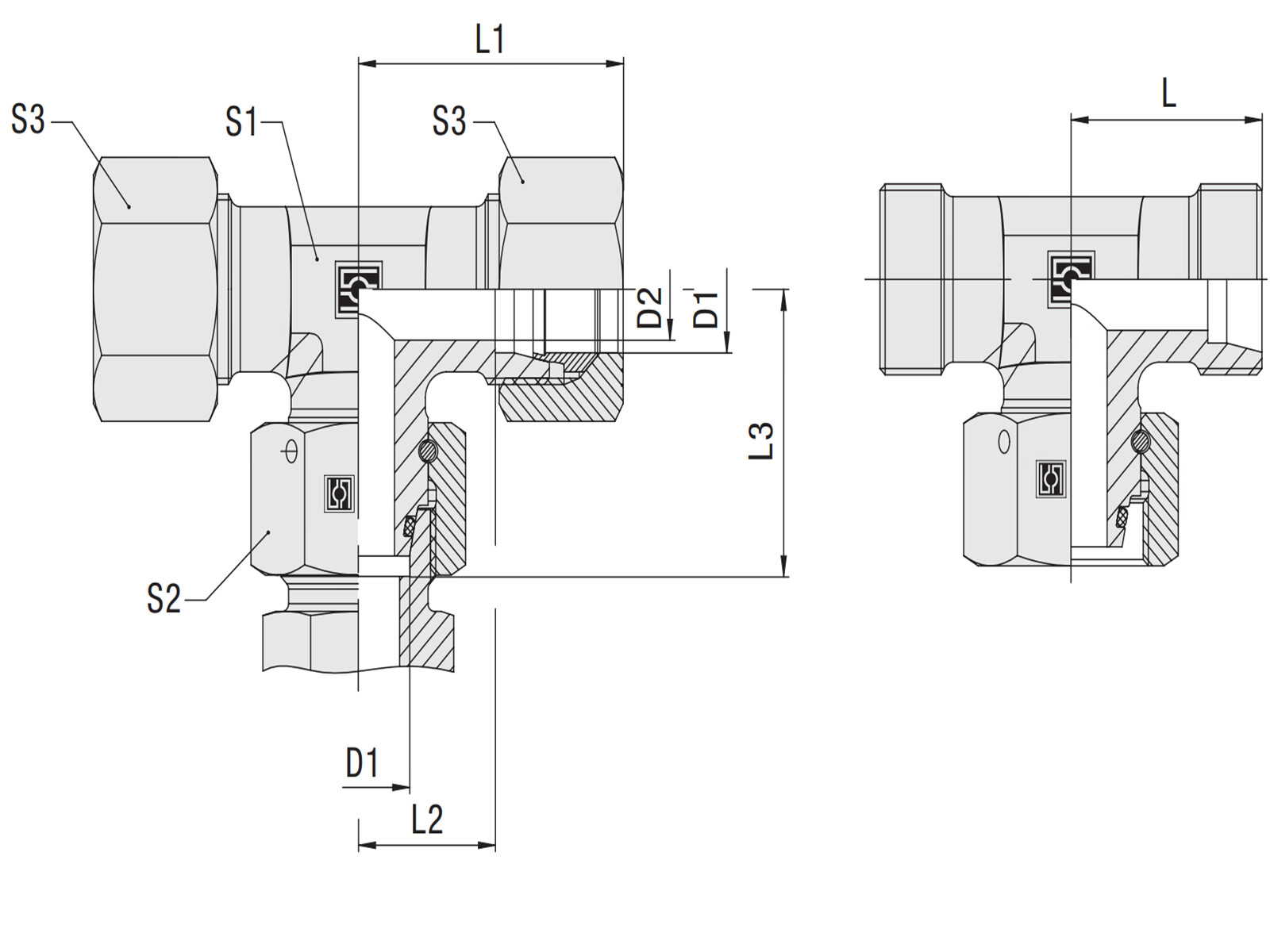

Dimension D1
12 mm
Dimension D2
10 mm
Dimension L
24 mm
Dimension L1
32 mm
Dimension L2
17 mm
Dimension L3
29.5 mm
Dimension S1
17 mm
Dimension S2
22 mm
Dimension S3
22 mm
Material
Steel
Model code
FI-ETD-12L-V-W3-DKO
Pressure max.
400 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread inner metric
M18x1,5
Thread outer metric
M18x1,5
Package size
1 pcs
Barcode
5704334721802
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73071110
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
