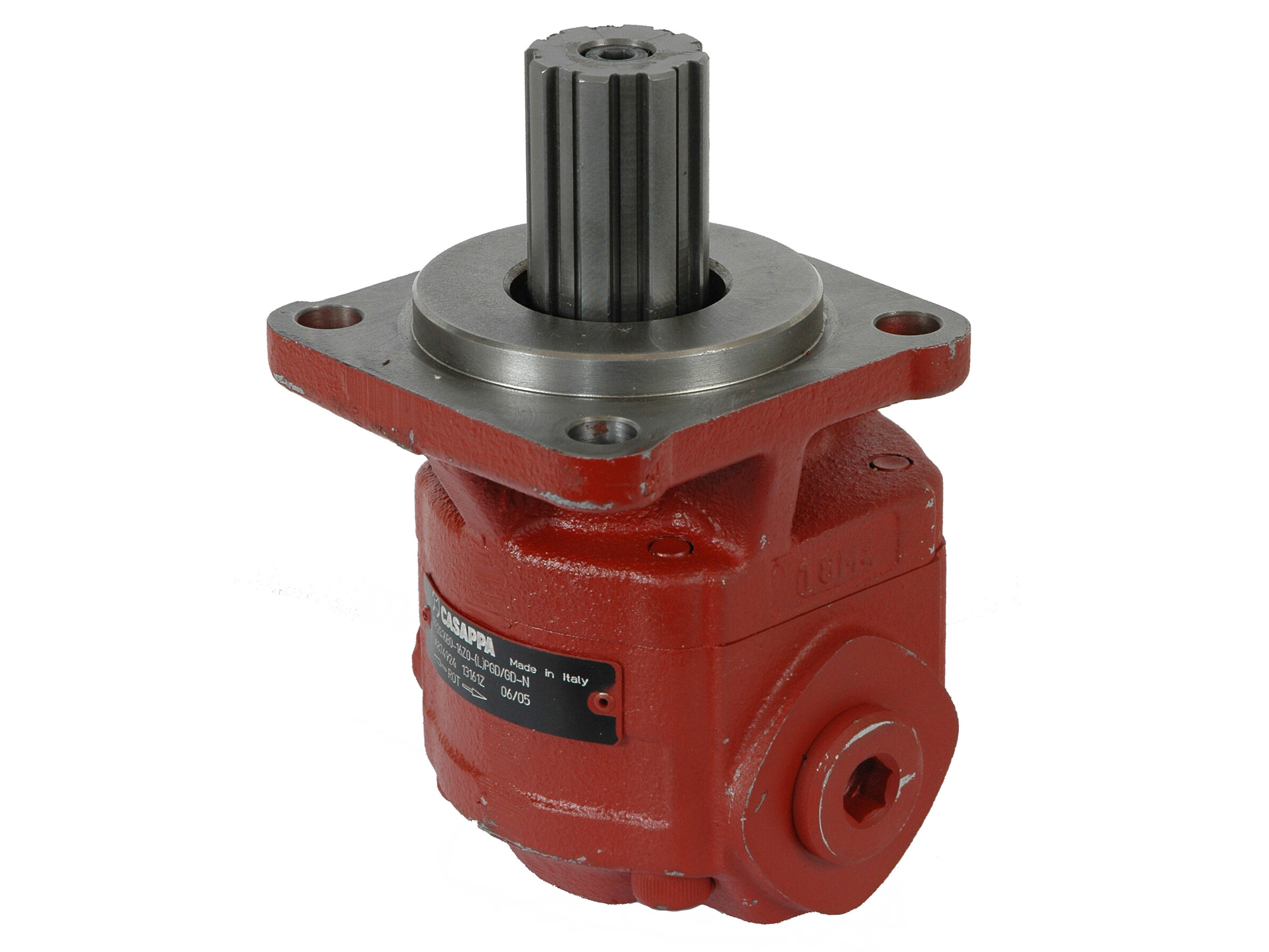

FP20.11,2B-16Z0-LP-GD/GD-N Formula pump, Casappa
FP20.11,2B-16Z0-LP-GD/GD-N Formula pump, Casappa
Varenummer:
FP20.11.2B
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Displacement
11.2 cm3
Holes circle
113 mm
Inlet
G 1/2 BSP
Model code
FP20.11,2B-16Z0-LP-GD/GD-N
Mounting flange
ZFC
Number of mounting holes
4
Number of outer grooves
8
Oil viscocity recommended
12 - 100 cSt
Outlet
G 1/2 BSP
Pressure continous max.
280 bar
Pressure intermittent max.
310 bar
Pressure peak max.
325 bar
Pump group
2
Recess
80,0 mm
Rotation direction
Reversible (CW/CCW)
Rotational speed max.
2000 rpm
Rotational speed min.
300 rpm
Shaft diameter
34,9 mm
Shaft spline
W 8x32x36, DIN5482, ISO 14, ZFC
Shaft type
Spline
Torque input
30 daNm
Package size
0 pcs
Barcode
5704295938165
Gross weight
6,02 Kg
Net weight
6,02 Kg
Country of origin
ITA
Intrastat code
84135061
