Blanking plug - ø35
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
FIVD35L
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Diameter pipe
35 mm

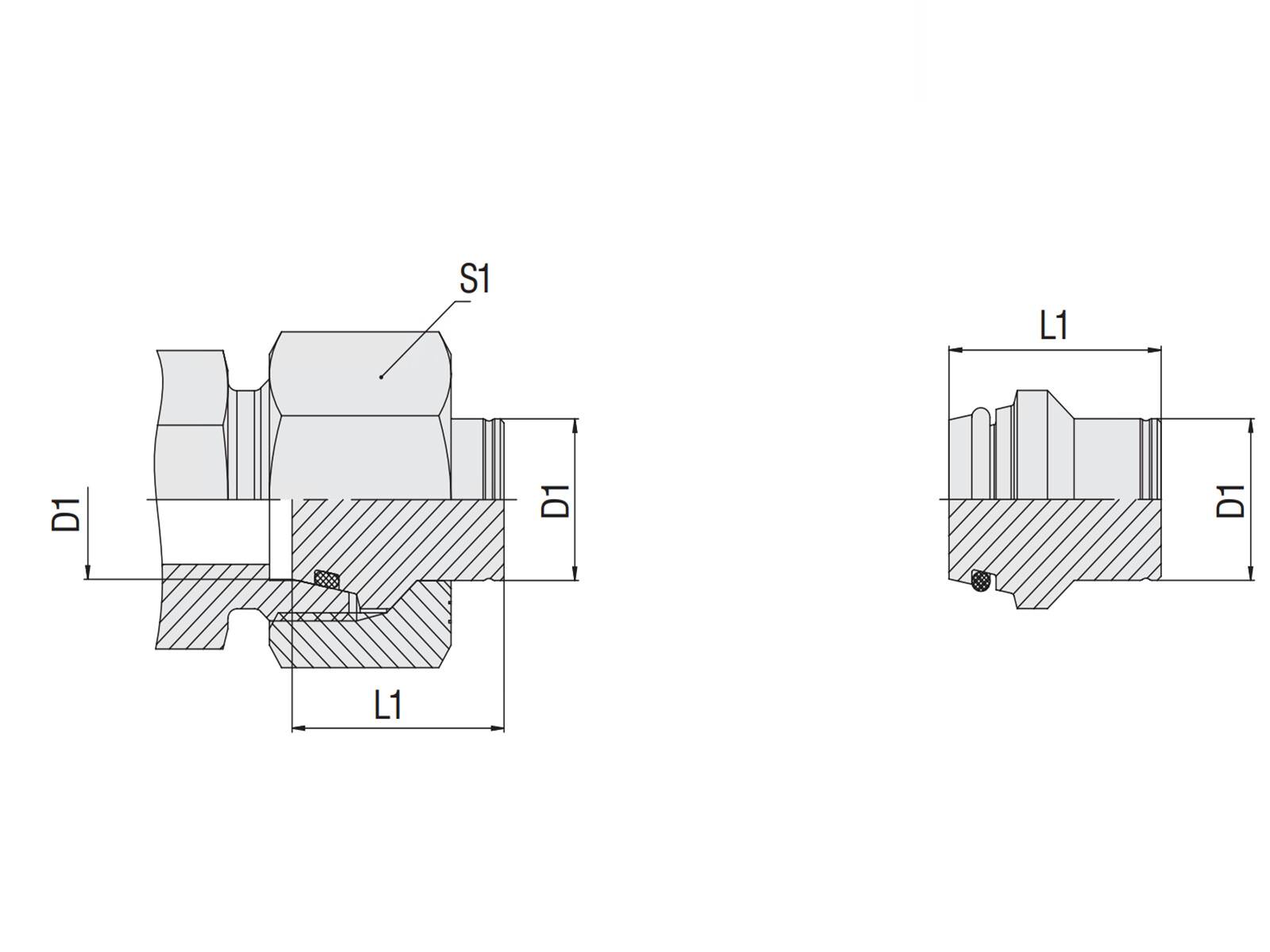

Dimension D1
35 mm
Dimension L1
29 mm
Dimension S1
50 mm
Material
Steel
Model code
FI-VD-35L-B-W3
Pressure max.
250 bar
REACH compliant
Yes
RoHs compliant
Yes
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Surface treatment
Zinc-Nickel plated
Temperature max.
+200 °C
Temperature min.
-25 °C
Package size
0 pcs
Barcode
5704334714705
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73079910
Temperature/pressurereduction:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
