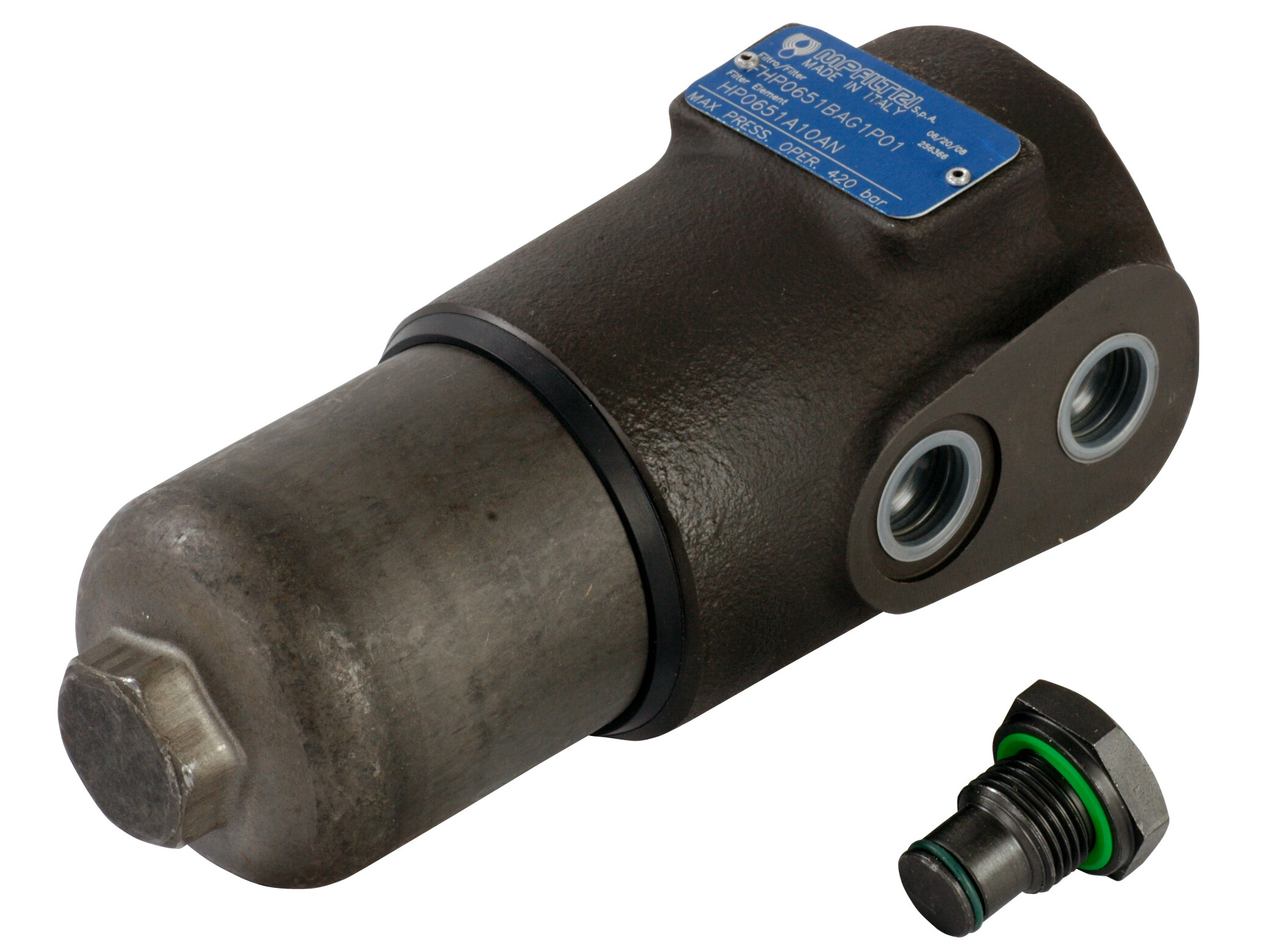

High pressure filter - 10my absolut - 1/2" BSP

Built-in by-pass valve, ensuring flow in case of flow through the filtrationelement is blocked due to contamination.

Varenummer:
FHP0651A10N

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Electrical differential pressure indicator - 5 bar
Varenummer: DEA50HA50P01
Electrical/visual differential pressure indicator - 2 bar
Varenummer: DLE20HF50
Electrical/visual differential pressure indicator - 5 bar
Varenummer: DLE50HA50P01
Visuel differential trykindikator - 5 bar
Varenummer: DVA50HP01
Visuel tryikindikator
Varenummer: Z7
Seal kit FHP065
Varenummer: 02050265
High pressure filter element - FHP - 10my absolut
Varenummer: HP0651A10AN
Blinding plug (T2H)
Varenummer: T2H
Brand Name
MP Filtri

By-pass valve
6 bar

Dimension H
196 mm

Filtration
Absolute

Filtration degree
10 my

Flow rate nominal LMin
56 lpm

Model code
FHP0651-B-A-G1-A10N-T2H

Pressure max.
420 bar

Sealing material
NBR

Temperature max.
+110 °C

Temperature min.
-25 °C

Thread
G 1/2 BSP
Pakke str.
0 pcs

Stregkode
5704295356181

Brutto vægt
3,90 Kg

Netto vægt
3,90 Kg

Oprindelsesland
ITA

Intrastat varekode
84212980

Built-in by-pass valve, ensuring flow in case of flow through the filtrationelement is blocked due to contamination.
