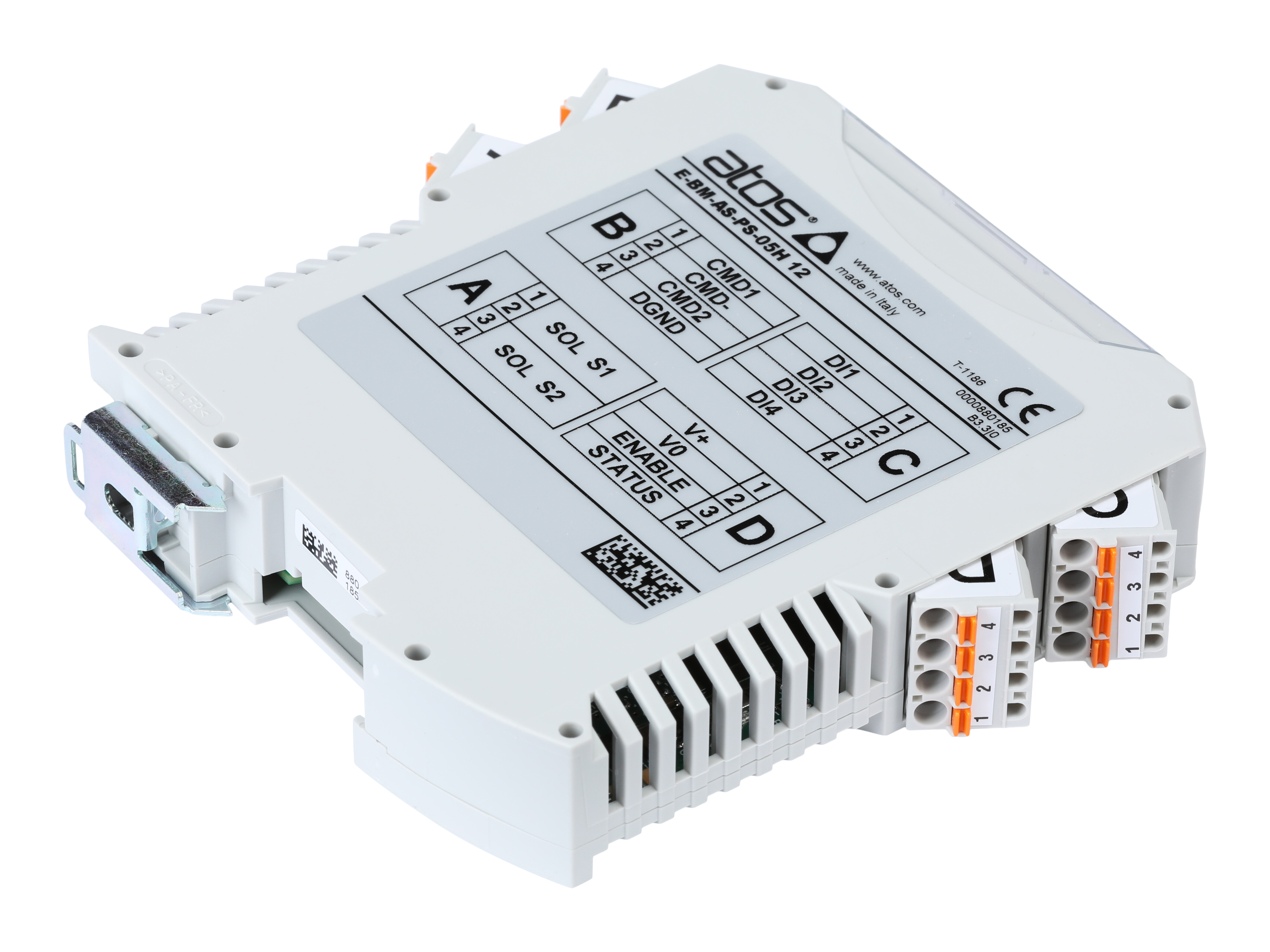

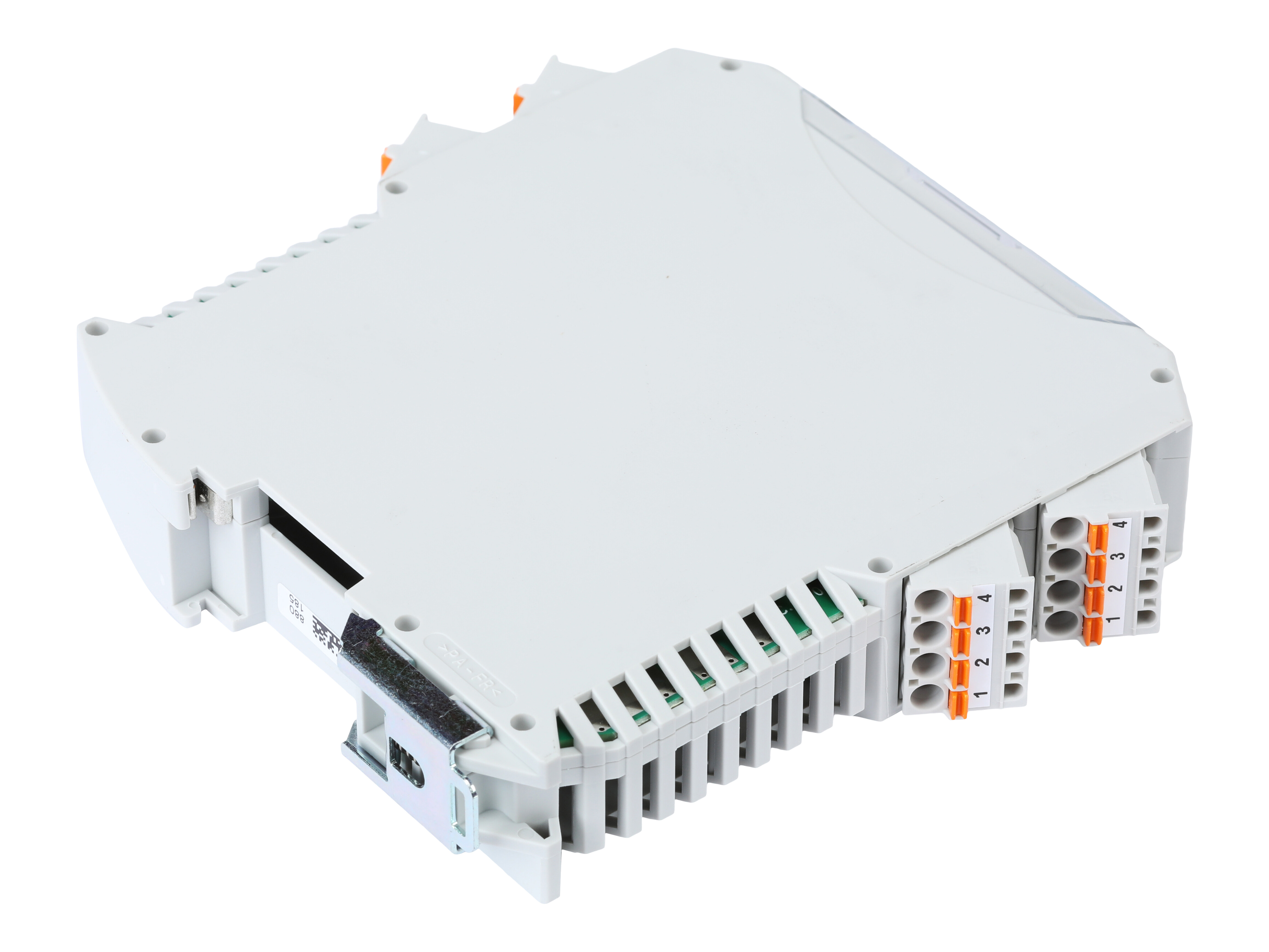

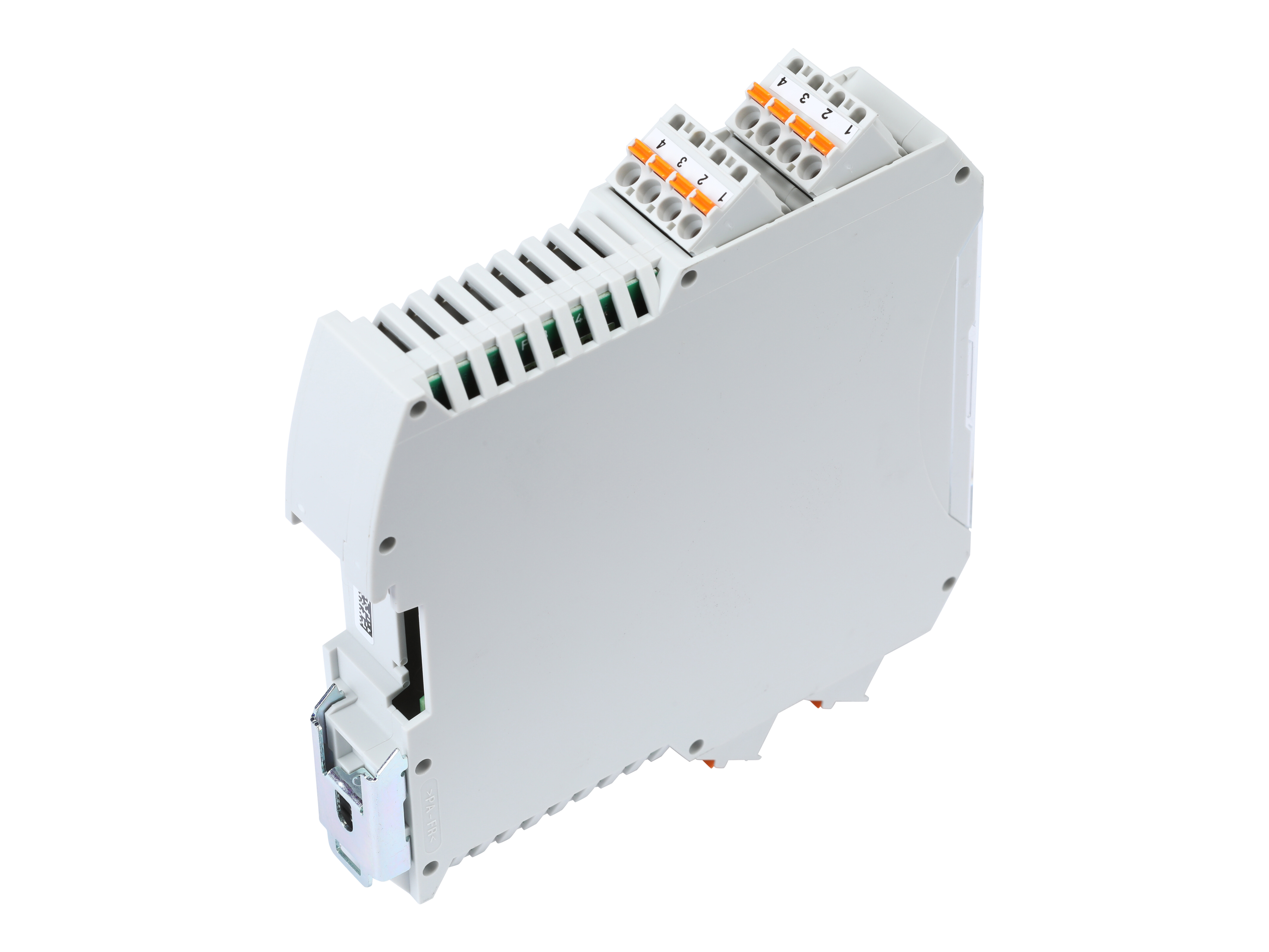

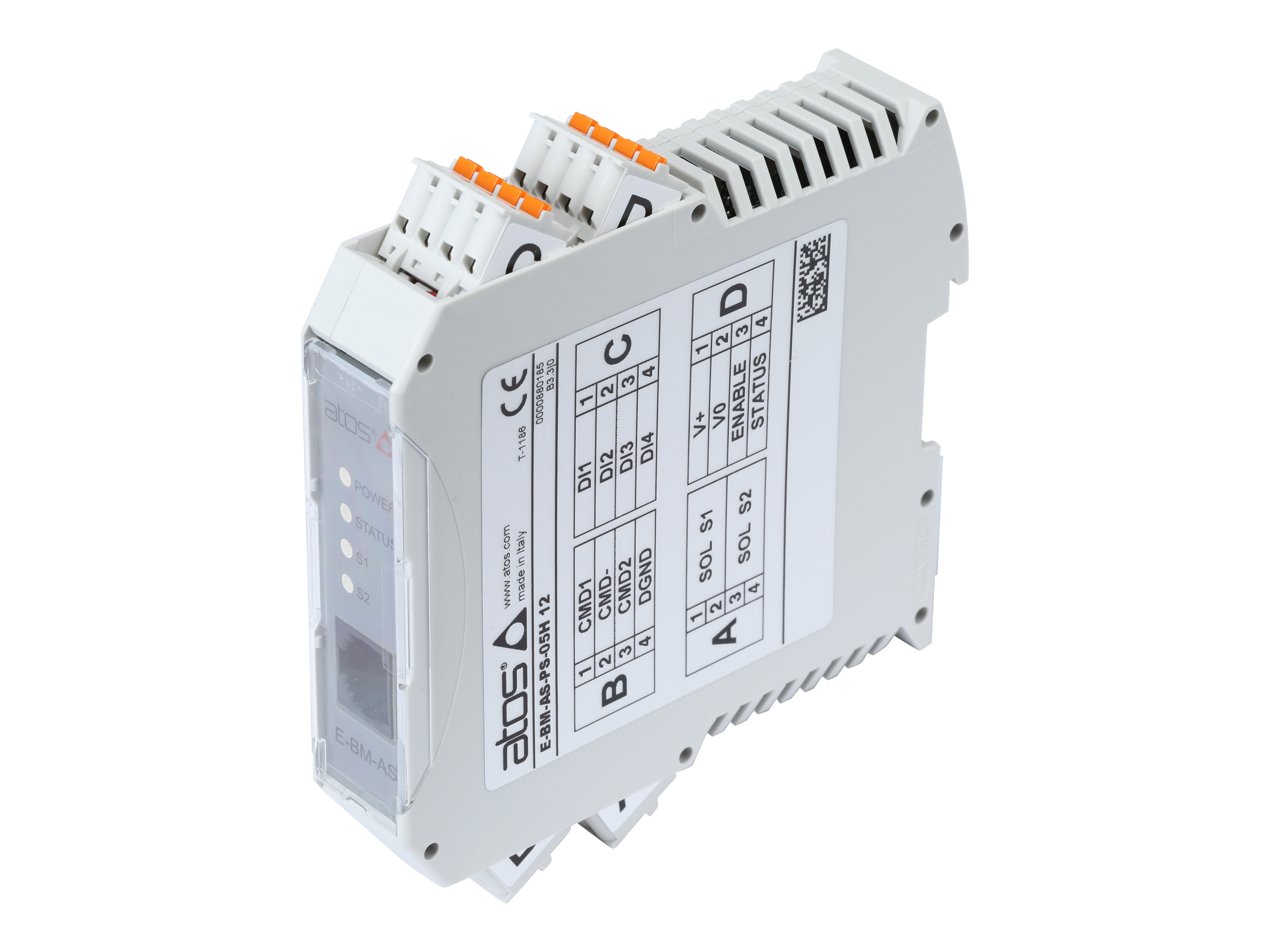

Electronic driver E-BM-AS-PS-05H
The E-BM-AS digital driver converts a refence signal to a current signal stroking a proportional spool correspondingly. To be used with Atos proportional valves with 2 solenoids or 2 single valves with 1 solenoid without integrated driver and feedback. The setup is performed by software installed on a connected PC ( the software is free available from the Atos webpage). The reference signal is selectable to be either a voltage signal (±10V) or a current signal (4-20mA).
Varenummer:
EBMASPS05H
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Atos
Current max.
5 A
Current type
DC
Height
99 mm
Length
113.6 mm
Model code
E-BM-AS-PS-05H
Number of LED's
4
Output signal max.
2700 mA
Output signal min.
0 mA
Power W
50 W
Supply voltage max.
32 V
Supply voltage min.
20 V
Temperature max.
+60 °C
Temperature min.
-20 °C
Width
22.6 mm
Pakke str.
0 pcs
Stregkode
5704334111917
Brutto vægt
0,25 Kg
Netto vægt
0,25 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
The E-BM-AS digital driver converts a refence signal to a current signal stroking a proportional spool correspondingly. To be used with Atos proportional valves with 2 solenoids or 2 single valves with 1 solenoid without integrated driver and feedback. The setup is performed by software installed on a connected PC ( the software is free available from the Atos webpage). The reference signal is selectable to be either a voltage signal (±10V) or a current signal (4-20mA).
