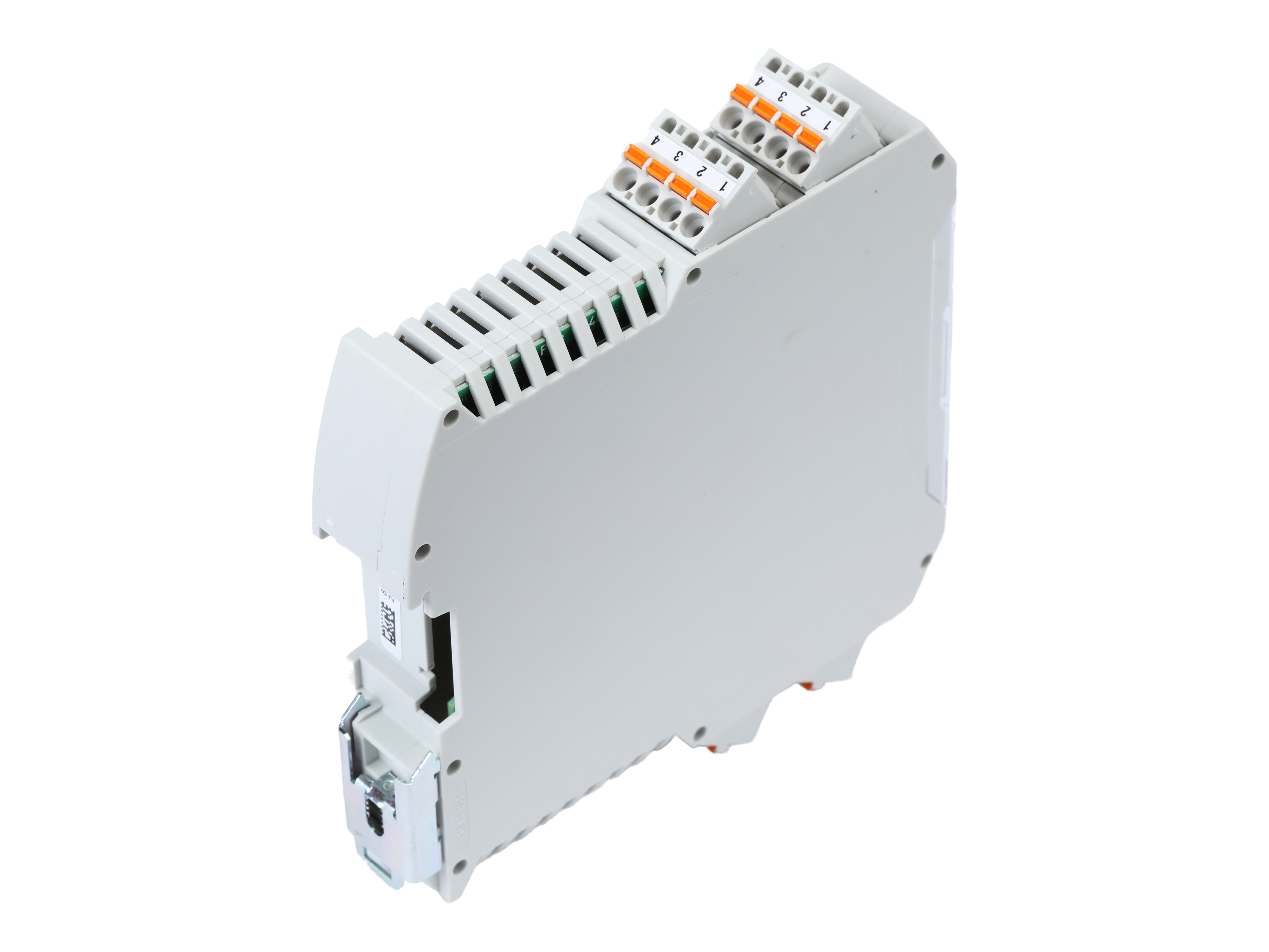

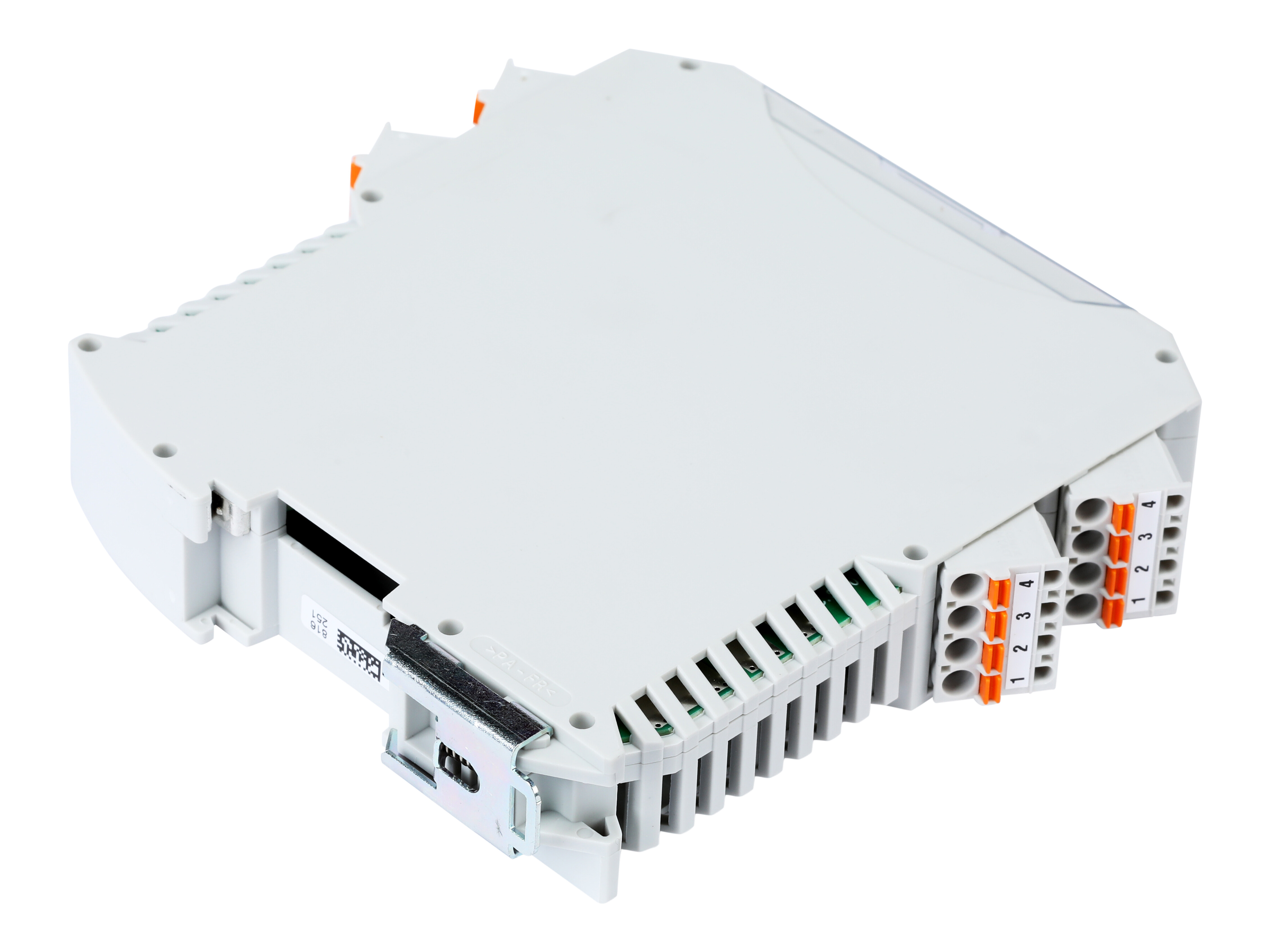

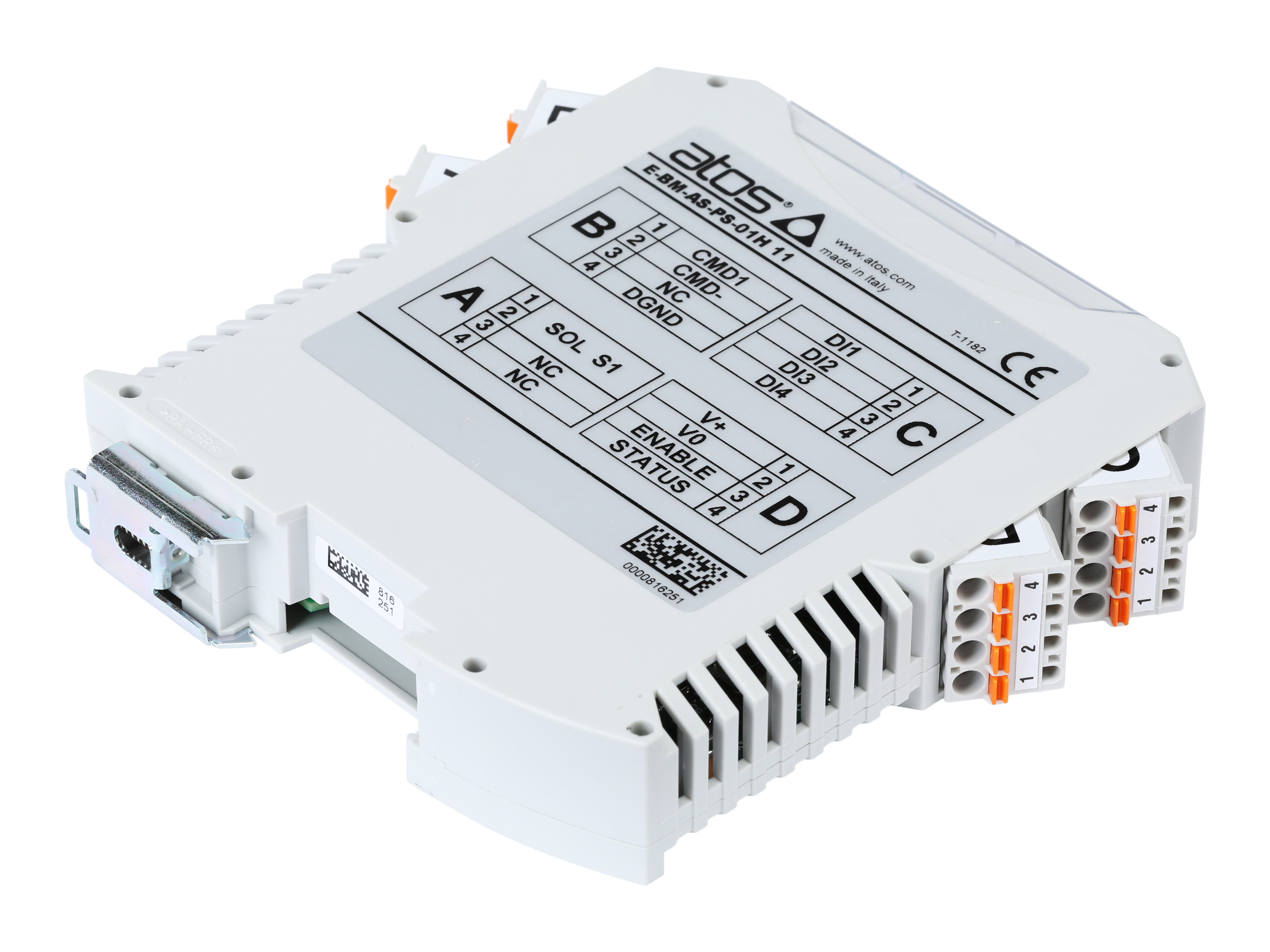

Electronic driver E-BM-AS-PS-01H

The E-BM-AS digital driver converts a refence signal to a current signal stroking a proportional spool correspondingly. To be used with Atos proportional valves with 1 solenoid without integrated driver and feedback. The setup is performed by software installed on a connected PC ( the software is free available from the Atos webpage). The reference signal is selectable to be either a voltage signal (±10V) or a current signal (4-20mA).

Partnumber:
EBMASPS01H

Package size:
0 pcs

Min. order quantity is:
1 pcs
USB to serial adaptor
Partnumber: EA-PS-USB/DB9
Programming cable for E-BM-AS driver
Partnumber: EC-PS-DB9/RJ45
Brand Name
Atos

Current max.
2.5 A

Current type
DC

Height
99 mm

Length
113.6 mm

Model code
E-BM-AS-PS-01H

Number of LED's
4

Output signal max.
2700 mA

Output signal min.
0 mA

Power W
50 W

Supply voltage max.
32 V

Supply voltage min.
20 V

Temperature max.
+60 °C

Temperature min.
-20 °C

Width
22.6 mm
Package size
0 pcs

Barcode
5704334111887

Gross weight
0,23 Kg

Net weight
0,23 Kg

Country of origin
ITA

Intrastat code
84812010

The E-BM-AS digital driver converts a refence signal to a current signal stroking a proportional spool correspondingly. To be used with Atos proportional valves with 1 solenoid without integrated driver and feedback. The setup is performed by software installed on a connected PC ( the software is free available from the Atos webpage). The reference signal is selectable to be either a voltage signal (±10V) or a current signal (4-20mA).
