Weld plate - DIN 1 Double (2) - Stainless
Svejseplade dobbelt (2) - DIN 1 - Rustfri - DSP-1A-W5
Partnumber:
DSP1A/71
Package size:
0 pcs
Min. order quantity is:
1 pcs

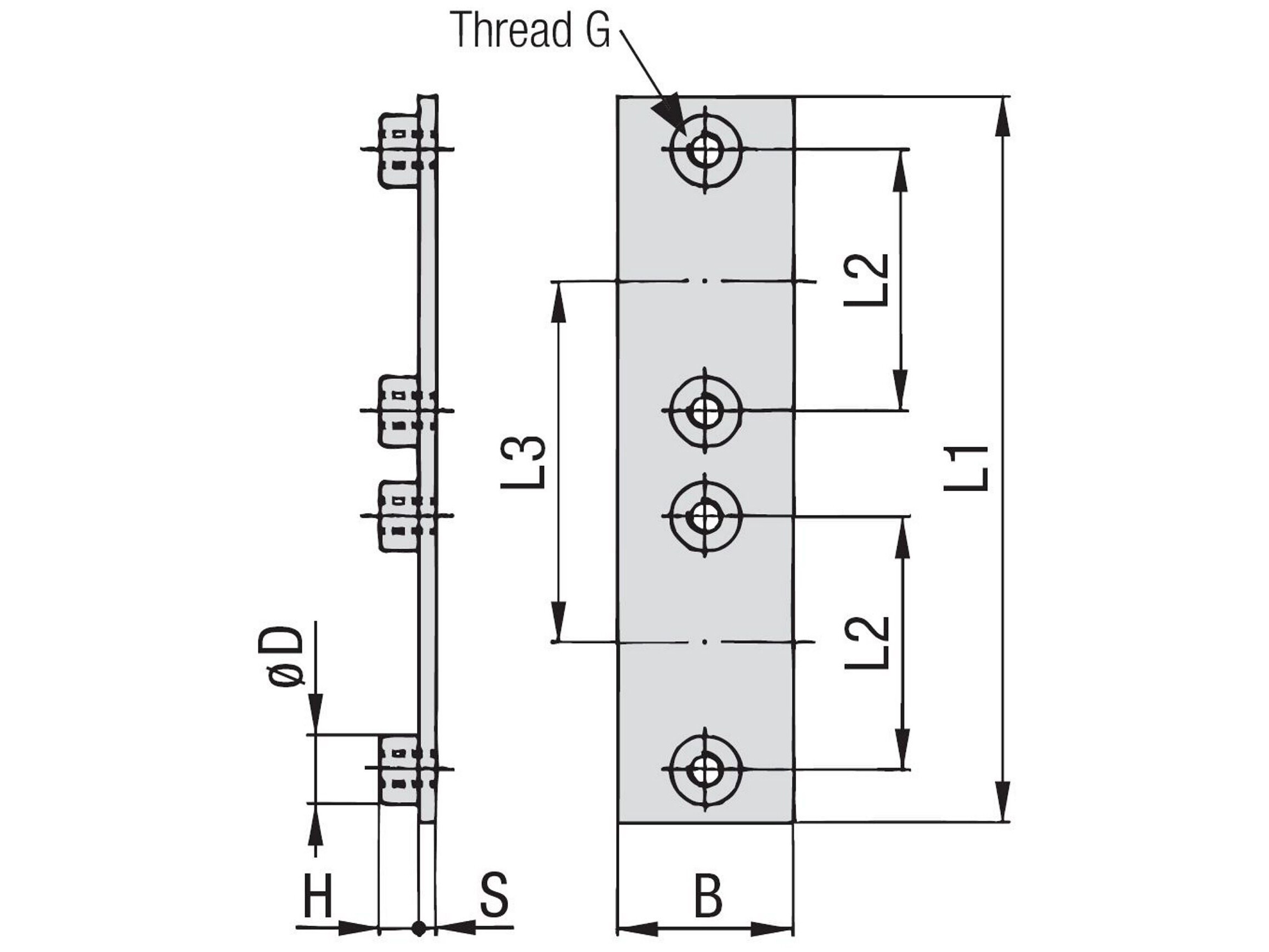

B
30 mm
Brand Name
Stauff
D
12 mm
DIN size
1
Group Stauff
1
H
6,5 mm
L1
77 mm
L2
20 mm
L3
37 mm
Length
77 mm
Material
Stainless steel
Material quality
1.4571 / AISI316Ti
Model code
DSP-1A-W5
Number of bolts
4
Number of clamps
2
S
3 mm
Standard DIN
DIN 3015 part 1
Width
30 mm
Package size
0 pcs
Barcode
5704295402031
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
DEU
Intrastat code
39259010
Svejseplade dobbelt (2) - DIN 1 - Rustfri - DSP-1A-W5
