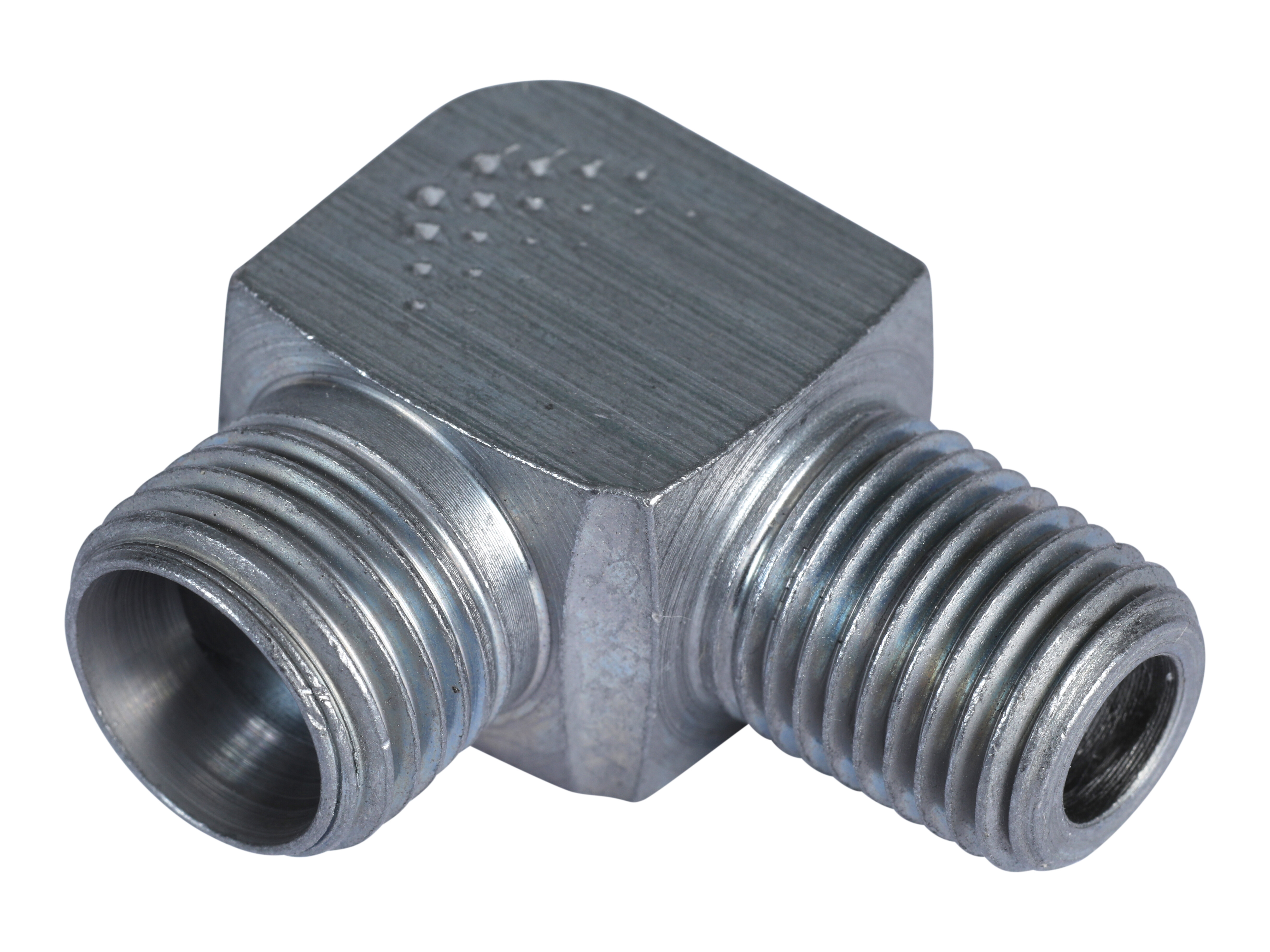

Stud elbow 90° - ø10L x 1/4" NPT

Partnumber:

B10LNPTX

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (2)

D10L cutting ring ø10

Partnumber: DS10L

M10L nut ø10 M16x1,5

Partnumber: M10L

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

Gates

Corrosion resistance

1200 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Material

Steel

Model code

XB10LNZN

Pressure max.

315 bar

REACH compliant

Yes

RoHs compliant

Yes

Safety factor

Series

Surface treatment

Zinc-Nickel plated

Temperature max.

+120 °C

Temperature min.

-40 °C

Thread outer

1/4 NPT

Thread outer metric

M16x1,5

Type

Profiled

Package size

0 pcs

Barcode

5704295380476

Gross weight

0,06 Kg

Net weight

0,06 Kg

Country of origin

DEU

Intrastat code

73071110

Product information

Stud elbow 90° - ø10L x 1/4" NPT
