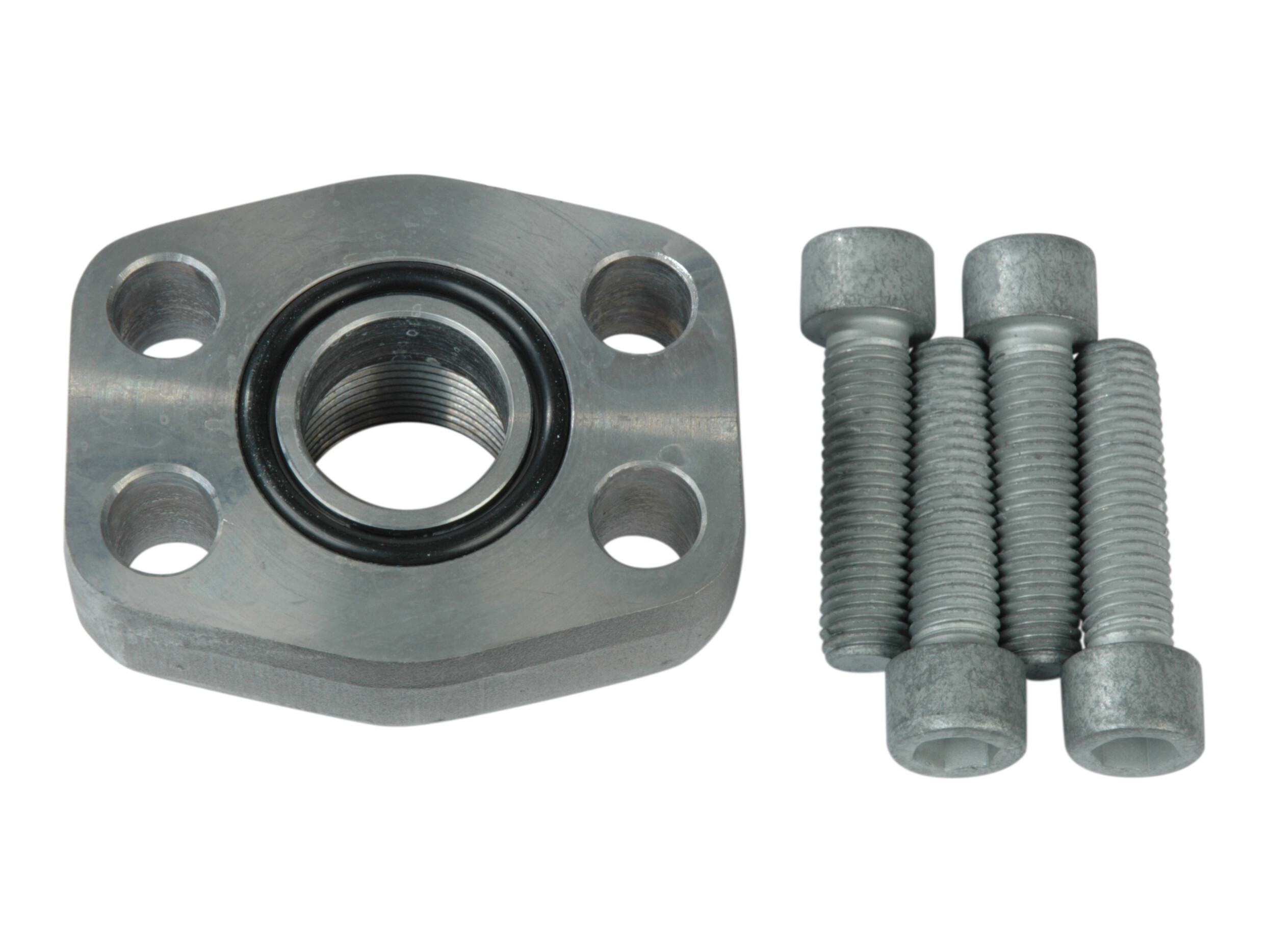

Threaded flange 1" SAE6000 x 1" BSP - complete
Threaded flange 1" SAE6000 x 1" BSP - complete
Varenummer:
AFS403GM
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Bolt dimension
M12x45 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
47.6 mm
Dimension C
57.2 mm
Dimension E
27.8 mm
Flange
1 "
Flange SAE/DIN
6000 PSI
Material
Steel
Number of bolts
4
O-ring
32.93X3.53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zinc-Nickel plated
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1 BSP
Pakke str.
0 pcs
Stregkode
5704295921471
Brutto vægt
0,81 Kg
Netto vægt
0,81 Kg
Oprindelsesland
DEU
Intrastat varekode
73079100
Threaded flange 1" SAE6000 x 1" BSP - complete
