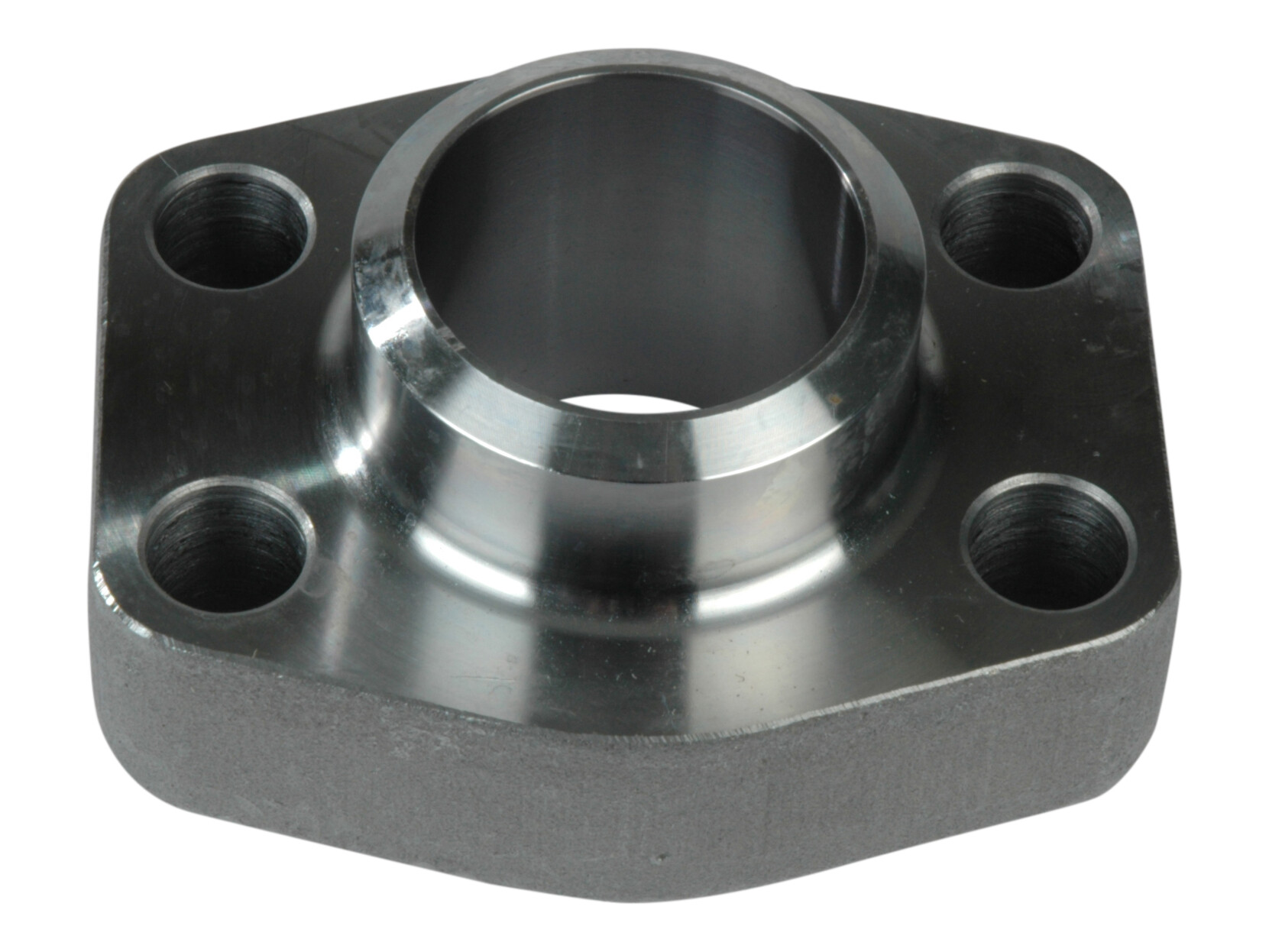

Butt weld flange 1.1/2" SAE3000
Butt weld flange 1.1/2" SAE3000
Varenummer:
AFS106ST
Pakkestr.:
0 pcs
Min. bestillingsmengde er:
1 pcs
A
48,6 mm
Angle
0 °
B
38 mm
Bolt dimension
M12x45 mm
Brand Name
Havit
C
69,9 mm
D
93 mm
Diameter flange
60.3 mm
E
35,7 mm
F
78 mm
Flange
1.1/2 "
Flange SAE/DIN
3000 PSI
G
44 mm
H
25 mm
L
13,5 mm
M
M12x45
Material
Steel
O-ring
47,22X3,53 mm
Pressure max.
210 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Pakkestr.
0 pcs
Strekkode
5704295363165
Bruttovekt
1,05 Kg
Nettovekt
1,05 Kg
Opprinnelsesland
DEU
Intrastat produktkode
73079100
Butt weld flange 1.1/2" SAE3000
