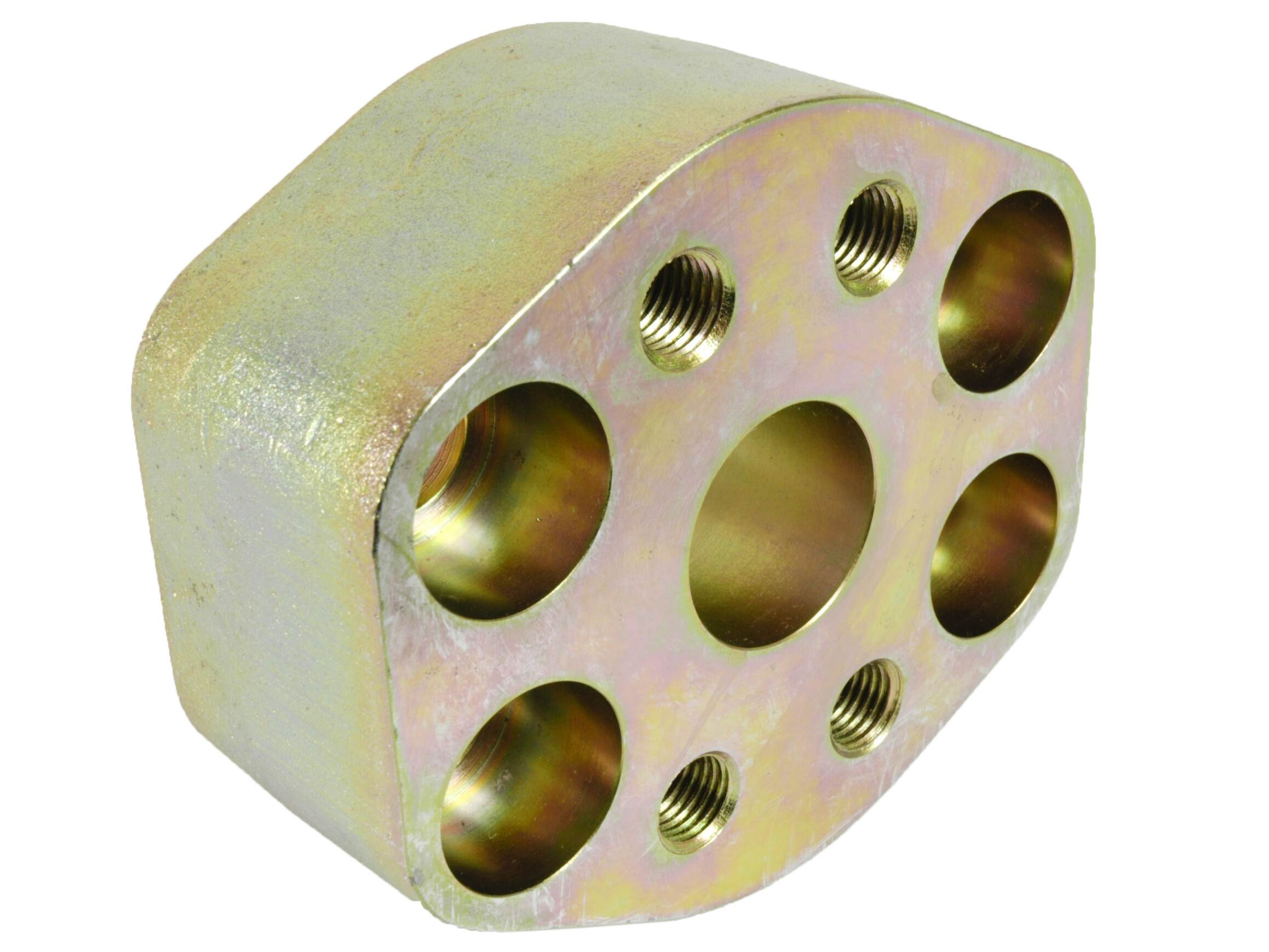

Reduktions flange 2" x 1.1/2" SAE6000
Reduktions flange 2" x 1.1/2" SAE6000
Partnumber:
GAF606/605
Package size:
0 stk
Min. order quantity is:
1 stk
Bolt dimension
M20x60 mm
Brand Name
Havit
C1
96,82 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
E1
44,45 mm
E2
36,5 mm
Flange
1.1/2, 2 "
Flange SAE/DIN
6000 PSI
Material
Stål
Number of bolts
8
O-ring
47,22X3,53;56,75X3,53 mm
Pressure max.
420 bar
Shore
90
Standard ISO
ISO 6162-2
Standard SAE
SAE J518 Code 62
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread of bolt metric
M16
Package size
0 stk
Barcode
5704295990347
Gross weight
5,30 Kg
Net weight
5,30 Kg
Country of origin
DEU
Intrastat code
73079100
Reduktions flange 2" x 1.1/2" SAE6000
