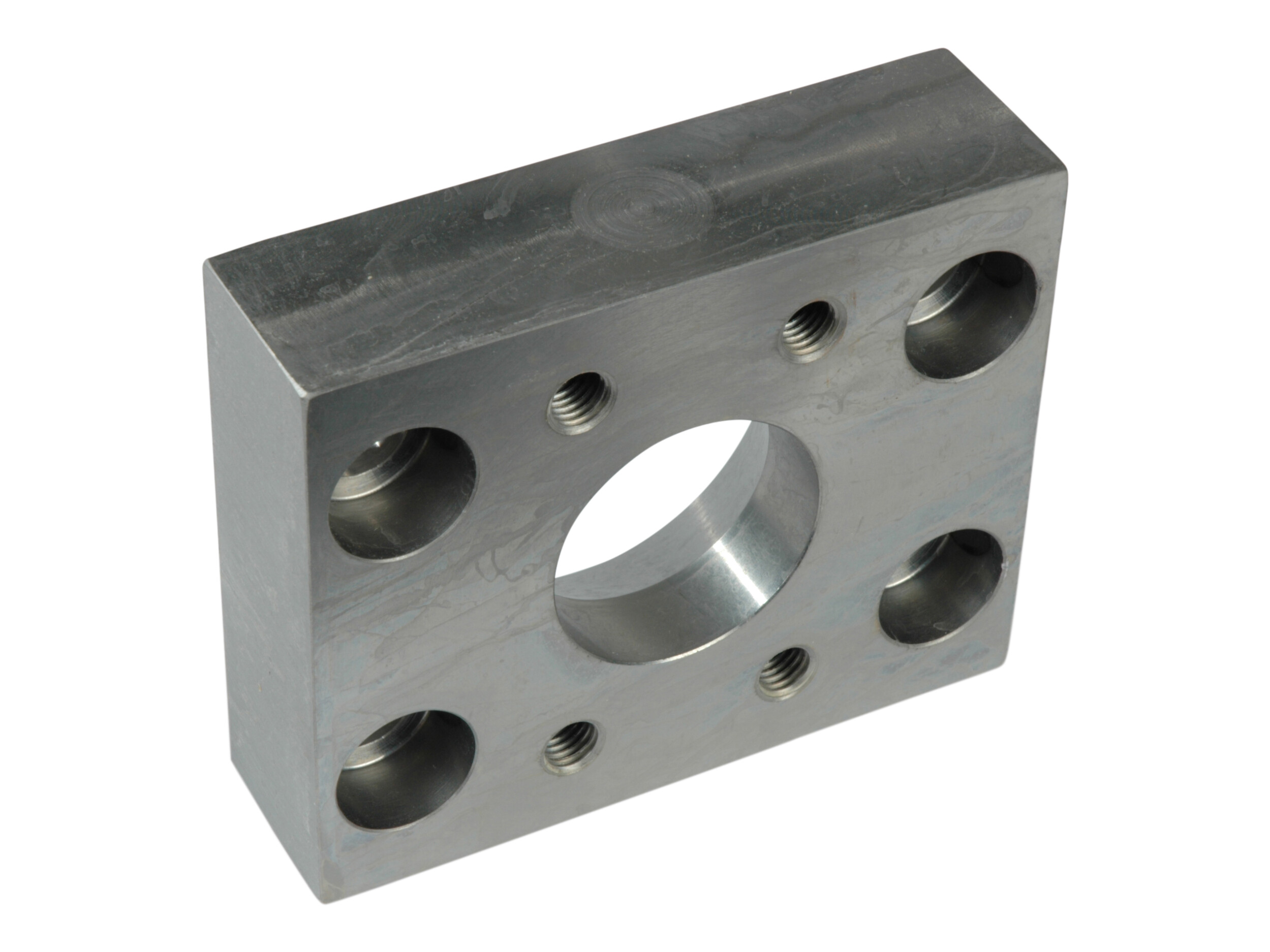

Reduktions flange 3" x 2.1/2" SAE3000
Reduktions flange 3" x 2.1/2" SAE3000
Varenummer:
GAF308/307
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Bolt dimension
M16x50 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Dimension C1
106.4 mm
Dimension E1
61.9 mm
Dimension E2
50.8 mm
Flange
2.1/2, 3 "
Flange SAE/DIN
3000 PSI
Material
Stål
Number of bolts
8
O-ring
69,44X3,53; 85,32x3,53 mm
Pressure max.
160 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread of bolt metric
M12
Förpackningsstorlek
0 pcs
Streckkod
5704295988849
Bruttovikt
5,00 Kg
Nettovikt
5,00 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Reduktions flange 3" x 2.1/2" SAE3000
