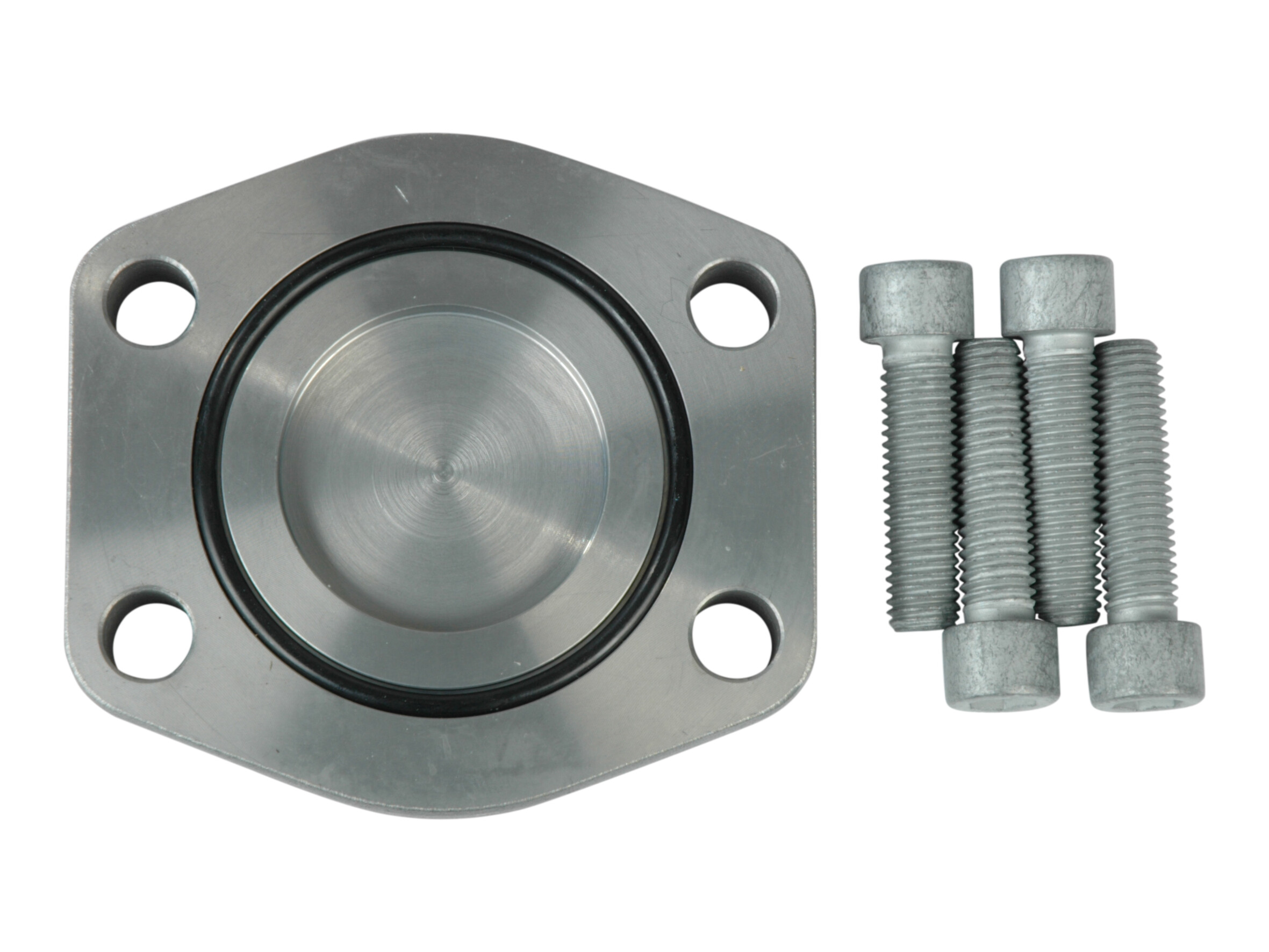

Closed flange 2.1/2" SAE3000 - complete

Varenummer:

AFC110M

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Antal bolte

Bolt dimension

M12x45 mm

88,9 mm

Diameter flange

84.1 mm

50,8 mm

Flange

2.1/2 "

Flange SAE/DIN

3000 PSI

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Steel

Mærke navn

Havit

O-ring

69,44X3,53 mm

Overfladebehandling

Zinc-Nickel plated

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

175 bar

Package size

0 pcs

Barcode

5704334134435

Gross weight

0,90 Kg

Net weight

0,90 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Closed flange 2.1/2" SAE3000 - complete
