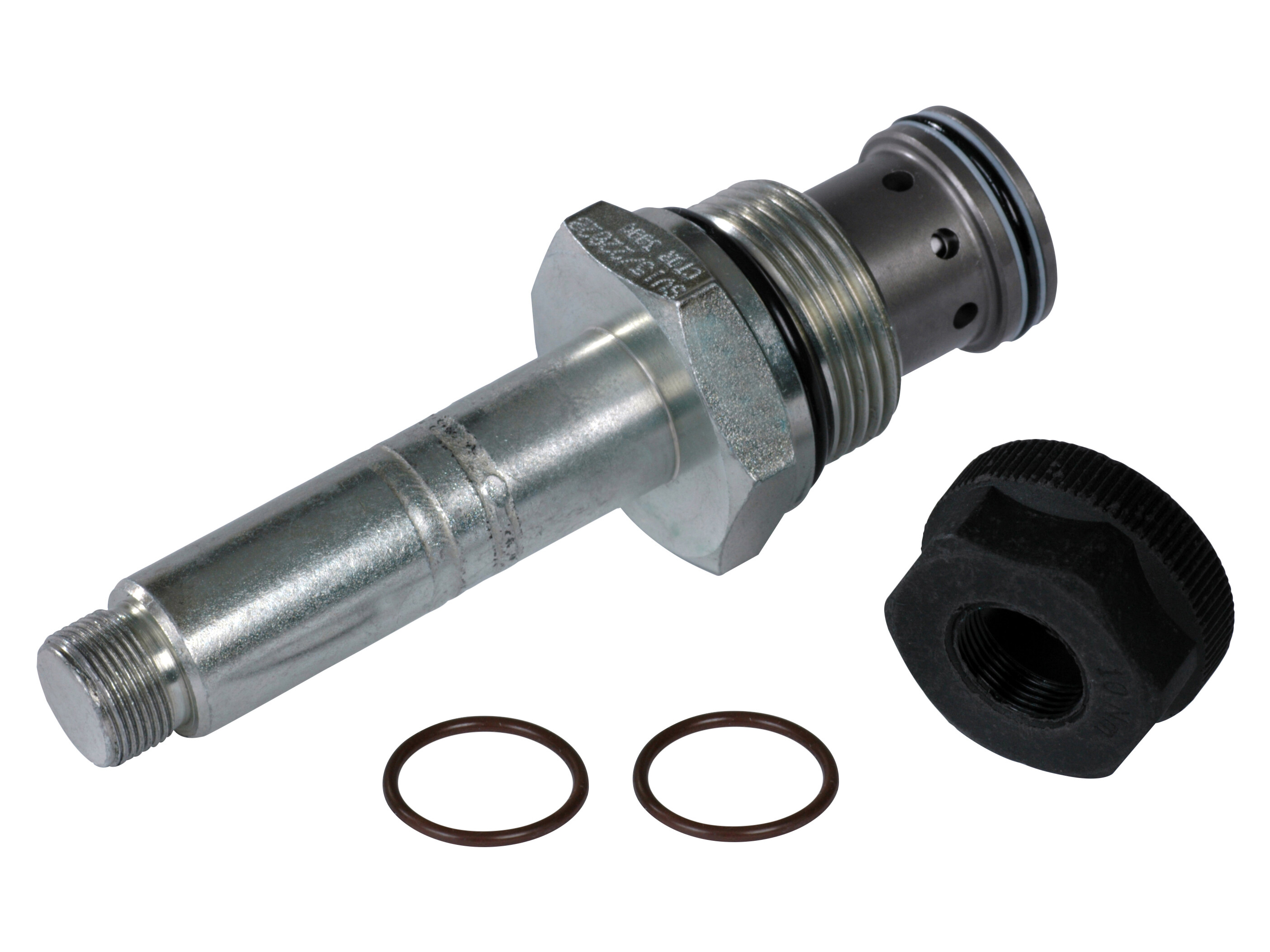

Solenoid Valve 2/2 60l/m NC SV15-22-02-00-00-B-00
This is a 2-way, 2-position, spool type, normally closed solenoid valve. In its de-energized condition, flow is blocked in both directions. When energized, flow can take place from port 2 to 1 and from 1 to 2.
The valve will be subject to normal spool leakage dependent on the pressure difference between the ports. These valves can be used to interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition.
Varenummer:
83020920
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Activation
Solenoid
Brand Name
Danfoss
Cavity
NCS12/2
Contamination level max.
20/18/14 - ISO 4406
Filter built-in
No
Flow rate nominal LMin
60 lpm
Manual operated
No
Model code
SV15-22-02-00-00-B-00
Number of ways/positions
2/2
Oil viscocity recommended
12 - 54 cSt
Pressure max.
230 bar
Sealing material
NBR
Solenoidtype
M19
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
65 - 70 Nm
Valve type
NC - Normally closed
Pakke str.
0 pcs
Stregkode
5704334465553
Brutto vægt
0,42 Kg
Netto vægt
0,42 Kg
Oprindelsesland
ITA
Intrastat varekode
85051990
This is a 2-way, 2-position, spool type, normally closed solenoid valve. In its de-energized condition, flow is blocked in both directions. When energized, flow can take place from port 2 to 1 and from 1 to 2.
The valve will be subject to normal spool leakage dependent on the pressure difference between the ports. These valves can be used to interrupt a pressure line where flow is expected to pass in both directions in the de-energized condition.
