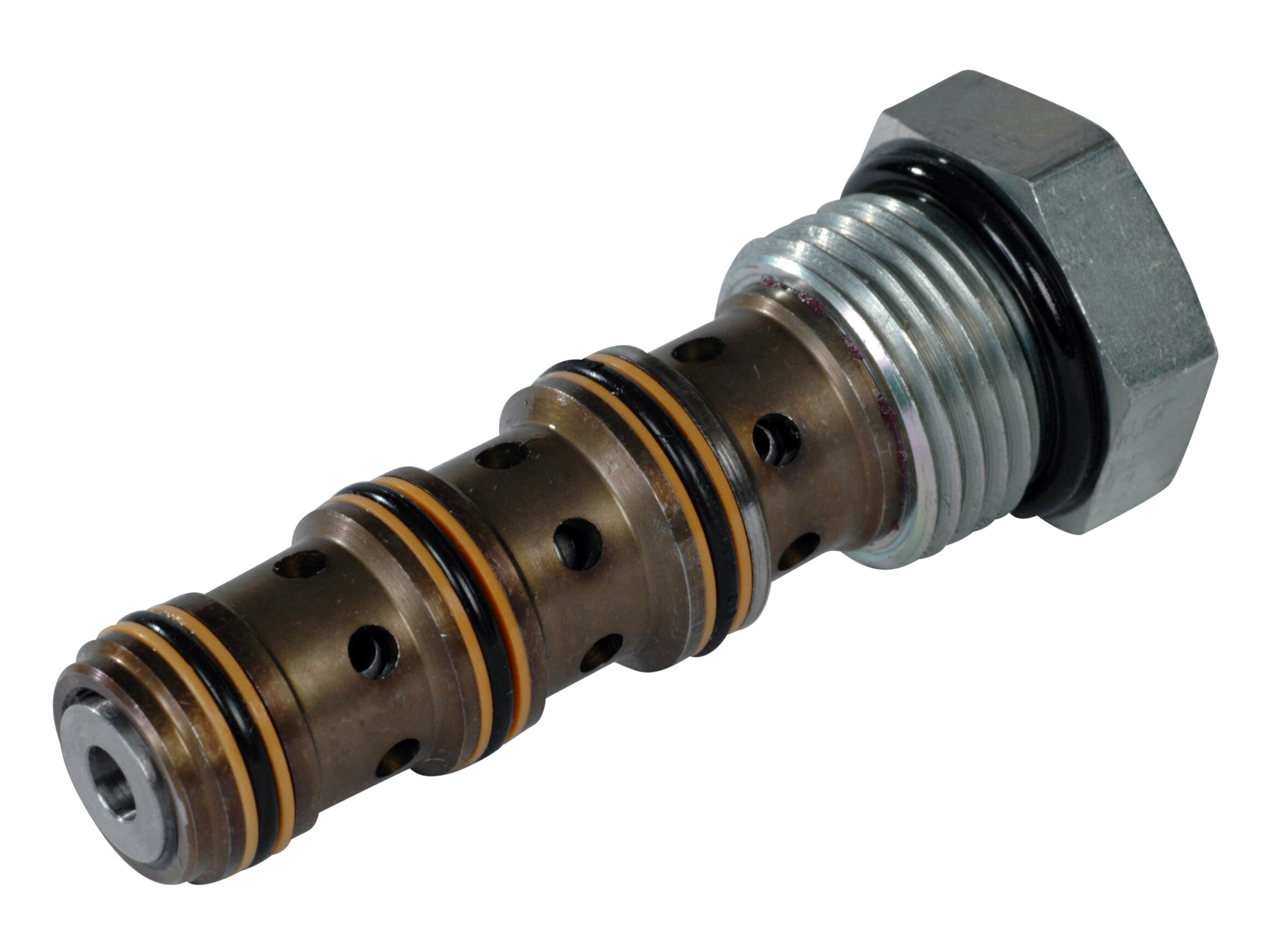

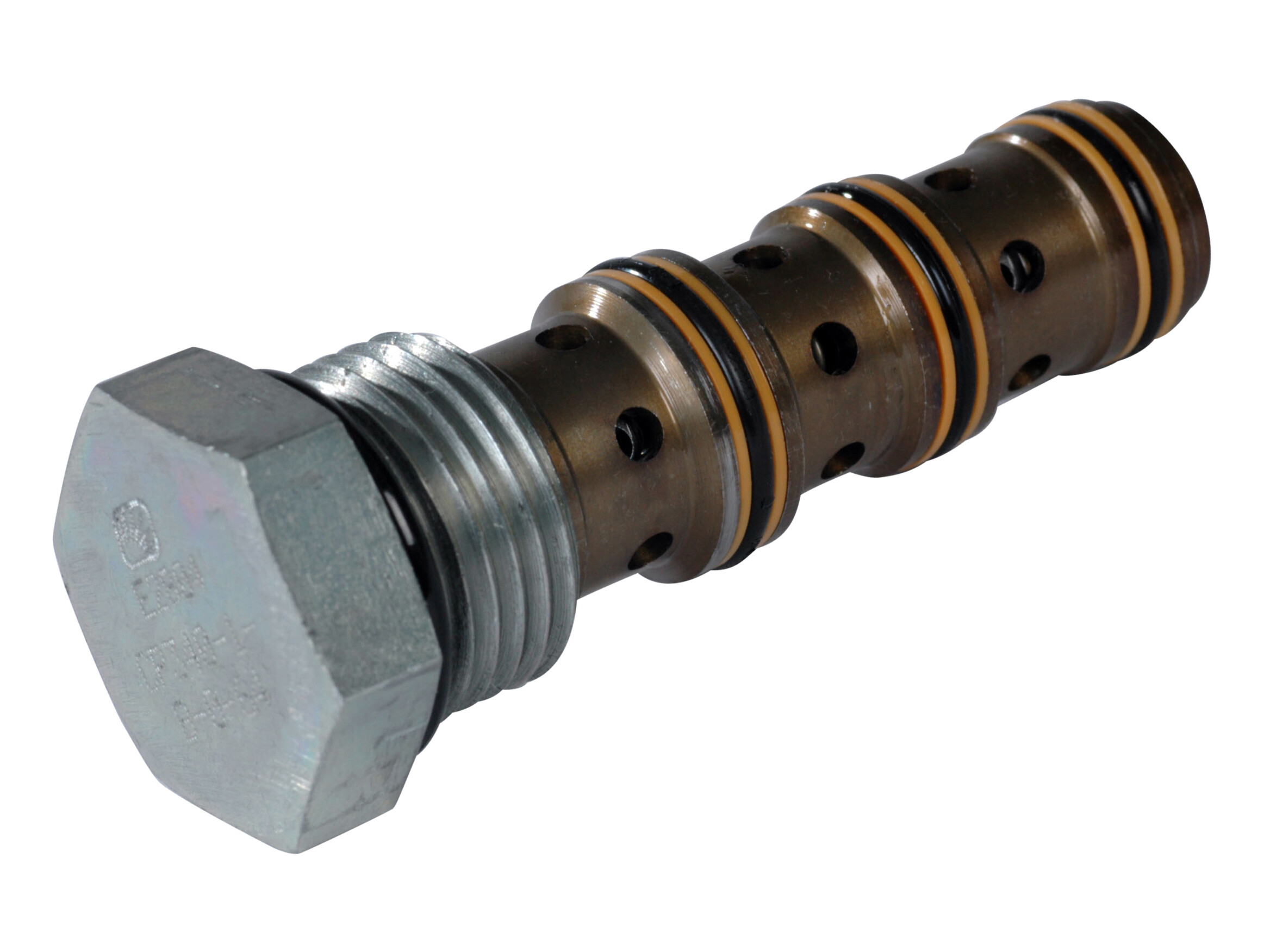

Flow Divider ventil 38l/m 3:2 CP340-1-B-0-64
This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve. The CP340-1S provides synchronizing flow to the opposite port in the event that one port is completely blocked.
Artikelnummer:
83007409
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Cavity
SDC10-4
Flow Nominel
45 lpm
Flow maks. reguleret
38 lpm
Flow min. reguleret
38 lpm
Forureningsgrad maks.
20/18/14 - ISO 4406
Model kode
CP340-1-B-0-64
Mærke navn
Danfoss
Olieviskositet anbefalet
12 - 54 cSt
Pakningsmateriale
NBR
Temperatur maks.
+100 °C
Temperatur min.
-40 °C
Tilspændingsmoment
41 - 47 Nm
Tryk maks.
210 bar
Trykkompenseret
Yes
Förpackningsstorlek
0 pcs
Streckkod
5704334468202
Bruttovikt
0,11 Kg
Nettovikt
0,11 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
This is a fixed ratio flow divider/combiner valve.
In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.
In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve. The CP340-1S provides synchronizing flow to the opposite port in the event that one port is completely blocked.
