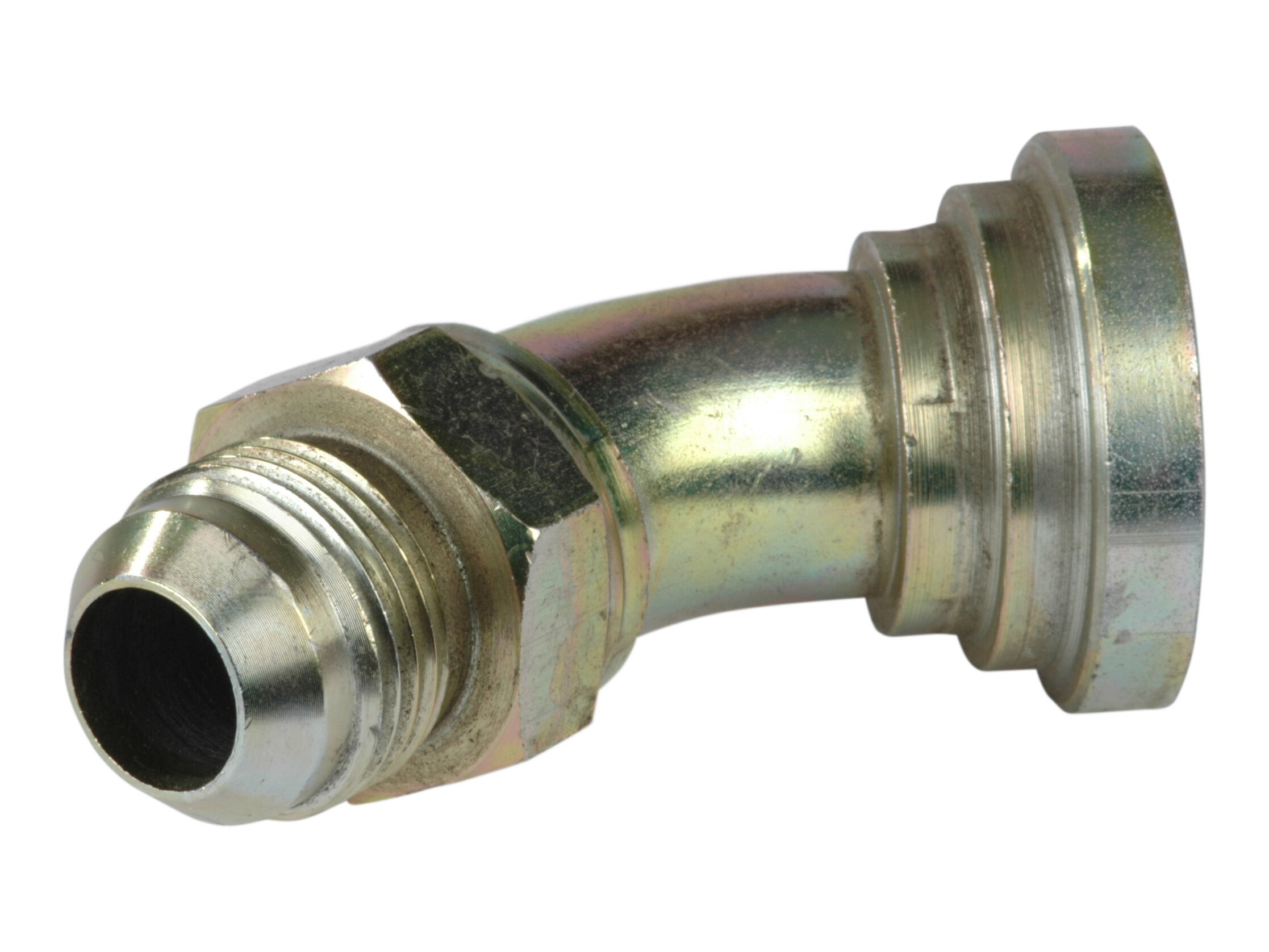

Elbow 1.1/16 JICx1 flange 45 °.
Bøjning 1.1/16 JICx1 flange 45gr.
Partnumber:
26PA1216
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
45 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension A
52.37 mm
Dimension B
26.19 mm
Dimension I
42 mm
Dimension T
20 mm
Dimension l1
36 mm
Flange
1 "
Flange SAE/DIN
3000 PSI
Material
Steel
Pressure max.
300 bar
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Electro zinc plated
Thread outer
1.1/16-12 JIC
Pakke str.
0 pcs
Stregkode
5704295991306
Brutto vægt
0,29 Kg
Netto vægt
0,29 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
Bøjning 1.1/16 JICx1 flange 45gr.
