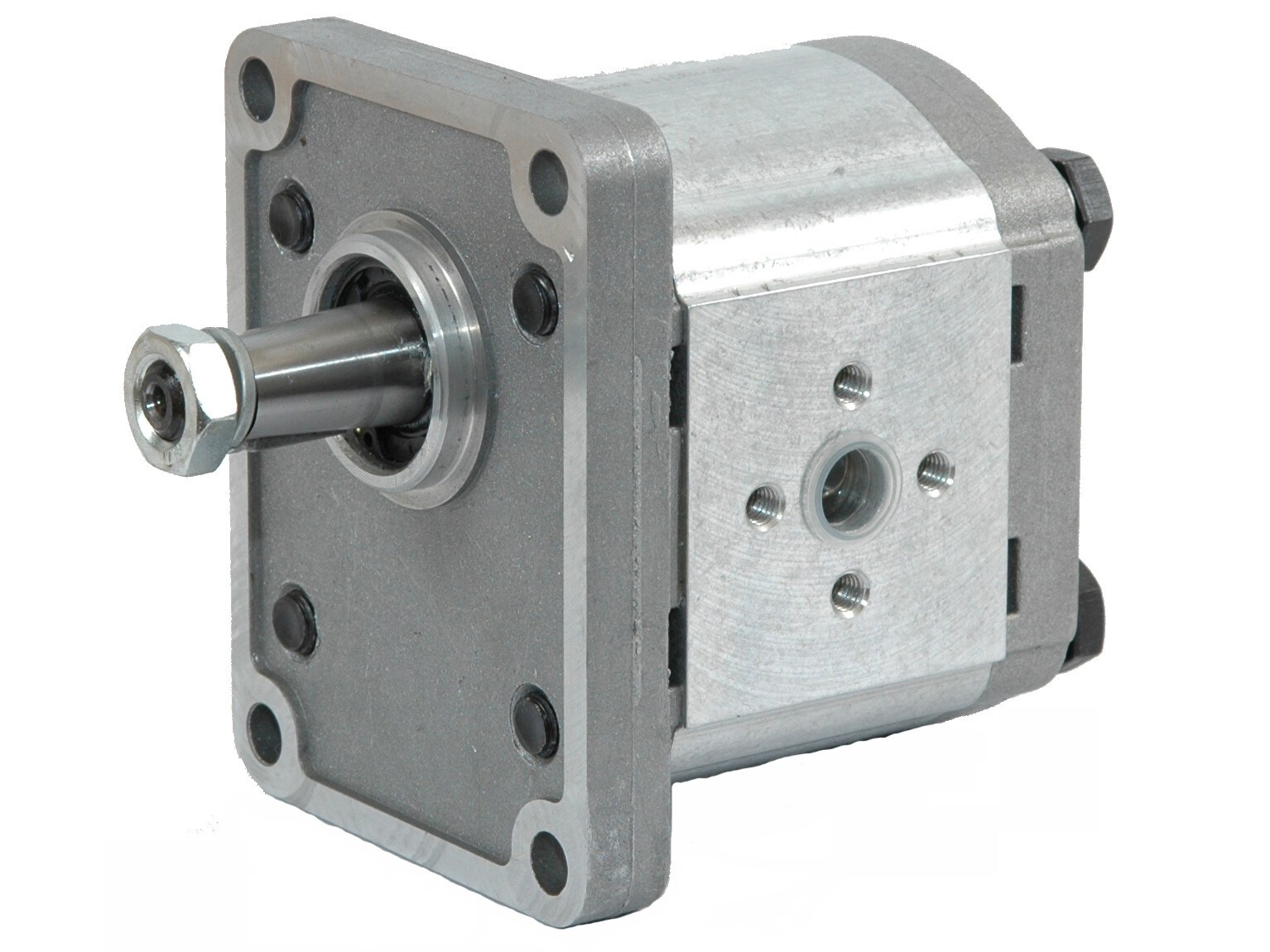

Gear pump Casappa Grp2 7.29ccm 1:8 shaft - Right
Casappa Polaris, series 2 gear pump..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
Artikelnummer:
20.07.2D
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Displacement
7.29 cm3
Model code
PLP20.7,2D0-82E2-LEA/EA-N-EL-FS
Mounting flange
EU37 - 96x72
Number of mounting holes
4
Oil viscocity recommended
12 - 100 cSt
Port inlet
EU30
Port outlet
EU30
Pressure continous max.
250 bar
Pressure intermittent max.
280 bar
Pump group
2
Recess
37,0 mm
Rotation direction
Right (CW)
Rotational speed max.
4000 rpm
Shaft cone
1:8
Shaft keyway
3,2 mm
Shaft type
Tapered
Torque input
14 daNm
Förpackningsstorlek
0 pcs
Streckkod
5704295808222
Bruttovikt
2,33 Kg
Nettovikt
2,33 Kg
Ursprungsland
ITA
Intrastat artikelkod
84136031
Casappa Polaris, series 2 gear pump..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
