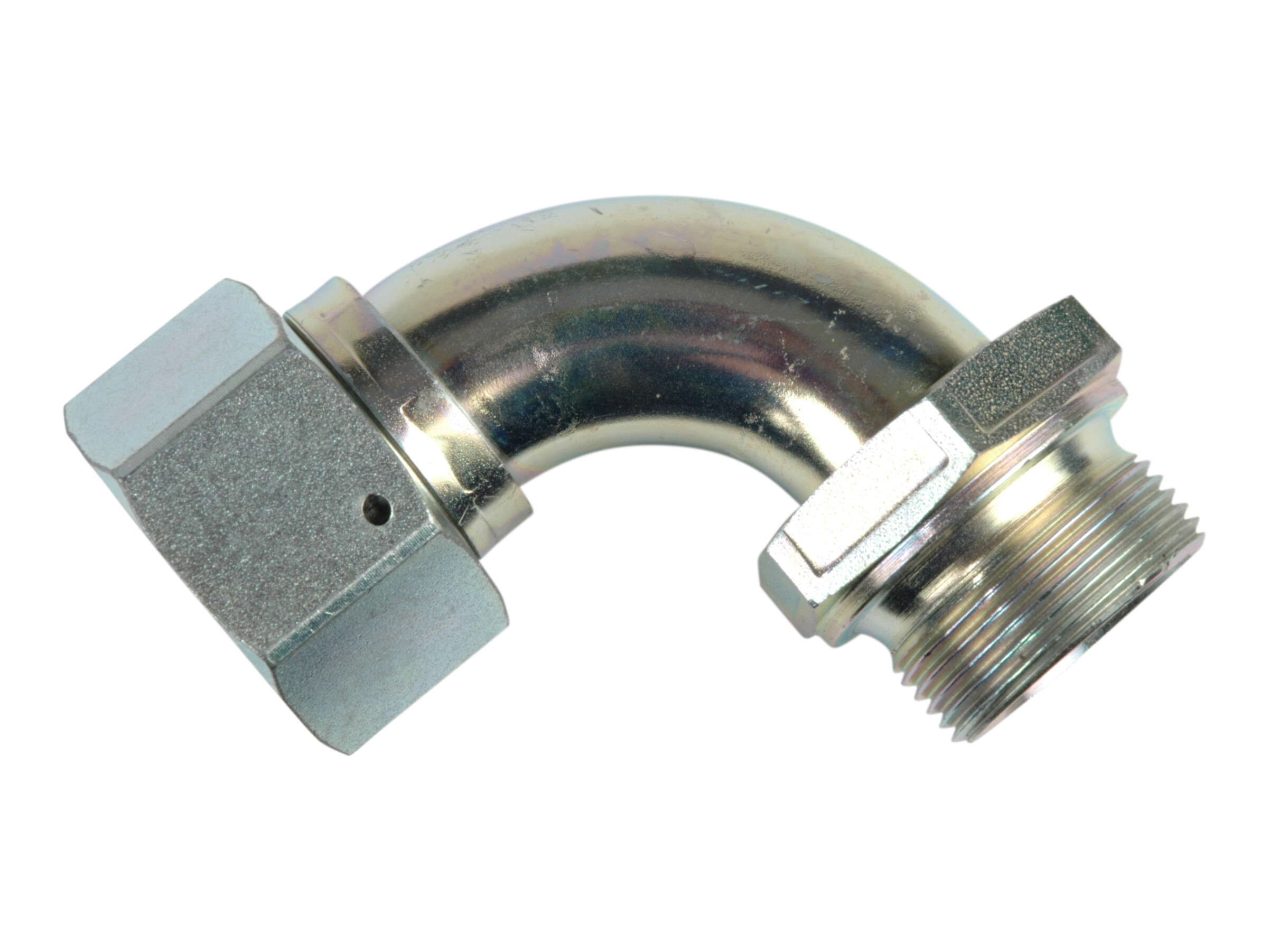

Elbow 1.1/4 BSP

Bøjning 1.1/4 BSP

Partnumber:

16BP20L

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

I.M.M Hydraulics

CH1

50 mm

CH3

50 mm

G 1.1/4 BSP

71 mm

76 mm

Material

Steel

Model code

2550-20-20

Pressure max.

160 bar

Surface treatment

Electro zinc plated

Thread inner

G 1.1/4 BSP

Thread outer

G 1.1/4 BSP

Ø tube

32 mm mm

Package size

0 pcs

Barcode

5704295489926

Gross weight

0,71 Kg

Net weight

0,71 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Bøjning 1.1/4 BSP
