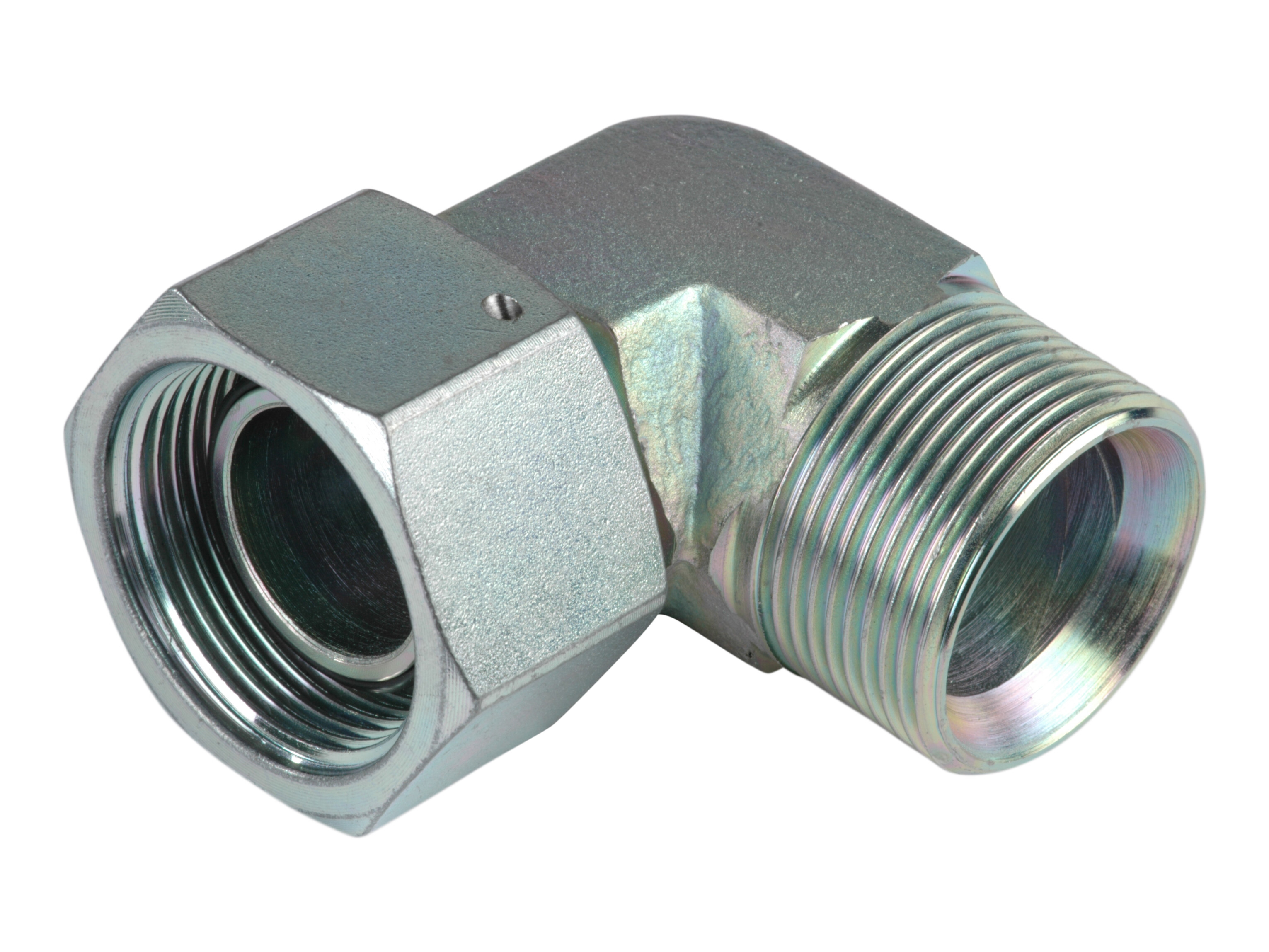

Elbow 1.1/4 BSP Cast version

Angle nipple 90° sk-uk BSP cast

Internal taper 60° on male thread
Internal taper 60° on female thread
ISO 8434-6

Partnumber:

16BP20

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

I.M.M Hydraulics

CH1

41 mm

CH3

50 mm

G 1.1/4 BSP

49 mm

52 mm

Material

Steel

Model code

4500-20

Pressure max.

160 bar

Surface treatment

Electro zinc plated

Thread inner

G 1.1/4 BSP

Thread outer

G 1.1/4 BSP

Ø tube

32 mm mm

Package size

0 pcs

Barcode

5704334023760

Gross weight

0,67 Kg

Net weight

0,67 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Angle nipple 90° sk-uk BSP cast

Internal taper 60° on male thread
Internal taper 60° on female thread
ISO 8434-6
