Tee with lock-nut

T-forskruning med kontramøtrik

Partnumber:

15BPT06

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

60 °

29 mm

Brand Name

FOR

22 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

37 mm

G 3/8 BSP

Material

Steel

Pressure max.

400 bar

Sealing material

NBR

Size

10 mm

Standard ISO

ISO 1179

Surface treatment

Electro zinc plated

Temperature max.

+120 °C

Temperature min.

-20 °C

Thread outer

3/8 BSP, 3/8 BSP, 3/8 BSP

37 mm

Package size

0 pcs

Barcode

5704295978451

Gross weight

0,13 Kg

Net weight

0,13 Kg

Country of origin

ITA

Intrastat code

73071110

Product information

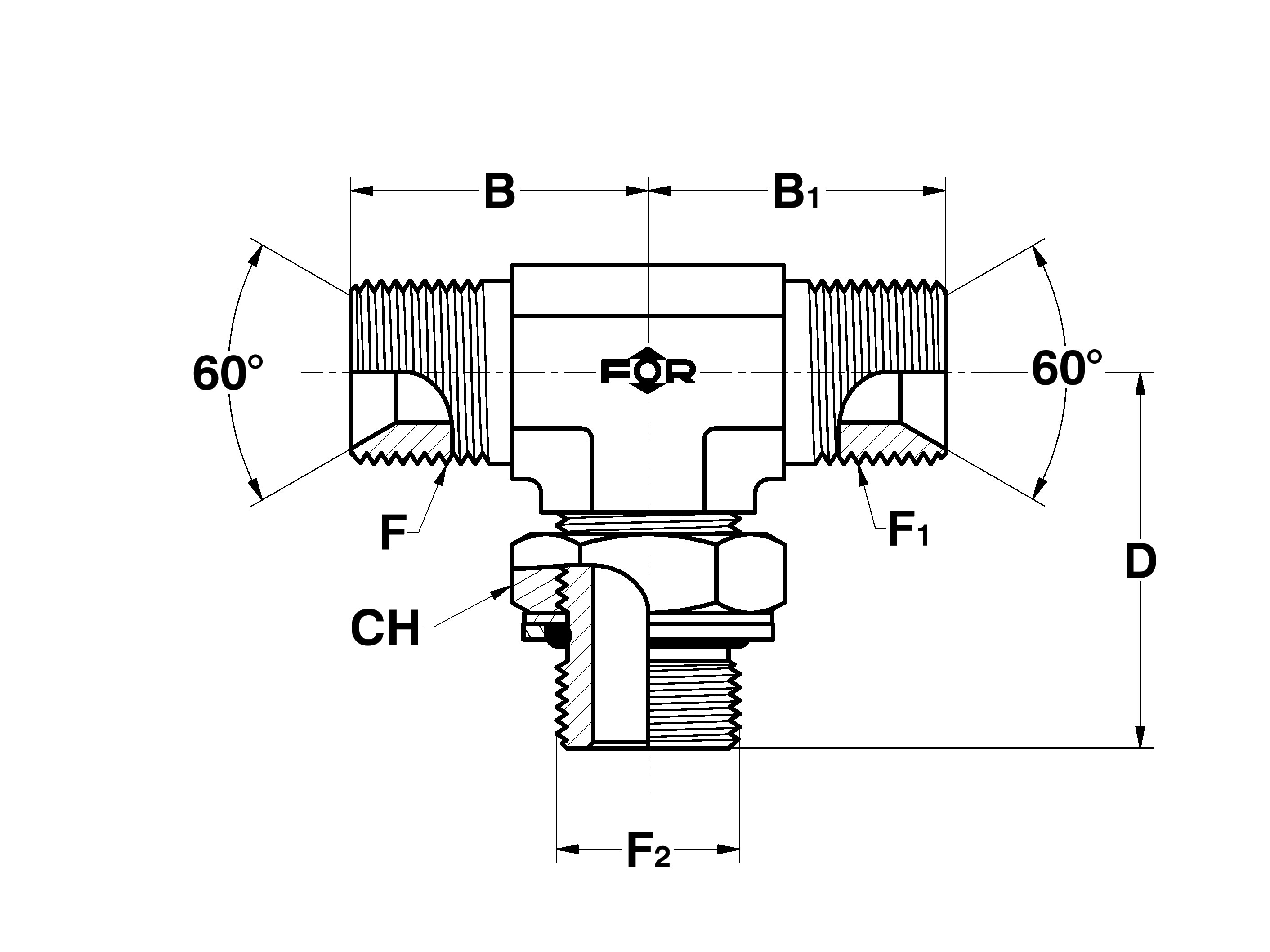

Measure sketch

T-forskruning med kontramøtrik

Note: Opening 3D files requires a program that supports the file format
