SD6/1-AG(YG3-90)/28L/RE

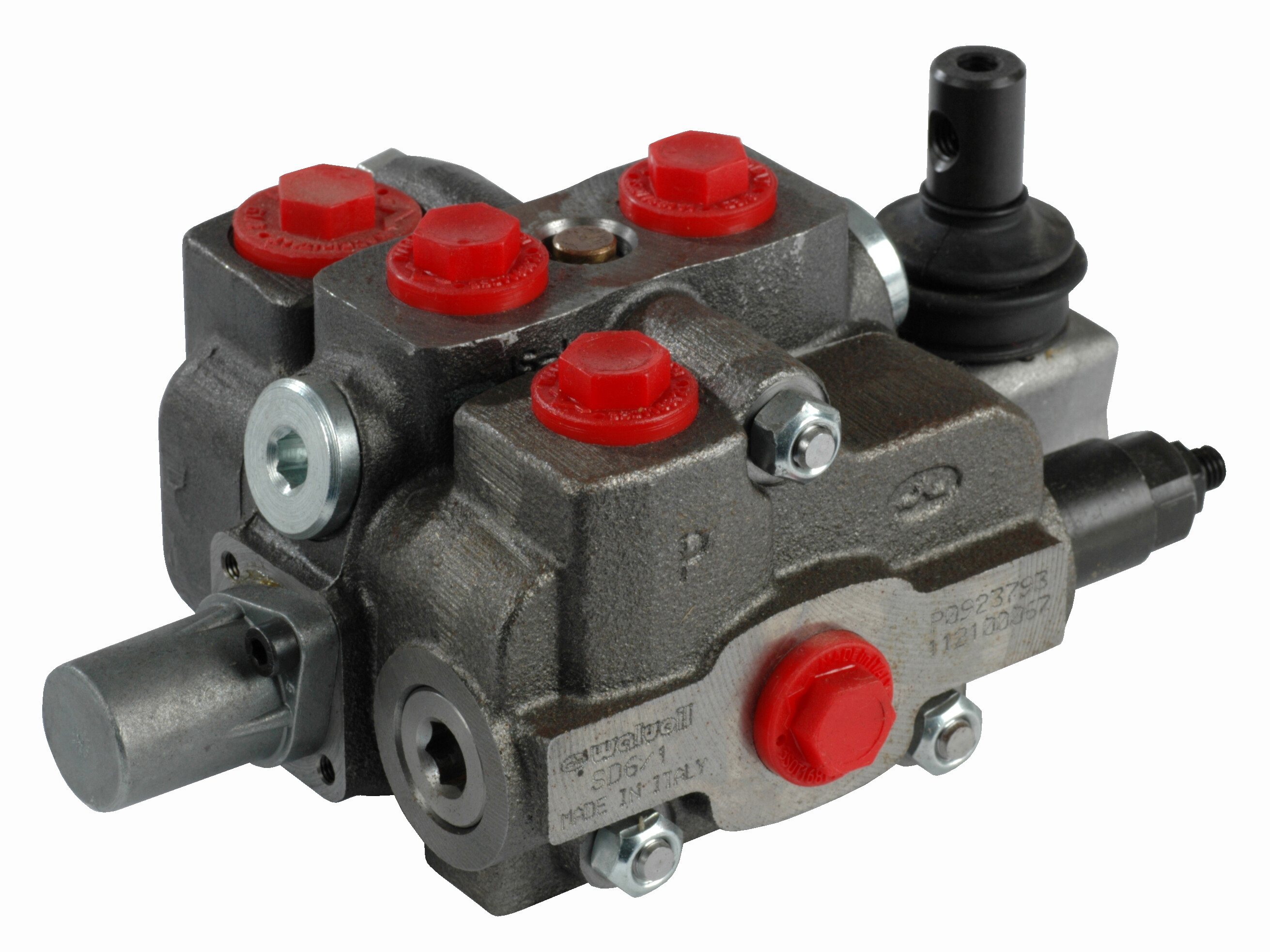

1-section SD6 sectional directional valve with built-in pressure relief valve and one spool. Manually activated

Spool function: Doubleacting, 3 position, Port A and B open to tank in neutral position, spring centered.

RE = Outlet upwards, pressure carry-over in side.

Partnumber:
112100067

Package size:
0 pcs

Min. order quantity is:
1 pcs
Spak Walvoil, M8x120mm, AL01
Partnumber: 170011012
O-ring
Partnumber: 14.00X1.78
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
45 lpm

Lever
Exclusive

Model code
SD6/1-AG(YG3-90)/28L/RE

Number of sections
1

Oil viscocity recommended
12 - 400 cSt

Port C
G 1/2 BSP

Port P
G 3/8 BSP

Port T
G 1/2 BSP

Pressure T max.
25 bar

Pressure carry-over
Yes

Pressure max.
315 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
100 bar

Working ports
G 3/8 BSP
Package size
0 pcs

Barcode
5704334069676

Gross weight
5,33 Kg

Net weight
5,33 Kg

Country of origin
ITA

Intrastat code
84812010

1-section SD6 sectional directional valve with built-in pressure relief valve and one spool. Manually activated

Spool function: Doubleacting, 3 position, Port A and B open to tank in neutral position, spring centered.

RE = Outlet upwards, pressure carry-over in side.
