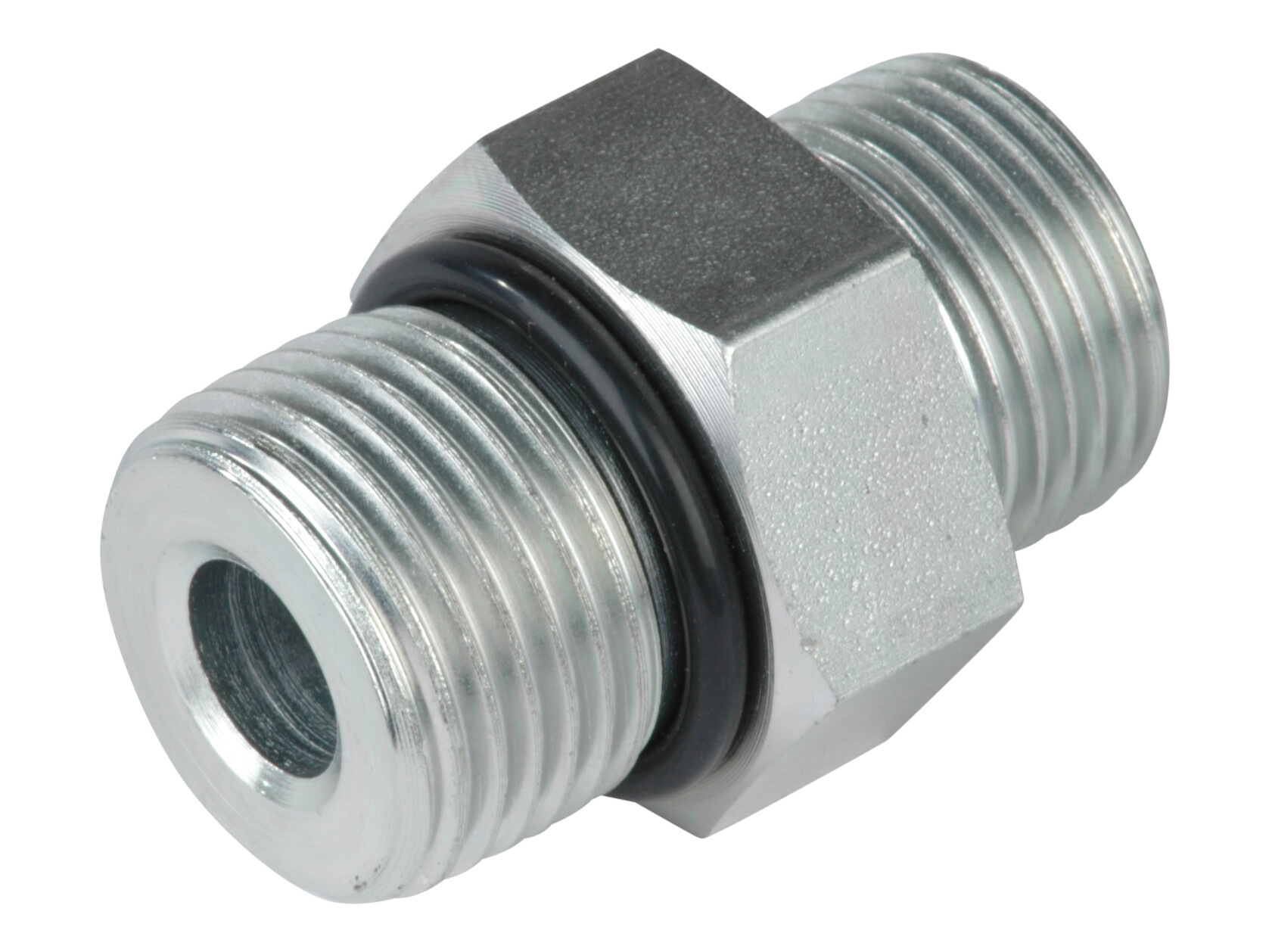

Adaptor 13/16 ORFS x 7/8 SAE

Partnumber:

103FR0810

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Dimension A

40.5 mm

Dimension B1

13 mm

Dimension CH

27 mm

Dimension D

16 mm

Gänga utv.

13/16-16 ORFS

Gänga utv.

7/8-14 UNF

Märke namn

FOR

Packningsmaterial

NBR

Rostbeständighet

1400 hours salt spray DIN EN ISO 9227

Temperatur max.

+100 °C

Temperatur min.

-35 °C

Tillverkningsmaterial

Steel

Tryck max.

420 bar

Vinkel

0 °

Ytskiktbehandling

Electro-galvanized / White chromatized

Package size

0 pcs

Barcode

5704295801803

Gross weight

0,10 Kg

Net weight

0,10 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Adaptor 13/16 ORFS x 7/8 SAE

Note: Opening 3D files requires a program that supports the file format
