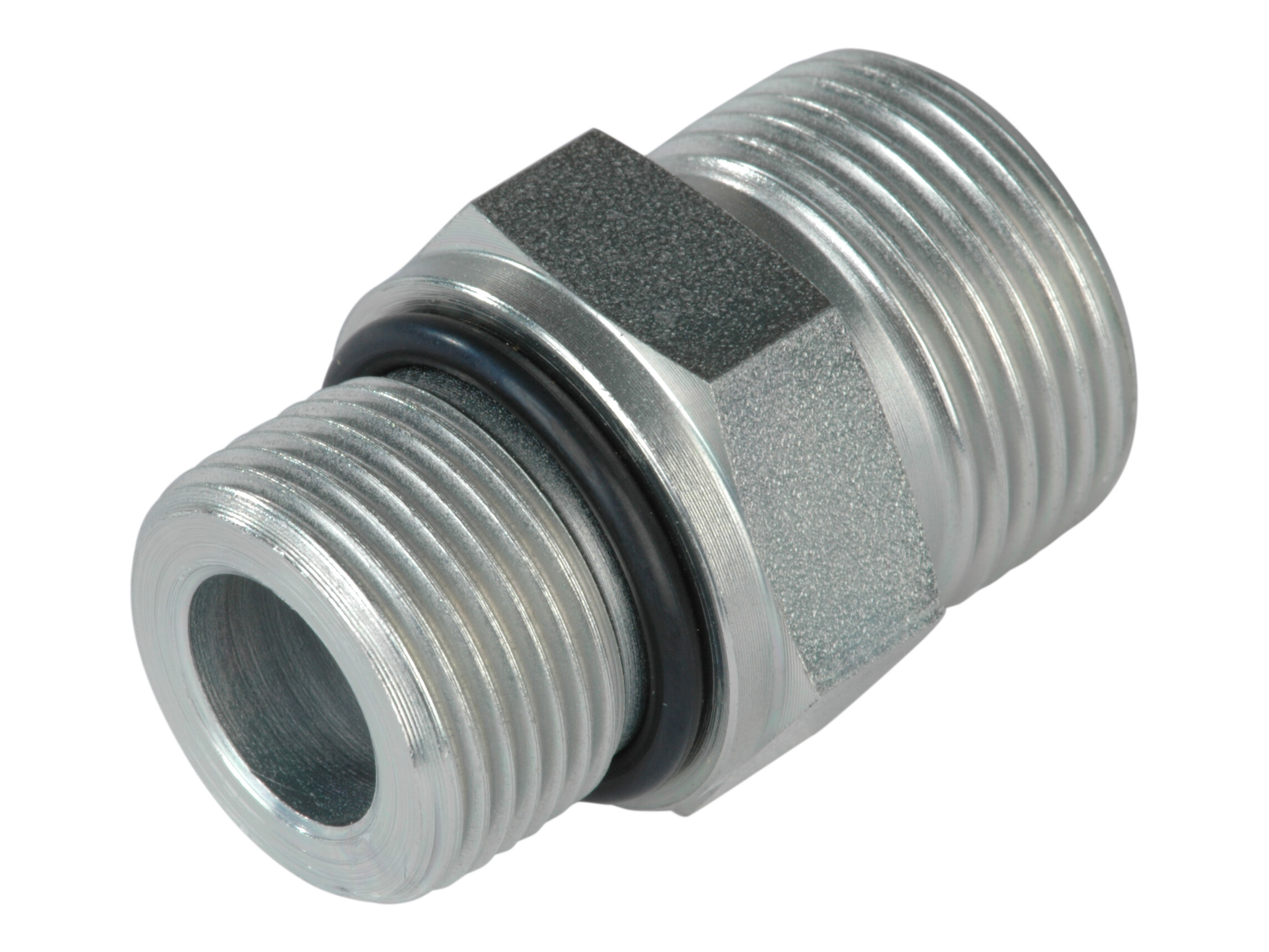

Adaptor 1 ORFS x 22mm

Nippel 1" ORFS x 22mm

Partnumber:

103FM1022

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Dimension A

42 mm

Dimension B

15.5 mm

Dimension CH

27 mm

Dimension D

15 mm

Material

Steel

Pressure max.

420 bar

Sealing material

NBR

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+100 °C

Temperature min.

-35 °C

Thread outer

1-14 ORFS

Thread outer metric

M22x1,5

Package size

0 pcs

Barcode

5704295796321

Gross weight

0,10 Kg

Net weight

0,10 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Nippel 1" ORFS x 22mm

Note: Opening 3D files requires a program that supports the file format
