PLP20.11,2D0-03S1-LGD/GDN-ELFS SAE-A with splined shaft

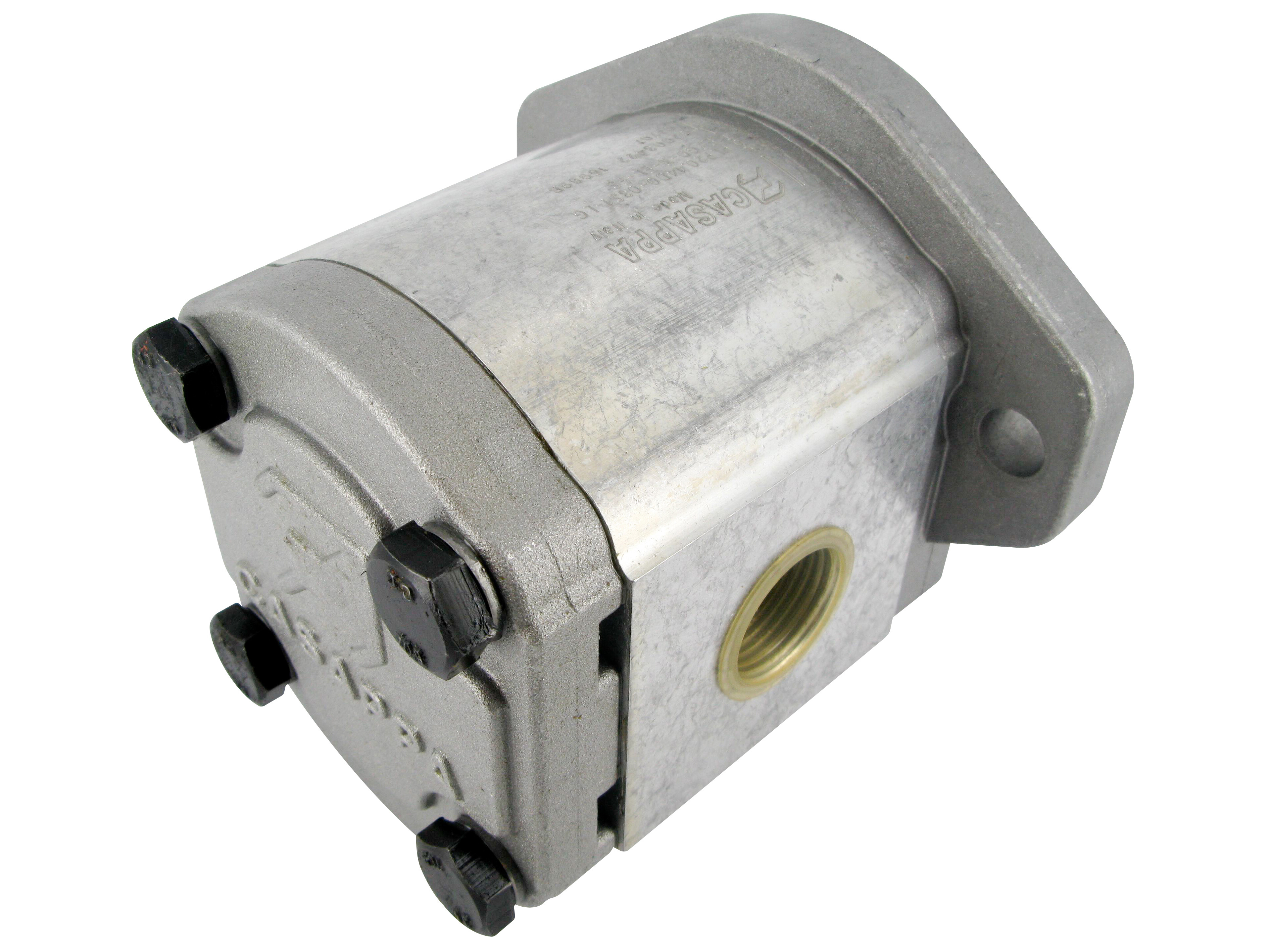

Casappa Polaris, series 2 gear pump.
Housing: Aluminium alloy.
Gear wheels supported by sleeve bearings and two end plates.
Front and the rear cover: Aluminium.
SAE-A front flange and splined shaft.
Connection flanges must be ordered separately.
Varenummer:
02003420
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Aksel diameter
15,5 mm
Aksel spline
9T 16/32 SAE-A
Akseltype
Spline
Antal montage huller
2
Boltcirkel
146 mm
Fortrængning
11.23 cm3
Forureningsgrad maks.
19/17/14 - ISO 4406
Indgang
G 1/2 BSP
Model kode
PLP20.11,2D0-03S1-LGD/GD-N-EL FS
Moment indgang
10 daNm
Monteringsflange
SAE-A2
Mærke navn
Casappa
Olieviskositet anbefalet
12 - 100 cSt
Pumpegruppe
2
Reces
101,6 mm
Rotationshastighed maks.
3500 rpm
Rotationssretning
Right (CW)
Tryk intermitterende maks.
280 bar
Tryk kontinuerligt maks.
250 bar
Udgang
G 1/2 BSP
Udvendigt splineantal
9
Pakke str.
0 pcs
Stregkode
5704295986821
Brutto vægt
2,55 Kg
Netto vægt
2,55 Kg
Oprindelsesland
ITA
Intrastat varekode
84136031
Casappa Polaris, series 2 gear pump.
Housing: Aluminium alloy.
Gear wheels supported by sleeve bearings and two end plates.
Front and the rear cover: Aluminium.
SAE-A front flange and splined shaft.
Connection flanges must be ordered separately.
