PLM20.11,2R0-82E2-LEA/EA-N-EL-DH Polaris motor

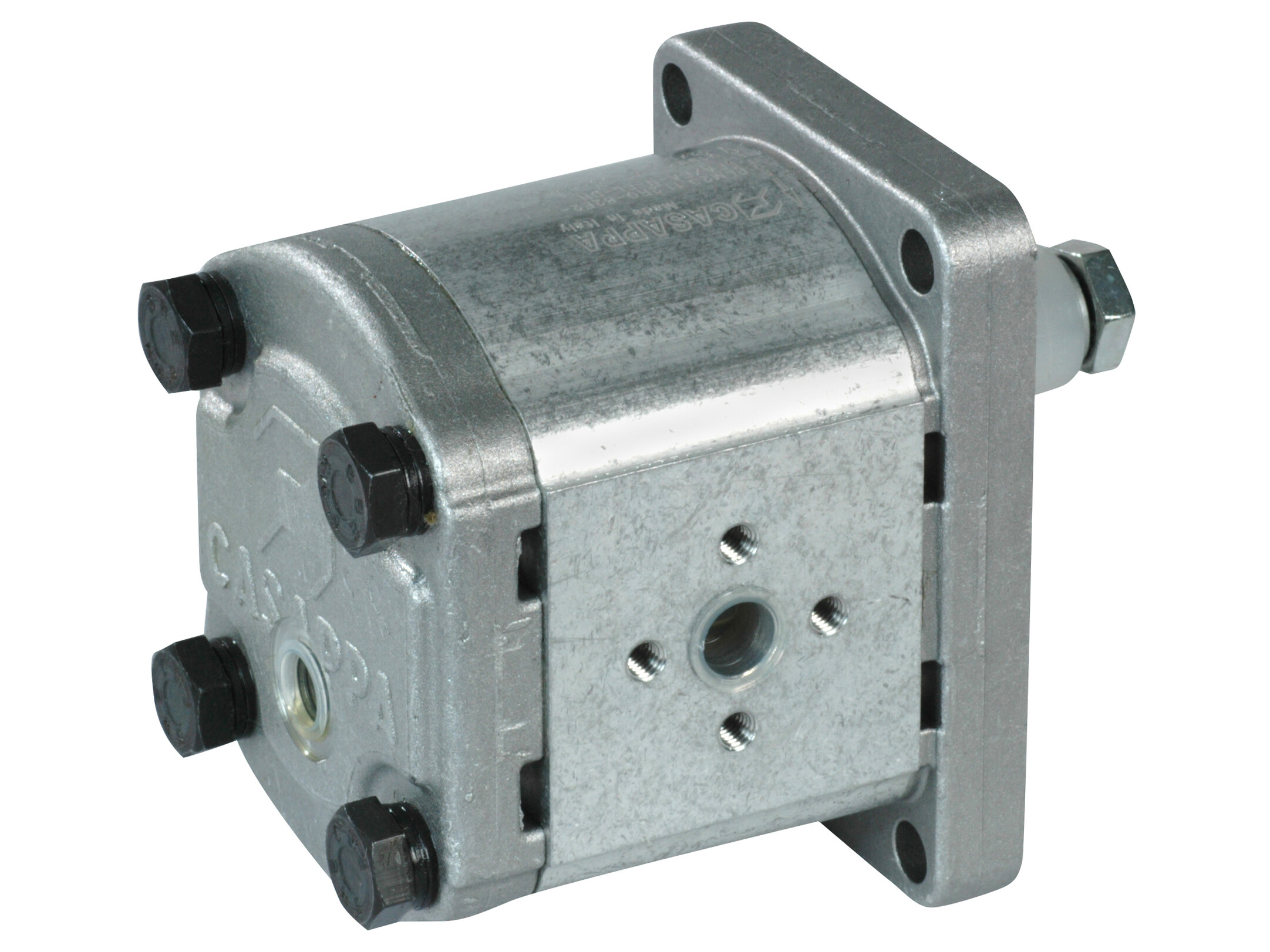

Casappa Polaris, series 2 gear motor..

Housing: Aluminium..

Gear wheels with slide bearings and two aluminium end plates..

Front- and rear cover: Aluminium.

Connection flanges must be ordered separately.

Artikelnummer:
0199801V

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Brand Name
Casappa

Contamination level max.
19/17/14 - ISO 4406

Displacement
11.23 cm3

Model code
PLM20.11,2R0-82E2-LEA/EA-N-EL-DH

Mounting flange
EU37 - 96x72

Number of mounting holes
4

Oil viscocity recommended
12 - 100 cSt

Port inlet
EU30

Port outlet
EU30

Pressure continous max.
250 bar

Pressure intermittent max.
280 bar

Rotation direction
Reversible (CW/CCW)

Rotational speed max.
3000 rpm

Rotational speed min.
600 rpm

Shaft cone
1:8

Shaft keyway
3,2 mm

Shaft type
Tapered
Package size
0 pcs

Barcode
5704334446019

Gross weight
2,52 Kg

Net weight
2,52 Kg

Country of origin
ITA

Intrastat code
84122981

Casappa Polaris, series 2 gear motor..

Housing: Aluminium..

Gear wheels with slide bearings and two aluminium end plates..

Front- and rear cover: Aluminium.

Connection flanges must be ordered separately.
