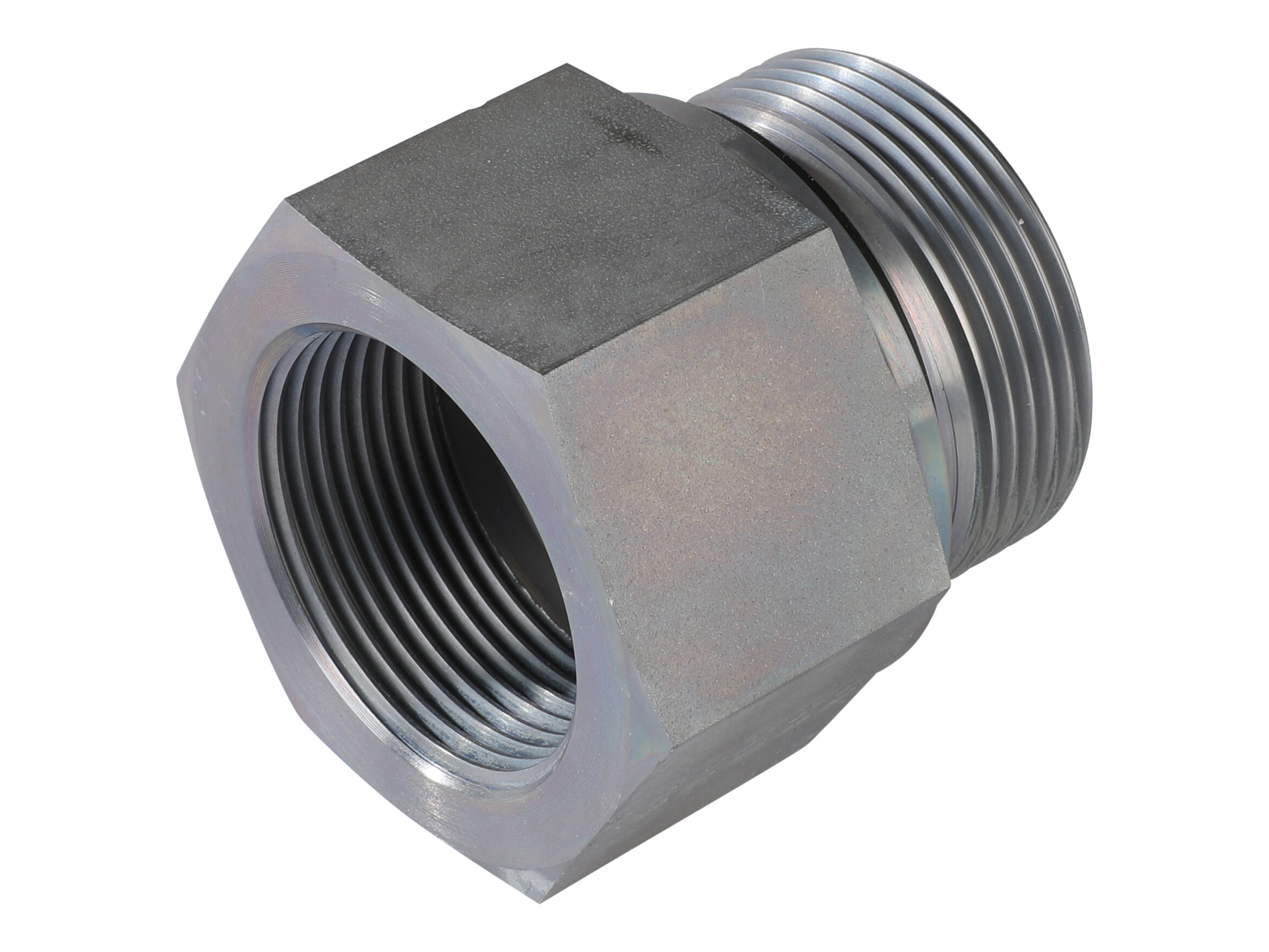

Reduktion - 1.1/2" BSP x 1.1/4" BSP indv - WD pakning

Reduktion - 1.1/2" BSP x 1.1/4" BSP indv - WD pakning

Partnumber:

RI11/2WD11/4

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Dimension L1

58 mm

Dimension L2

26.5 mm

Dimension S1

55 mm

Dimension i

22 mm

Gevind indvendig

G 1.1/4 BSP

Gevind udvendig

G 1.1/2 BSP

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Længde

58 mm

Materiale

Stål

Model kode

FI-RED-R1-1/2-WD-R1-1/4-B-W3

Mærke navn

Stauff

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

REACH compliant

RoHs compliant

Sekskant

55 mm

Sikkerhedsfaktor

Temperatur maks.

+100 °C

Temperatur min.

-35 °C

Thread T1

G 1.1/2 BSP

Thread T2

G 1.1/4 BSP

Totallængde

58 mm

Tryk maks.

315 bar

Type

Lang

Vinkel

0 °

Package size

0 pcs

Barcode

5704295277219

Gross weight

0,53 Kg

Net weight

0,53 Kg

Country of origin

DEU

Intrastat code

73071110

Product information
Measure sketch

Reduktion - 1.1/2" BSP x 1.1/4" BSP indv - WD pakning

Note: Opening 3D files requires a program that supports the file format
