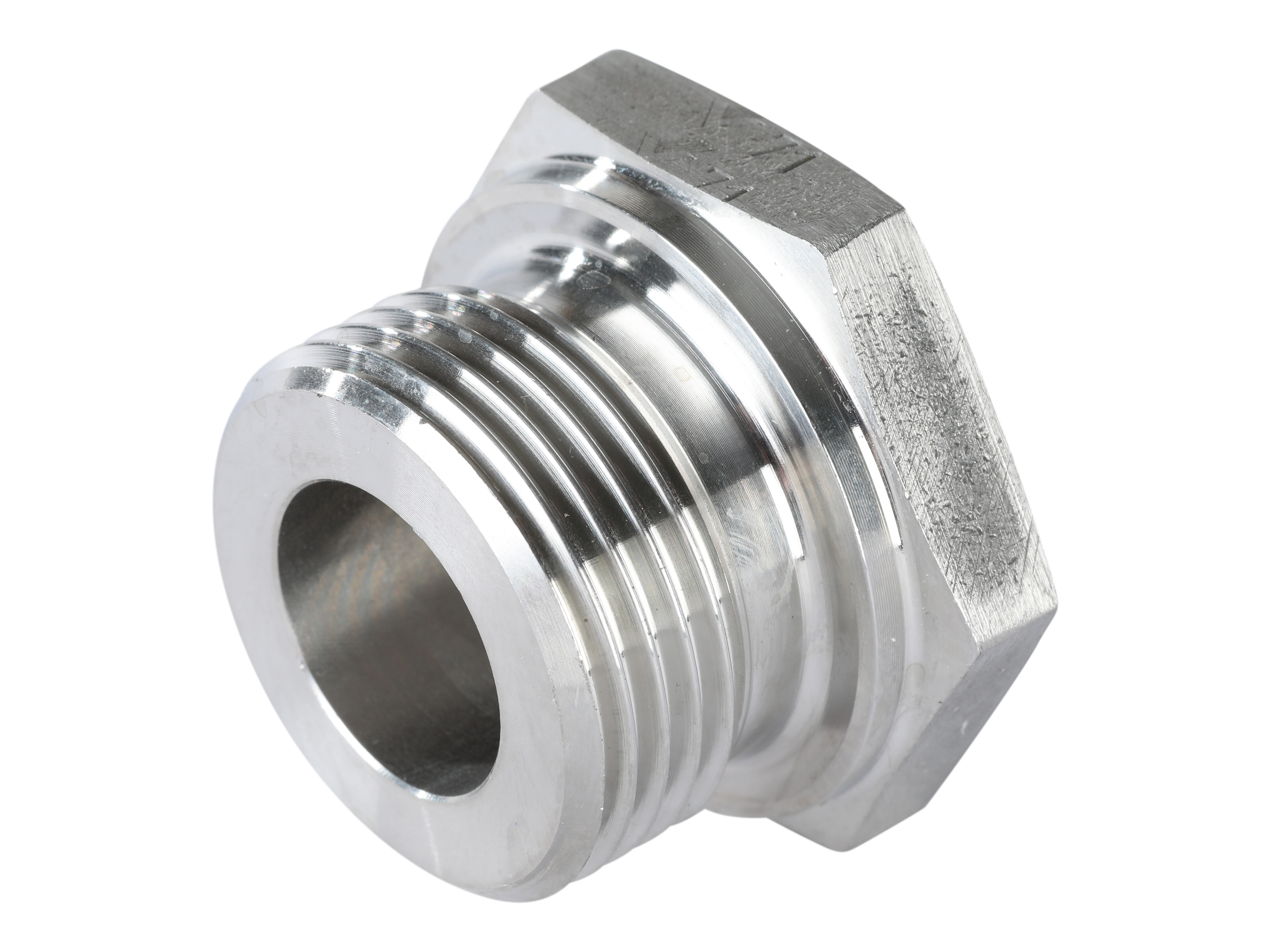

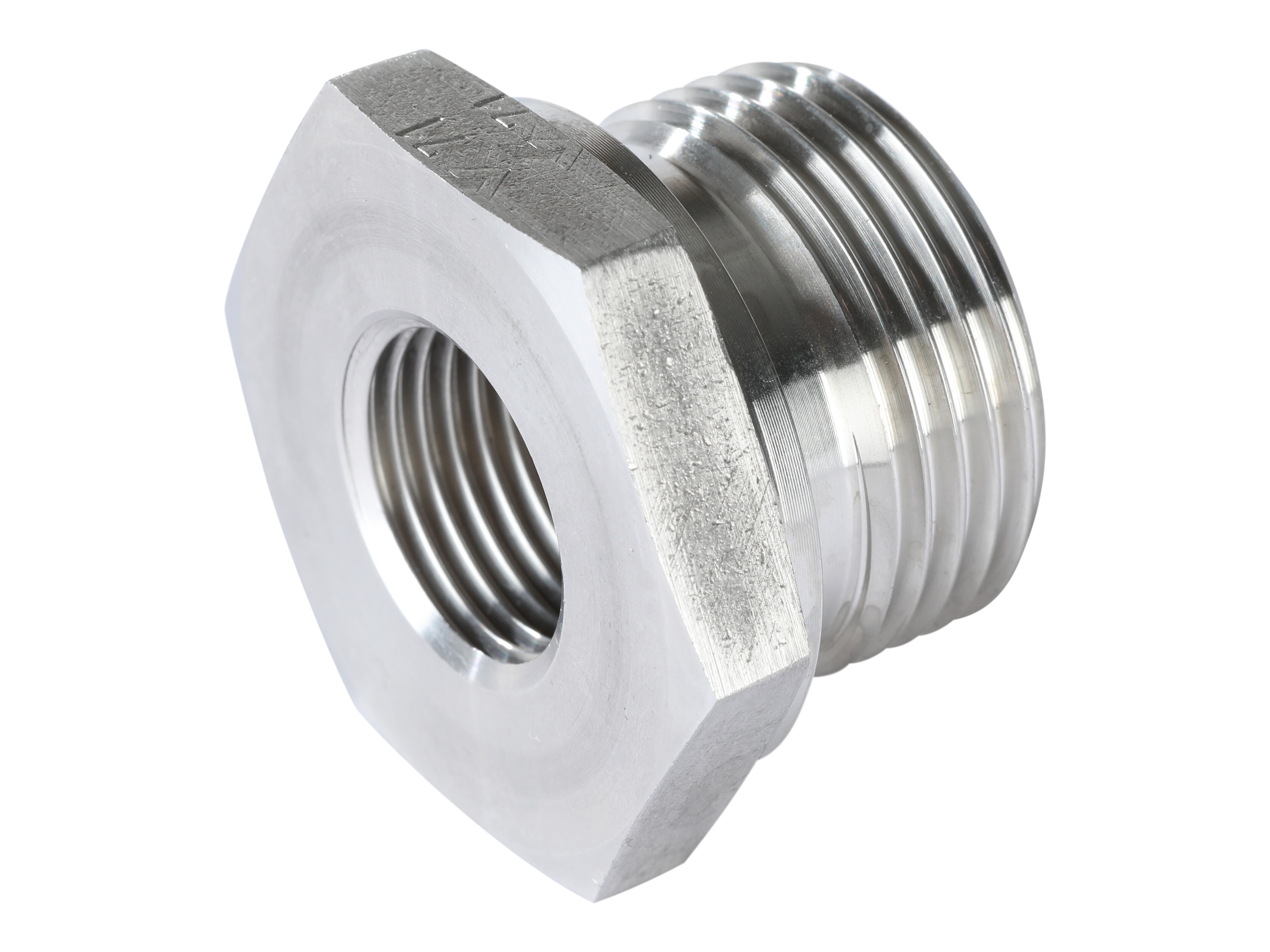

Reduktion - 1" BSP x 1/2" BSP indv - AISI 316Ti
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
RI1-1/2/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Dimension L1
29 mm
Dimension L2
14 mm
Dimension S1
41 mm
Dimension i
18 mm
Gevind indvendig
G 1/2 BSP
Gevind udvendig
G 1 BSP
Materiale
Rustfrit stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
RI 1 x 1/2
Mærke navn
Volz
Temperatur maks.
+400 °C
Temperatur min.
-60 °C
Thread T1
G 1 BSP
Thread T2
G 1/2 BSP
Tryk maks.
400 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295301730
Gross weight
0,16 Kg
Net weight
0,16 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
