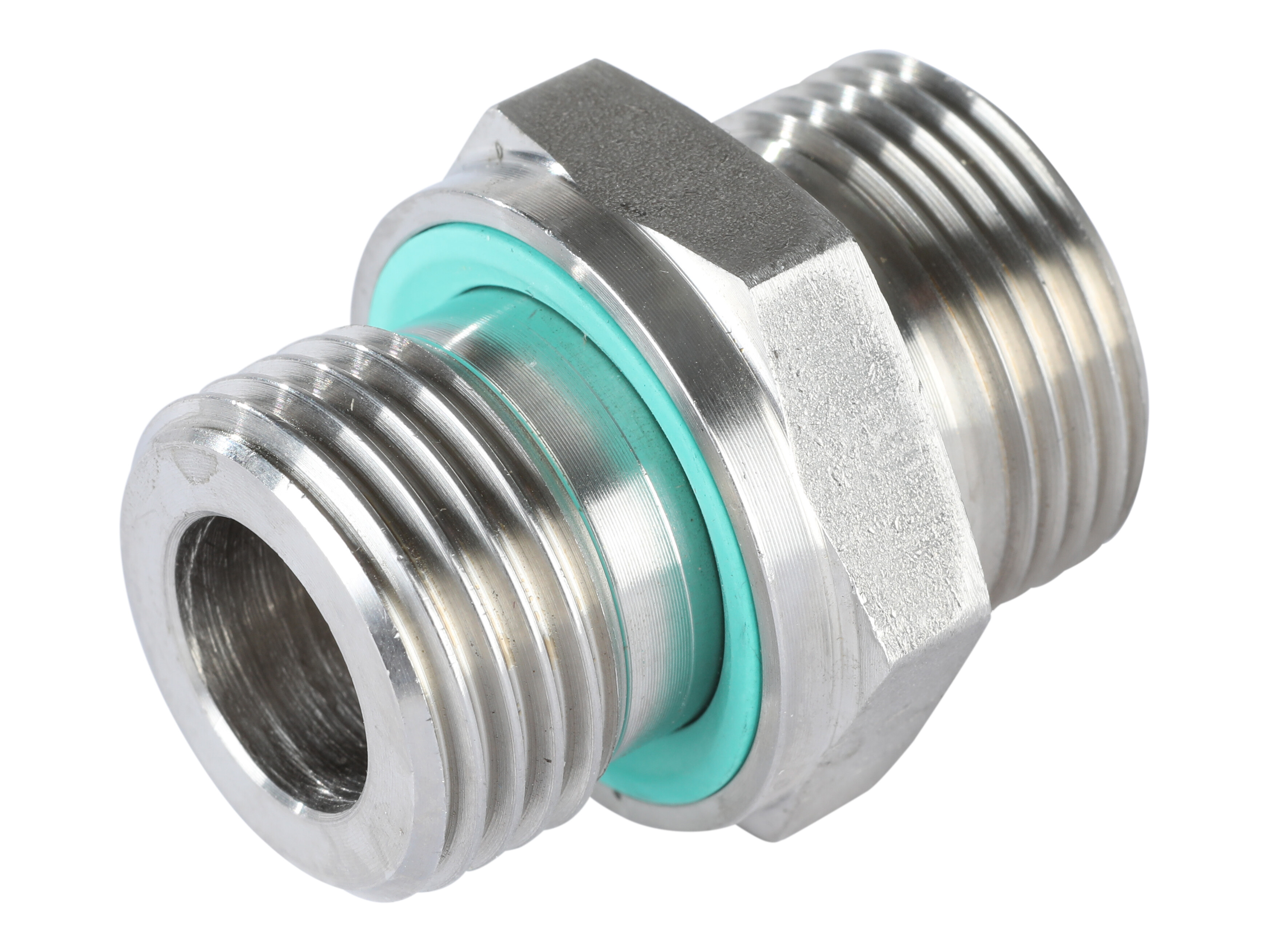

A22LR12WDX/71 - Indskruning - ø22L x1/2" BSP - WD seal - AISI316
Temperatur/trykreduktion:
-55°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
A22LR12WDX/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rør
22 mm
Dimension D1
22 mm
Dimension D1
22 mm
Dimension D2
14 mm
Dimension L1
485 mm
Dimension L2
38 mm
Dimension L3
165 mm
Dimension S1
32 mm
Dimension S2
36 mm
Dimension T2
90 nm
Dimension i
14 mm
Dimension i1
14 mm
Gevind T1
M30x2
Gevind udvendig
G 1/2 BSP
Gevind udvendig metrisk
M30x2
Materiale
Syrefast Stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
XGEV 22 LR 1/2 WD
Pakningsmateriale
FKM/FPM (Viton®)
REACH compliant
Ja
RoHs compliant
Ja
Serie
L
Sikkerhedsfaktor
4
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Thread T2
G 1/2 BSP
Tryk maks.
250 bar
Vinkel
0 °
Package size
0 pcs
Barcode
Gross weight
Kg
Net weight
Kg
Country of origin
deu
Temperatur/trykreduktion:
-55°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
