112 - Rørholder ø12 - Grøn PP - DIN 0

Rørholder ø12 - Grøn Profileret Polypropylen - DIN 0 - 112-PP

Partnumber:

112

Package size:

0 Set

Min. order quantity is:

1 Set

Tilbehør (4)

DP1 - Topplade - DIN 0 - ZiNi

Partnumber: DP1

IS1 - Bolt Insex - M6x20 - DIN 0-1 - ZiNi

Partnumber: IS1

Safety locking plate - DIN 0 - ZiNi

Partnumber: SIG1

Weld plate - DIN 0 - Phosphated

Partnumber: SP1

Specifications
Dimensions and shipping

Antal bolte

Bredde

30 mm

DIN størrelse

Diameter rør

12 mm

Dimension D1

12 mm

Dimension D1

12 mm

Dimension H

27 mm

Dimension L1

28 mm

Dimension L2

9.5 mm

Dimension S

0.4 mm

Farve

Grøn

Gruppe Stauff

Materiale

Polypropylen

Model kode

112-PP

Mærke navn

Stauff

Standard DIN

DIN 3015 part 1

Temperatur maks.

+90 °C

Temperatur min.

-30 °C

Tilspændingsmoment

8 Nm

Type

Profileret

Package size

0 Set

Barcode

5704295305110

Gross weight

0,01 Kg

Net weight

0,01 Kg

Country of origin

DEU

Intrastat code

39259010

Product information

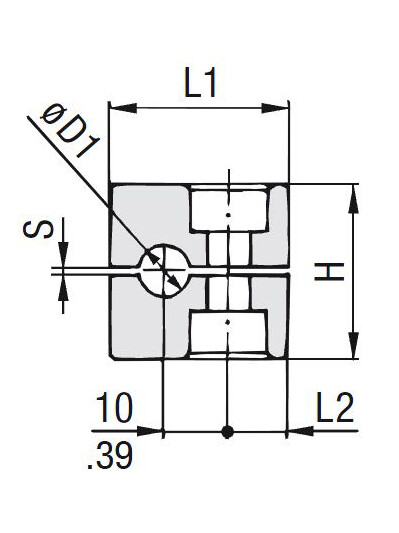

Measure sketch

Rørholder ø12 - Grøn Profileret Polypropylen - DIN 0 - 112-PP

Note: Opening 3D files requires a program that supports the file format
