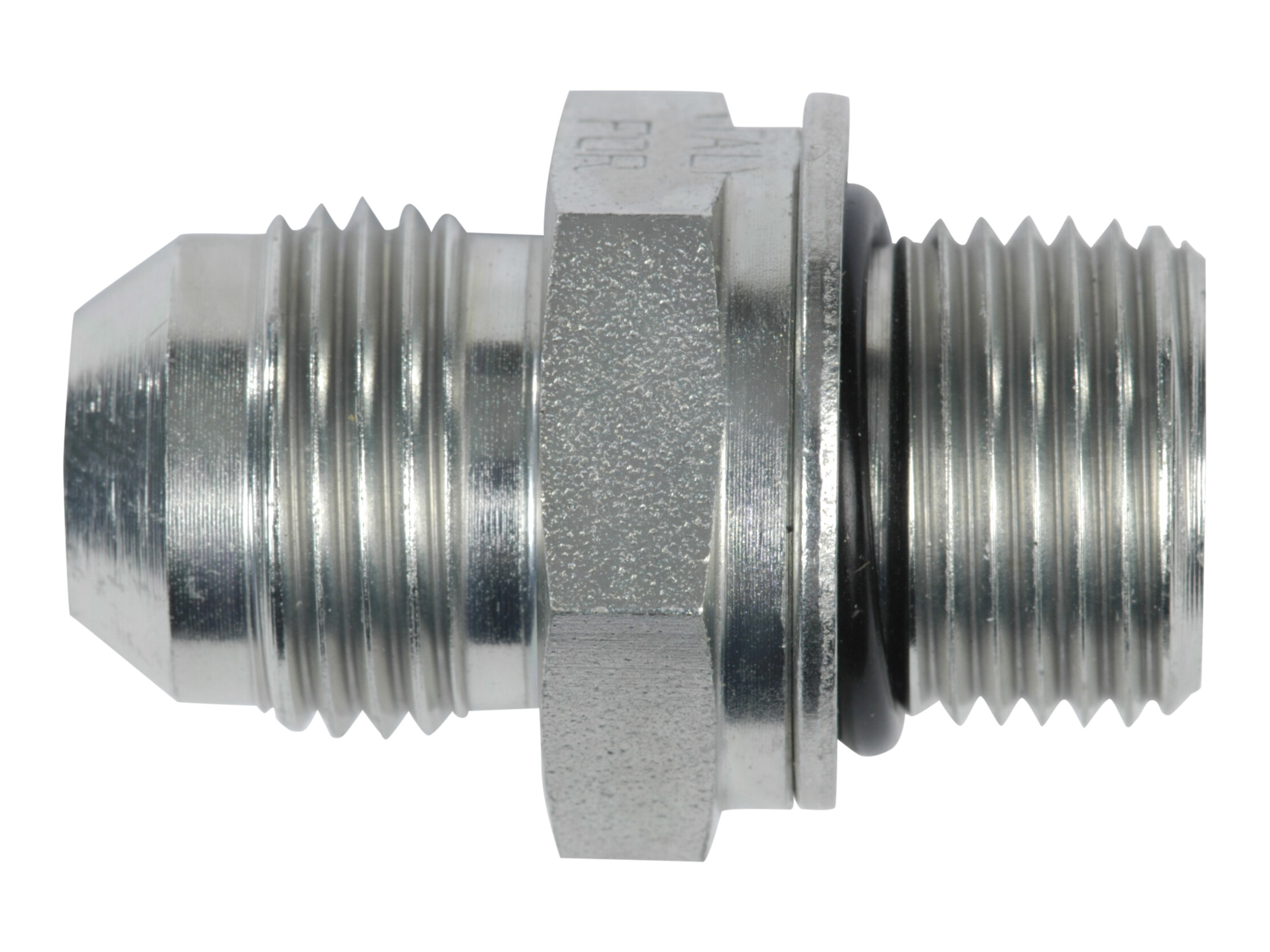

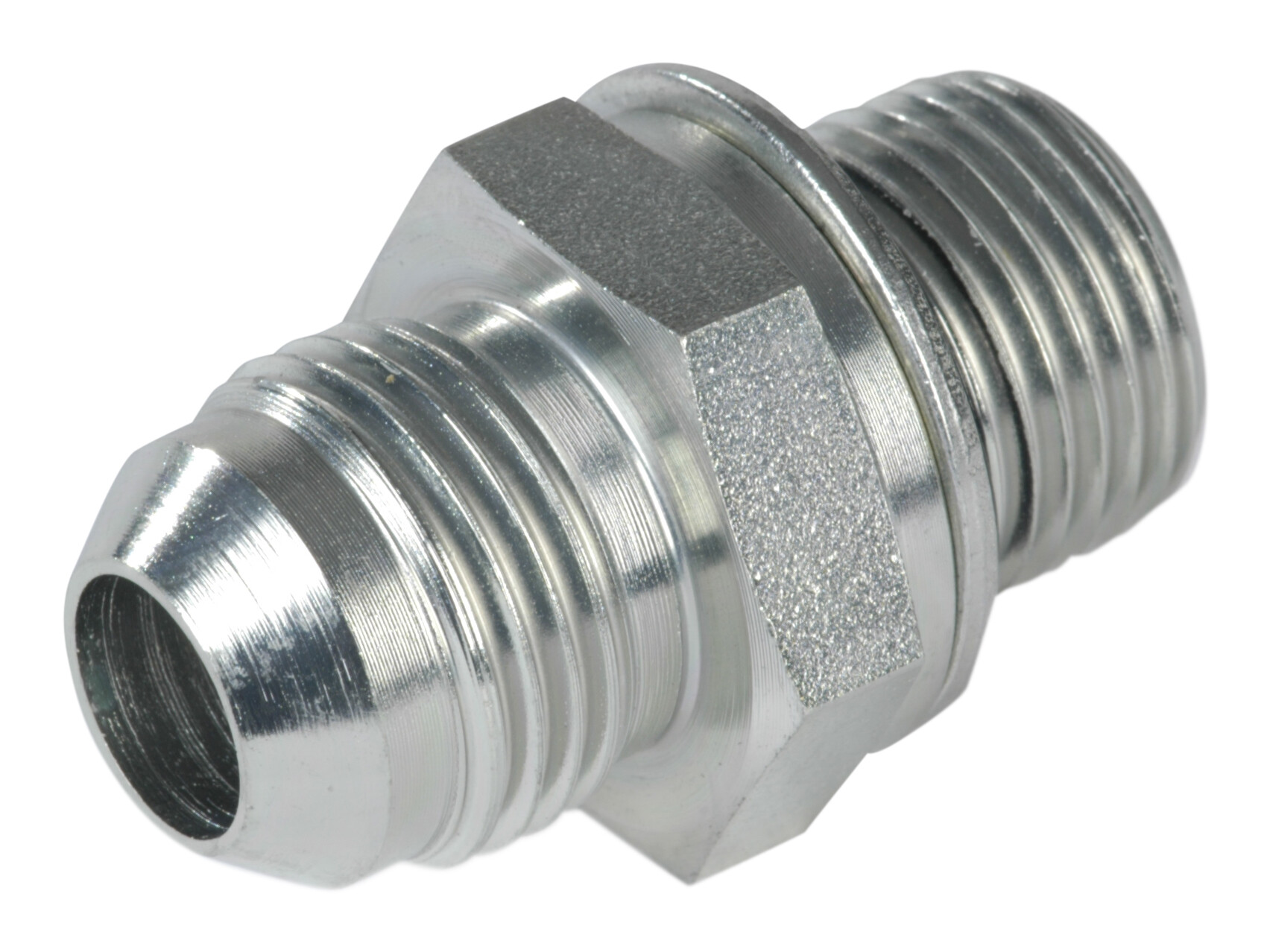

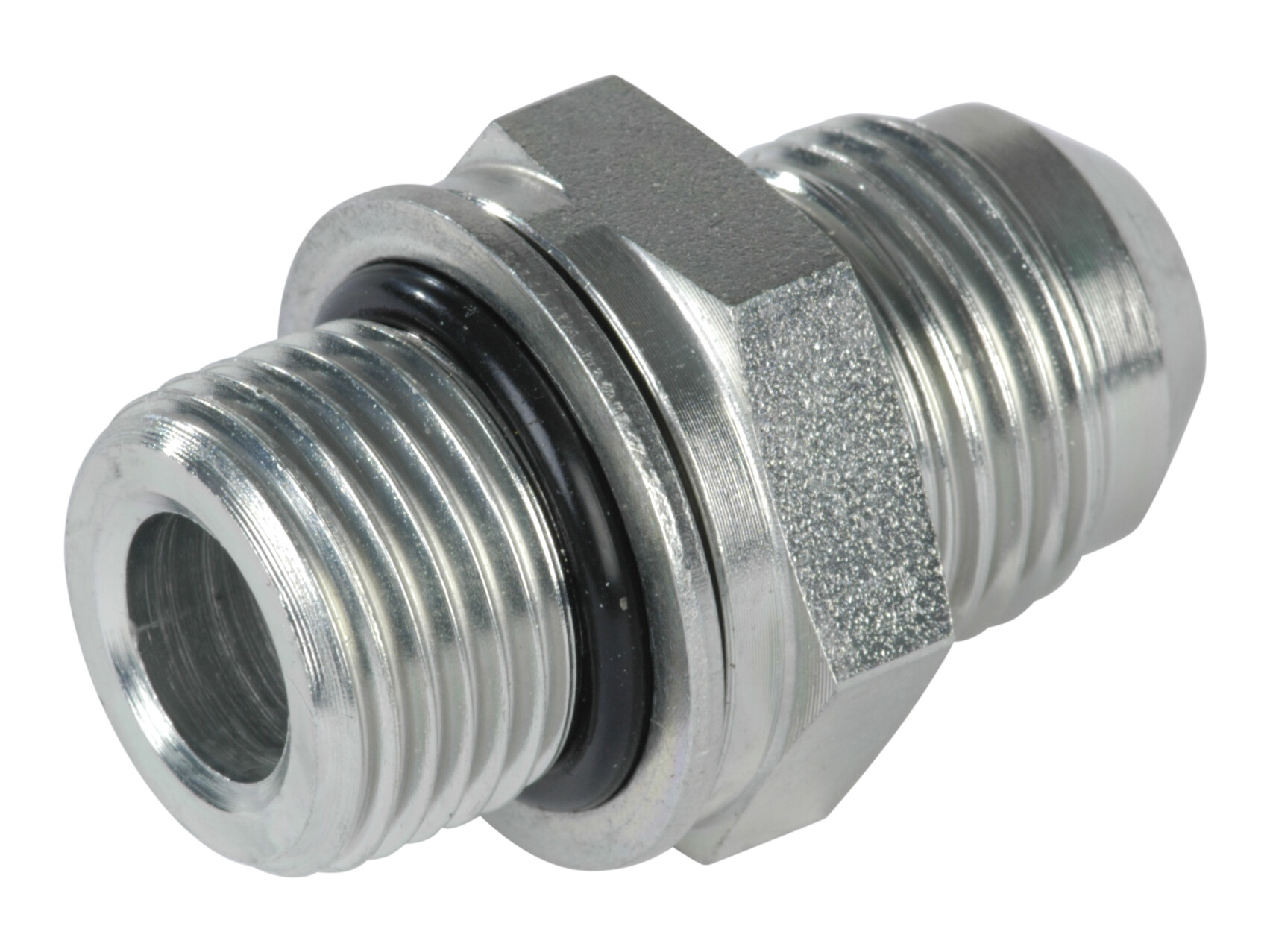

M-12-18 - Indskruning 3/4-16 JIC udv x M18x1.5 udv
Indskruning 3/4-16 JIC udv x M18x1.5 udv
Partnumber:
M-12-18
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
39,5 mm
Angle
0 °
B
17 mm
Brand Name
FOR
CH
24 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
12,5 mm
Diameter pipe
12 mm
Dimension F metric
M18x1,5
J
3/4-16 JIC
Material
Stål
Model code
A102067/1218
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 9974
Surface treatment
El-forzinket / hvidkromatiseret
T
12 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
3/4-16 JIC
Thread outer metric
M18x1,5
Package size
0 pcs
Barcode
5704334395072
Gross weight
0,07 Kg
Net weight
0,07 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 3/4-16 JIC udv x M18x1.5 udv
