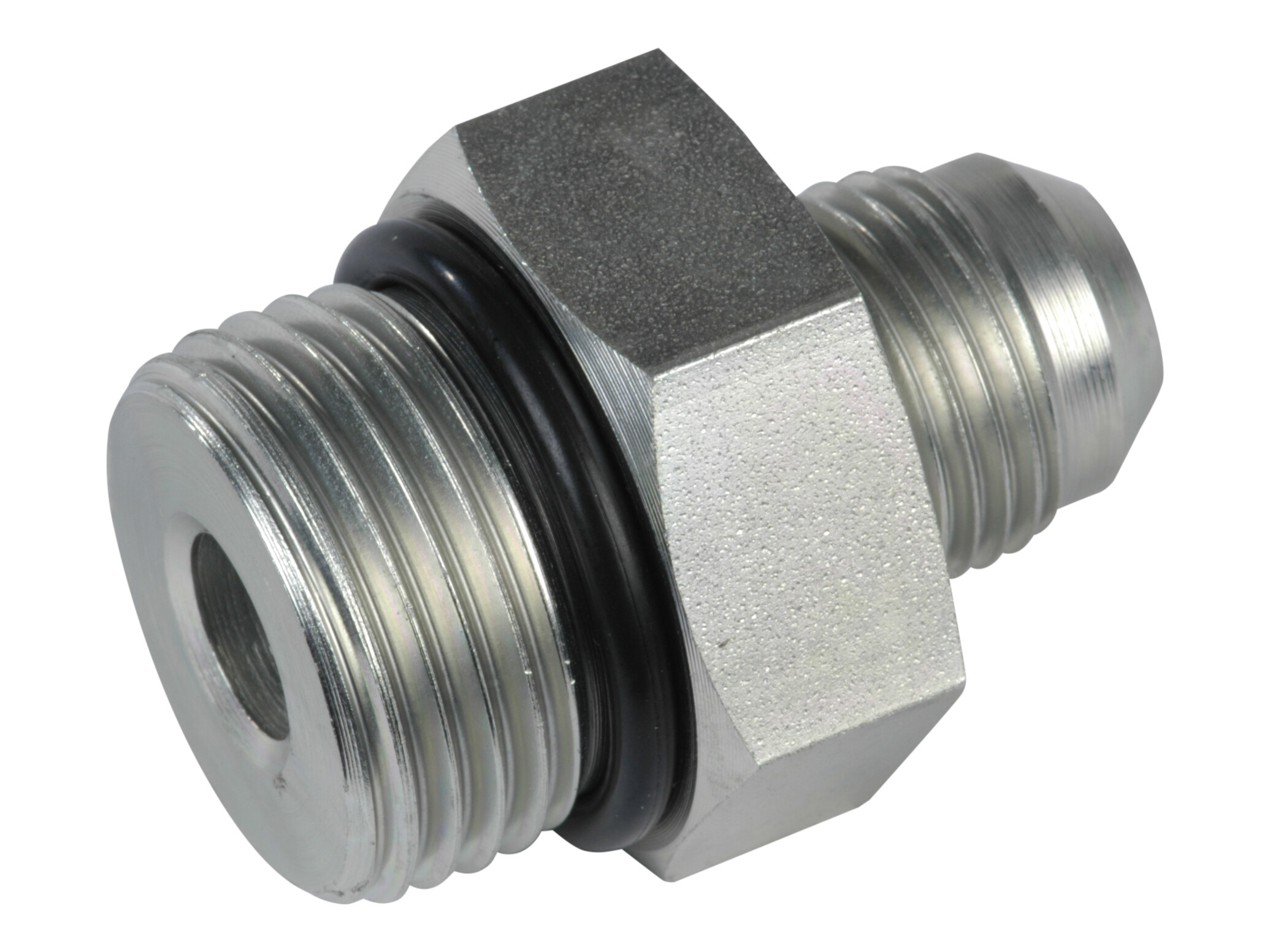

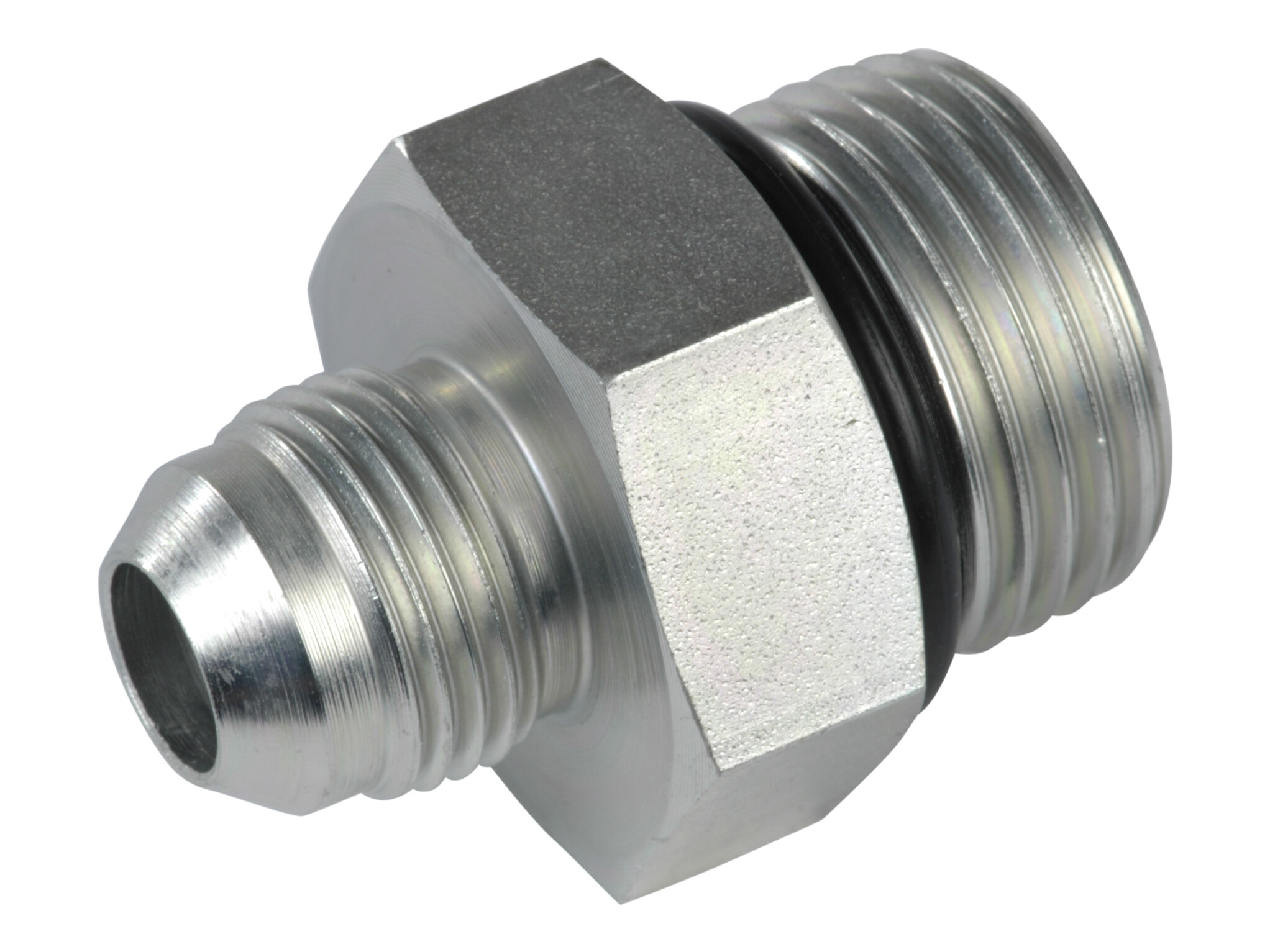

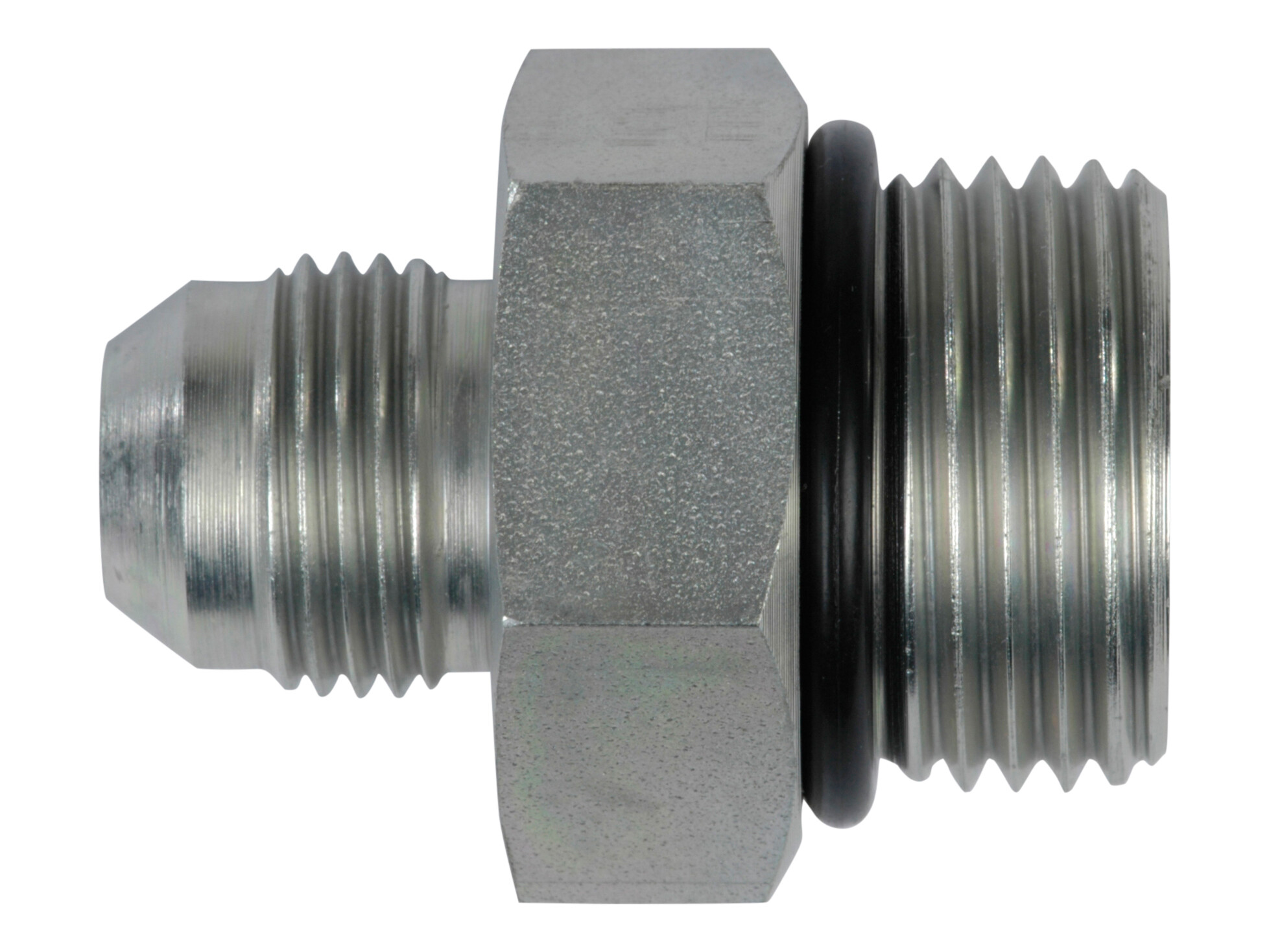

Indskruning 3/4-16 JIC udv x 1.1/16-12 UNF udv
Indskruning 3/4-16 JIC udv x 1.1/16-12 UNF udv
Partnumber:
M-12-1.1/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
45 mm
B
17 mm
CH
32 mm
D
15,5 mm
Diameter rör
12 mm
Dimension F
1.1/16-12 UNF
Gänga utv.
3/4-16 JIC
Gänga utv.
1.1/16-12 UNF
J
3/4-16 JIC
Märke namn
FOR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
T
12 mm
Tillverkningsmaterial
Stål
Tryck max.
350 bar
Vinkel
0 °
Ytskiktbehandling
El-forzinket / hvidkromatiseret
Package size
0 pcs
Barcode
5704295485379
Gross weight
Kg
Net weight
0,151 Kg
Country of origin
ita
Intrastat code
73071110
Indskruning 3/4-16 JIC udv x 1.1/16-12 UNF udv
Note: Opening 3D files requires a program that supports the file format
