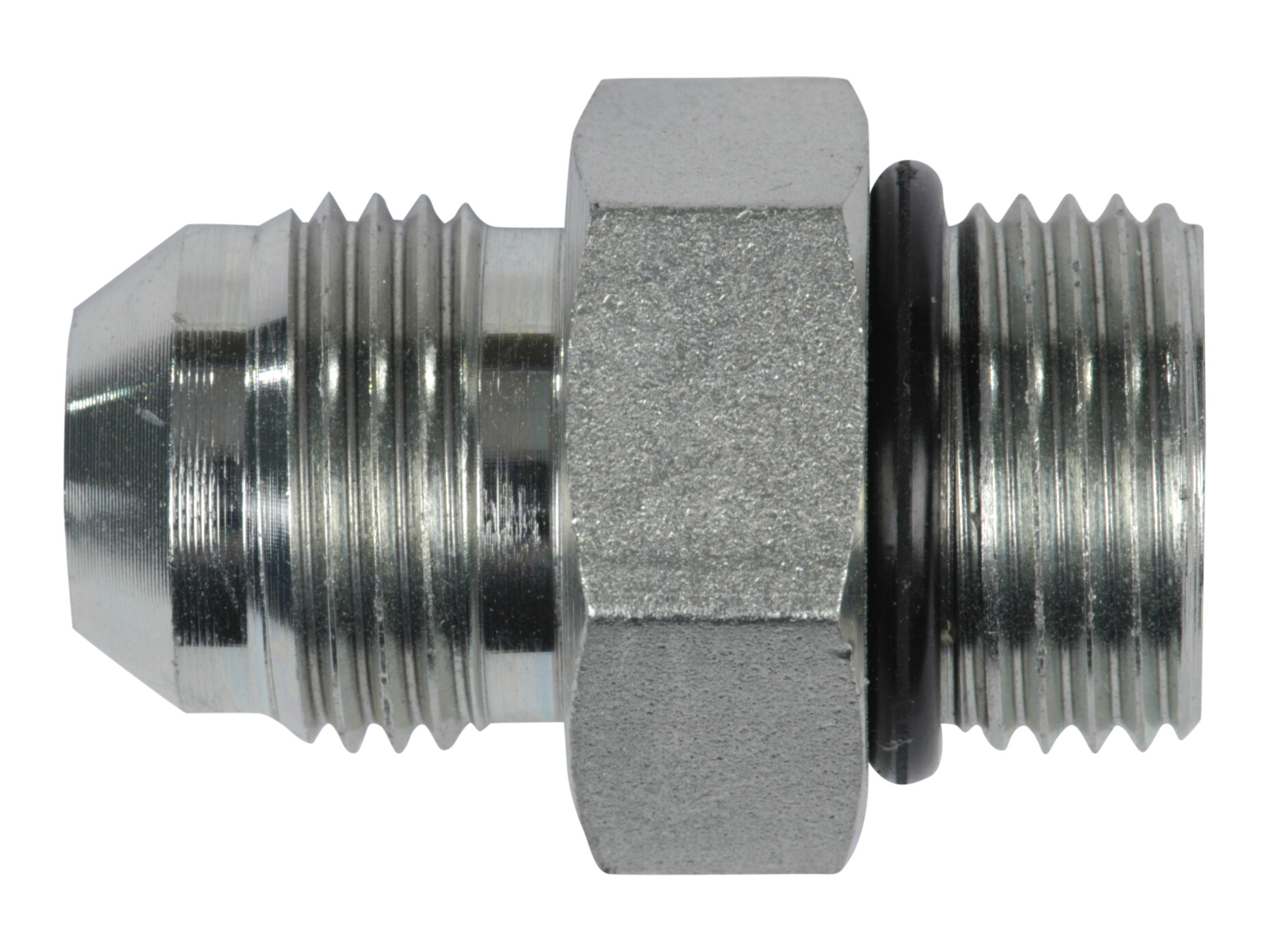

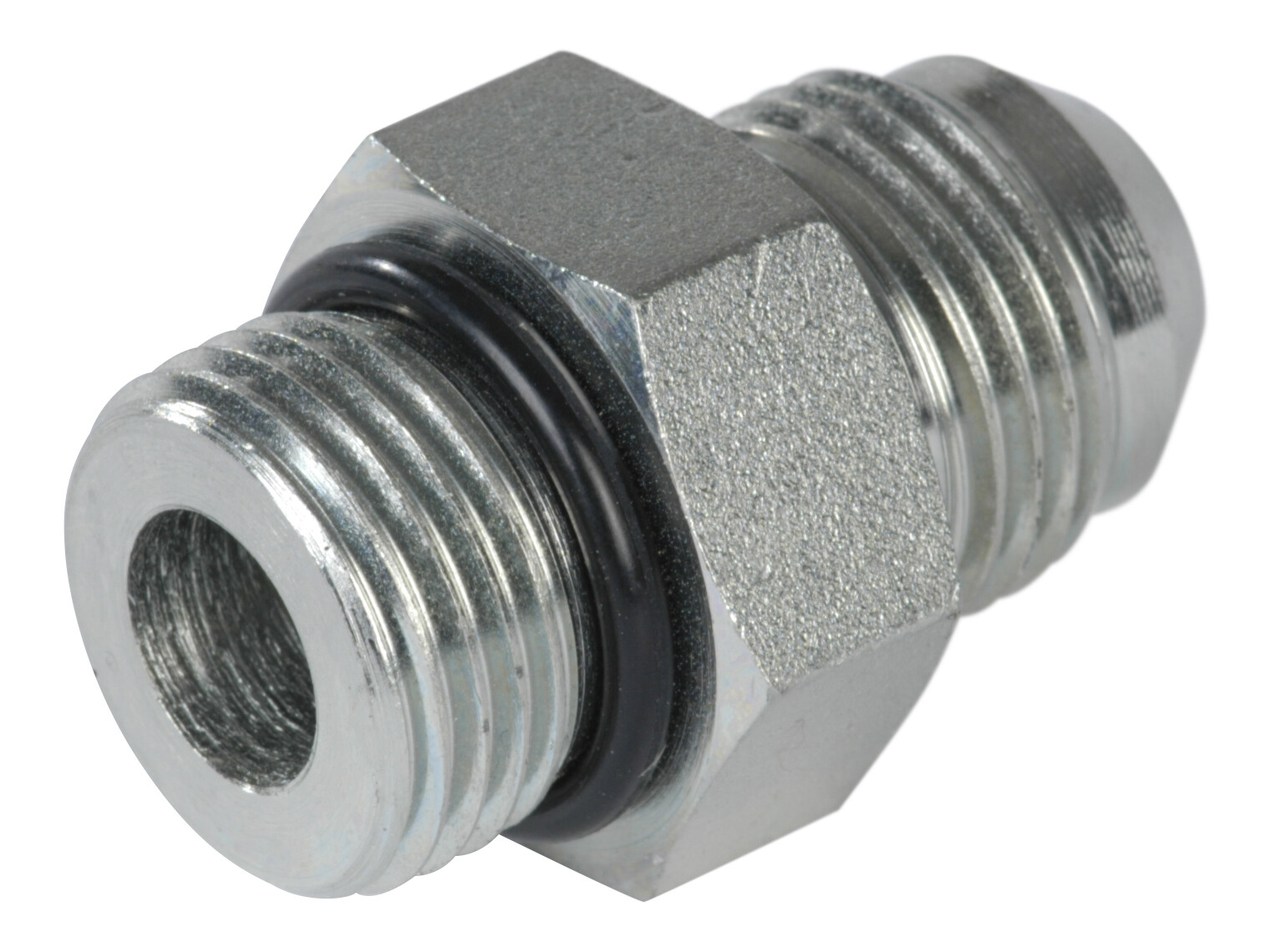

Indskruning 3/4-16 JIC udv x 3/4-16 UNF udv NW22
Indskruning 3/4-16 JIC udv x 3/4-16 UNF udv NW22
Partnumber:
M-12-3/4
Package size:
0 stk
Min. order quantity is:
1 stk
A
37,5 mm
Angle
0 °
B
17 mm
Brand Name
FOR
CH
22 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
11 mm
Diameter pipe
12 mm
F
3/4-16 UNF
J
3/4-16 JIC
Material
Stål
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
El-forzinket / hvidkromatiseret
T
12 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
3/4-16 JIC
Thread outer
3/4-16 UNF
Package size
0 stk
Barcode
5704334308843
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
Indskruning 3/4-16 JIC udv x 3/4-16 UNF udv NW22
Note: Opening 3D files requires a program that supports the file format
