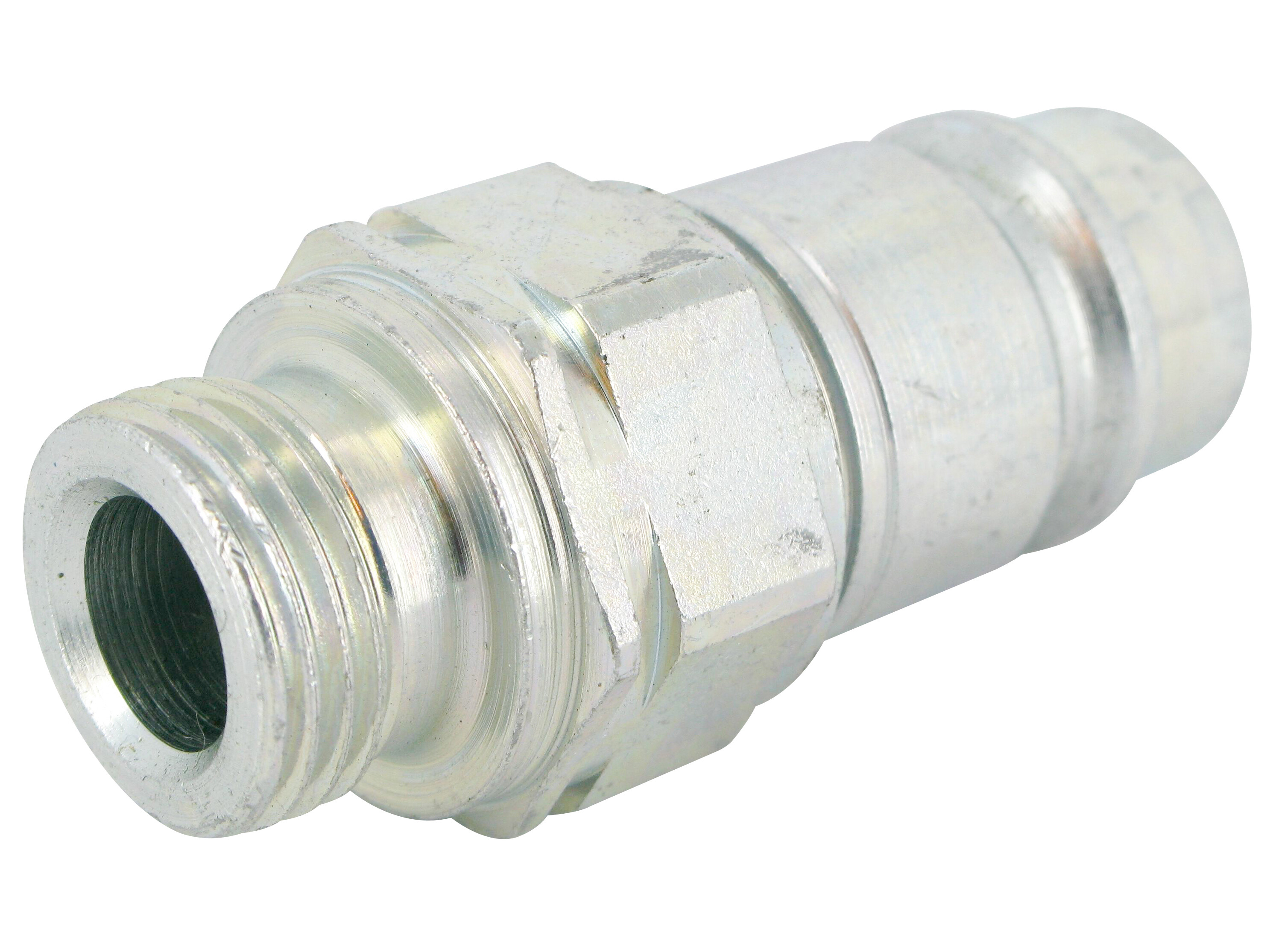

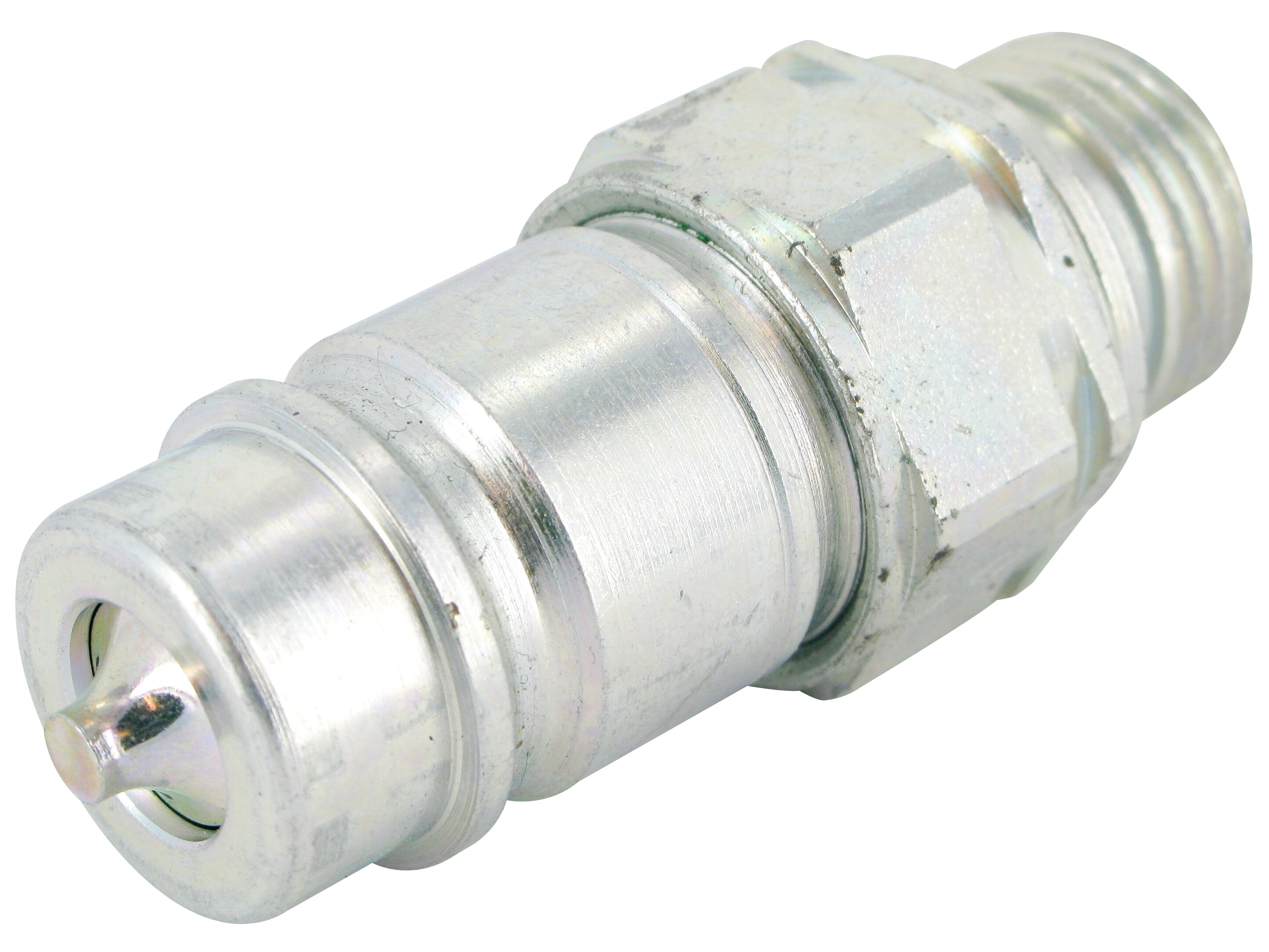

Lynkobling han HP (ISO-A) - DN12 - 1/2"BSP

Lynkobling han HP (ISO-A) - DN12 - 1/2"BSP

Push-pull: Dobbeltvirkende kuglelås på hunpart. Kan automatisk frikoble hanparten i nødstilfælde (emergency breakaway), når monteret i panel og med slangetilslutning.

Varenummer:

HP10-2-AGF08

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (4)

Gummihætte -std.koblinger 1/2" ISO-A 1/2"

Partnumber: C52PH

Coupling female HP (ISO-A) - DN12 - 1/2"BSP

Partnumber: HP10-1-AGF08

Holder med klap. For hanstik HP10 (ø38mm) - rød

Partnumber: SZ10-1-A0

Holder med klap. For hanstik HP10 (ø38mm). Sort.

Partnumber: SZ10-1-A1

Specifications
Dimensions and shipping

Dimension C

61 mm

Dimension E

G 1/2 BSP

Dimension H

20.6 mm

Dimension Y

27 mm

Flow Nominel

100 lpm

Gevind udvendig

G 1/2 BSP

ISO størrelse

12.5

Model kode

HP10-2-AGF08

Mærke navn

Stauff

Pakningsmateriale

NBR

Standard ISO

ISO 7241-1-A

Størrelse

1/2 "

Temperatur maks.

+100 °C

Temperatur min.

-20 °C

Tryk maks.

250 bar

Package size

0 pcs

Barcode

5704295493190

Gross weight

0,13 Kg

Net weight

0,13 Kg

Country of origin

DEU

Intrastat code

84812010

Product information
Measure sketch

Push-pull: Dobbeltvirkende kuglelås på hunpart. Kan automatisk frikoble hanparten i nødstilfælde (emergency breakaway), når monteret i panel og med slangetilslutning.
