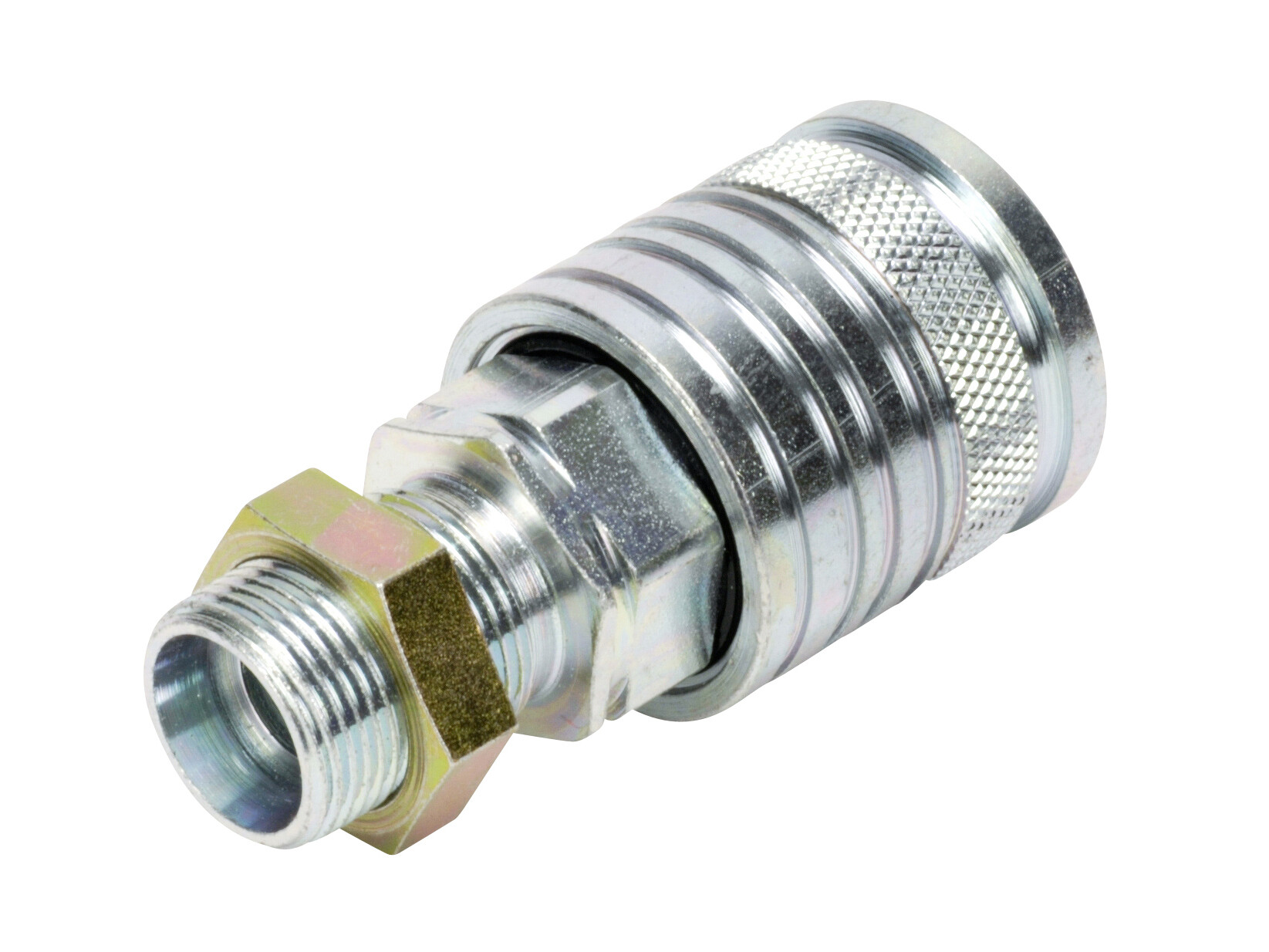

Coupling female HP (ISO-A) - DN12 - M18x1.5 (12L) bulkhead
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
Artikelnummer:
HP10-1-N1218
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
M18x1,5
B
84 mm
Brand Name
Stauff
D
38 mm
Diameter pipe
12 mm
Flow rate nominal LMin
100 lpm
ISO size
12.5
Model code
HP10-1-N1218
Pressure max.
250 bar
Sealing material
NBR
Series
L
Size
1/2 "
Standard ISO
ISO 7241-1-A
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread outer metric
M18x1,5
X
27 mm
Förpackningsstorlek
0 pcs
Streckkod
5704295318349
Bruttovikt
0,12 Kg
Nettovikt
0,12 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
Push-pull: Double acting ball-lock on female part.
Emergency break-away when panel mounted and connected to a hose..
