1.1/2" Kobling - 1.1/2" BSP oml.

1.1/2" Kobling - 1.1/2" BSP oml.

1.1/2" Kobling - 1.1/2" BSP oml.

Tilslutning: Indvendigt BSP-gevind i omløber med 60° udadvendt konus.

Pakning/tætningsflade: Metal mod metal på modpart.

Partnumber:

GSM2424NU

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (1)

Gevindprop, 1.1/2" BSP, 1.1/2" NPT, 1.7/8" JIC/UNF

Partnumber: PLUG09M

Specifications
Dimensions and shipping

Gevind

G 1.1/2 BSP

Korrosions resistens

500 hours salt spray ASTM B-117

Model kode

24GSM-24FBSPORX

Mærke navn

Gates

Overfladebehandling

TuffCoat™

REACH compliant

Ja

RoHs compliant

Ja

Slangekoblingstype

Med fast kappe

Slangestørrelse

1.1/2 "

Tilspændingsmoment

225 - 250 Nm

Tryk maks.

350 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334379508

Gross weight

0,86 Kg

Net weight

0,86 Kg

Country of origin

CZE

Intrastat code

73269098

Product information

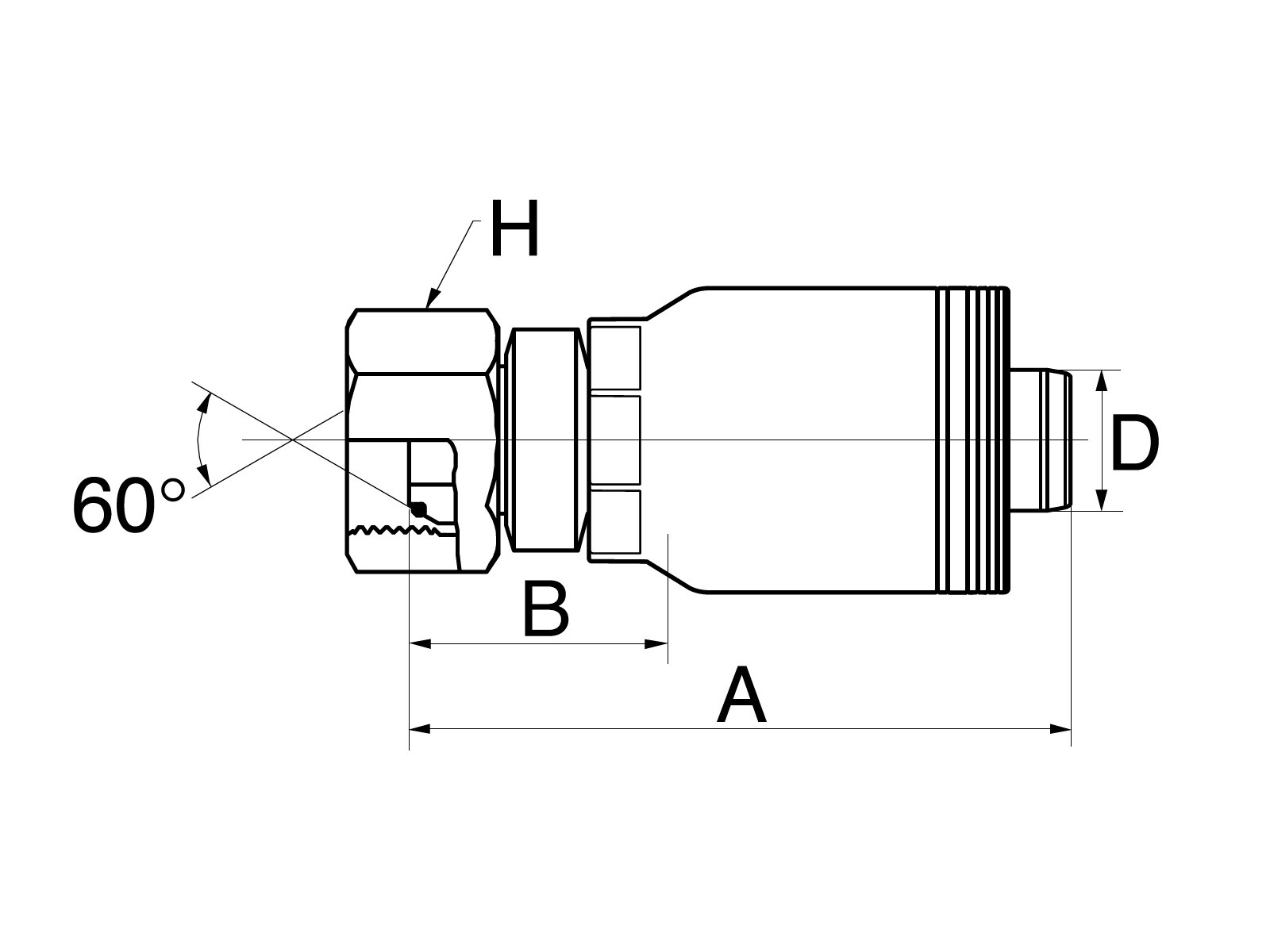

Measure sketch

Tilslutning: Indvendigt BSP-gevind i omløber med 60° udadvendt konus.

Pakning/tætningsflade: Metal mod metal på modpart.

1.1/2" Kobling - 1.1/2" BSP oml.
