1.1/2" Kobling - 1.1/2" BSP oml. - 45°

Tilslutning: Indvendigt BSP-gevind i omløber med 60° udadvendt konus.

Pakning/tætningsflade: Metal mod metal på modpart.

Varenummer:

GSM2424NU45

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

Gevindprop, 1.1/2" BSP, 1.1/2" NPT, 1.7/8" JIC/UNF

Varenummer: PLUG09M

Specifikationer
Dimensioner og forsendelse

Dimension A

242.5 mm

Dimension B

147.5 mm

Dimension D

1.1/2 "

Dimension E

49.7 mm

Dimension H

55 mm

Gevind

G 1.1/2 BSP

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

24GSM-24FBSPORX45

Mærke navn

Gates

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Slangekoblingstype

Med fast kappe

Slangestørrelse

1.1/2 "

Tilspændingsmoment

225 - 250 Nm

Tryk maks.

350 bar

Vinkel

45 °

Pakke str.

0 pcs

Stregkode

5704334379522

Brutto vægt

1,42 Kg

Netto vægt

1,42 Kg

Oprindelsesland

CZE

Intrastat varekode

73269098

Produkt information

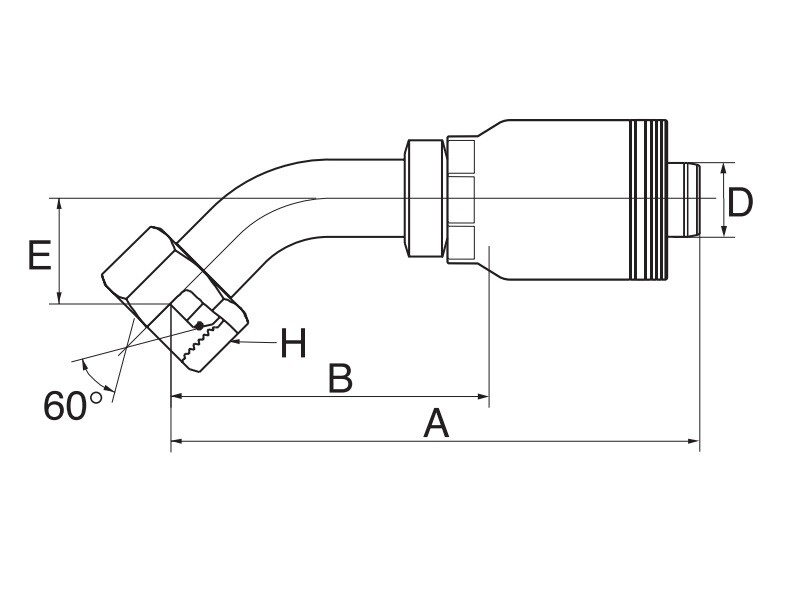

Målskitse

Tilslutning: Indvendigt BSP-gevind i omløber med 60° udadvendt konus.

Pakning/tætningsflade: Metal mod metal på modpart.
