GSM2424NJ - 1.1/2" Kobling - 1.7/8"-12 JIC oml.

Tilslutning: Indvendigt JIC-gevind med 37° indadvendt konus.

Pakning/tætningsflade: Konus mod konus (metal mod metal).

Partnumber:

GSM2424NJ

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (1)

PLUG09M - Gevindprop, 1.1/2" BSP, 1.1/2" NPT, 1.7/8" JIC/UNF

Partnumber: PLUG09M

Specifications
Dimensions and shipping

1529 mm

579 mm

1.1/2 BSP

Gevind

1.7/8-12 JIC

60 mm

55 mm

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

24GSM-24FJX

Mærke navn

Gates

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Slangekoblingstype

Med fast kappe

Slangestørrelse

1.1/2 "

Tilspændingsmoment

212 - 235 Nm

Tryk maks.

350 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704334379584

Gross weight

1,12 Kg

Net weight

1,12 Kg

Country of origin

TUR

Intrastat code

73269098

Product information

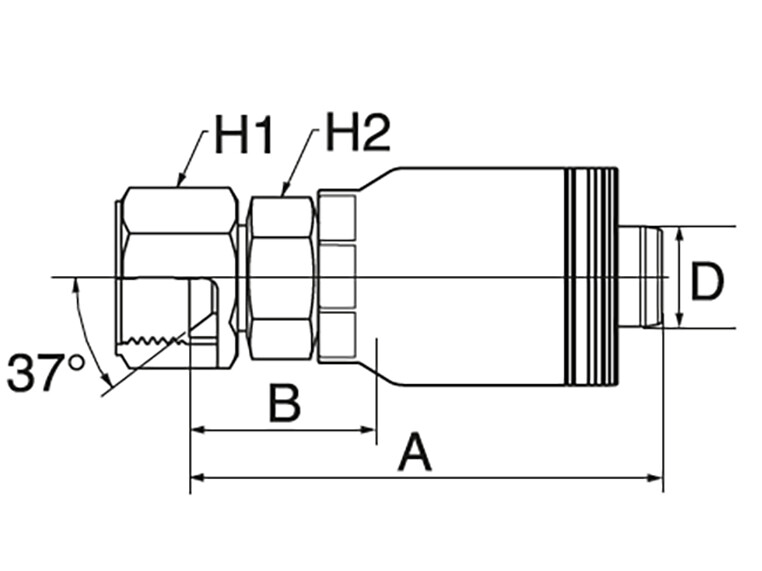

Measure sketch

Tilslutning: Indvendigt JIC-gevind med 37° indadvendt konus.

Pakning/tætningsflade: Konus mod konus (metal mod metal).
