1.1/4" Indstik - 1.1/4" BSP udv.

Tilslutning: Udvendigt BSP-gevind med 60° indadvendt konus

Pakning/tætningsflade: Metal mod metal (konus) eller til indskruning.

Varenummer:

GS2020MU

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Dimension A

118 mm

Dimension B

46.9 mm

Dimension D

1.1/4 "

Dimension H

50 mm

Gevind

G 1.1/4 BSP

Korrosions resistens

500 hours salt spray ASTM B-117

Materiale

Stål

Model kode

20GS-20MBSPP

Mærke navn

Gates

Overfladebehandling

TuffCoat™

REACH compliant

RoHs compliant

Slangekoblingstype

Til løs kappe

Slangestørrelse

1.1/4 "

Tilspændingsmoment

170 - 190 Nm

Vinkel

0 °

Package size

0 pcs

Barcode

5412571552652

Gross weight

0,52 Kg

Net weight

0,52 Kg

Country of origin

CZE

Intrastat code

73269098

Product information

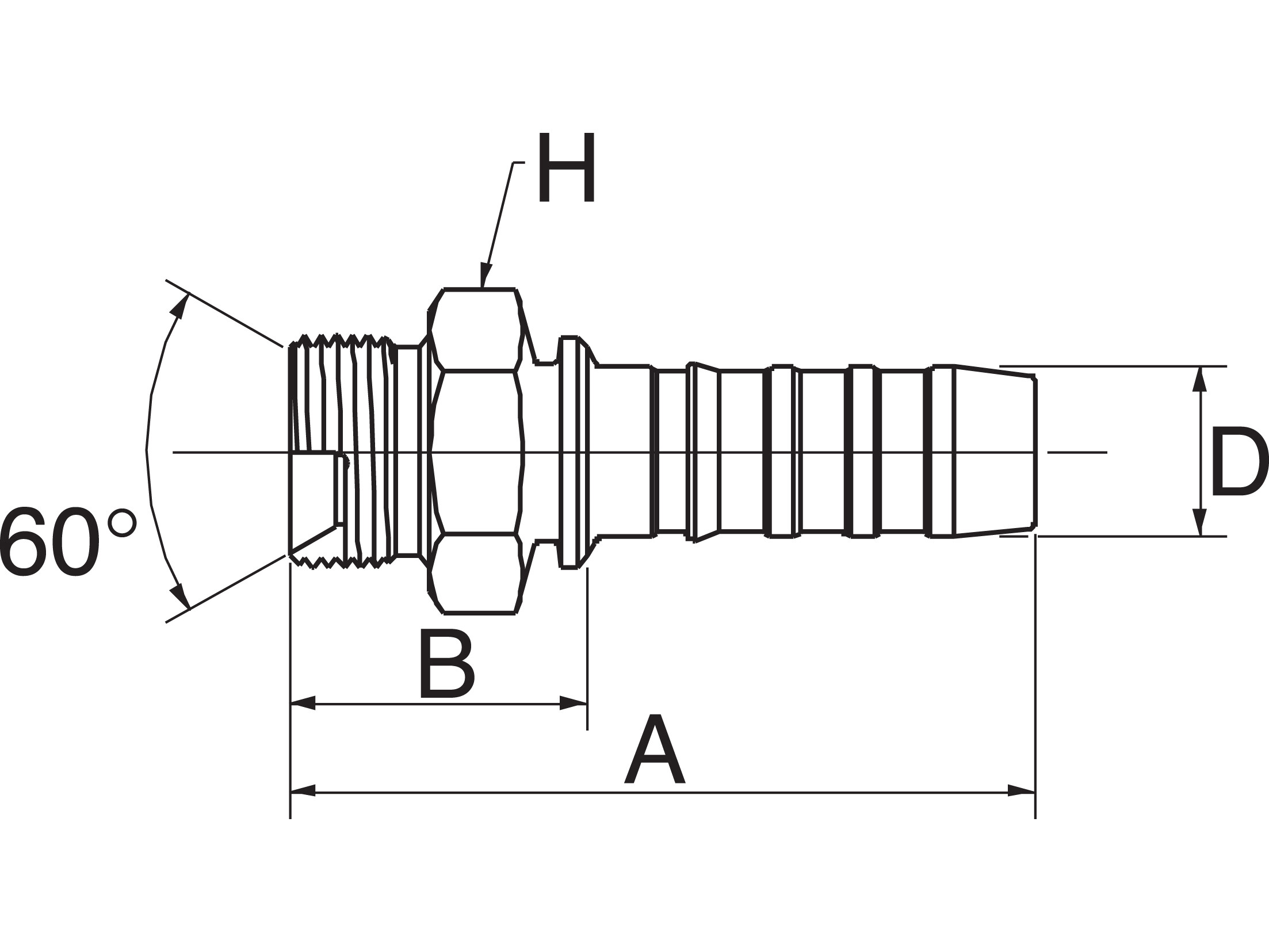

Measure sketch

Tilslutning: Udvendigt BSP-gevind med 60° indadvendt konus

Pakning/tætningsflade: Metal mod metal (konus) eller til indskruning.

Note: Opening 3D files requires a program that supports the file format
