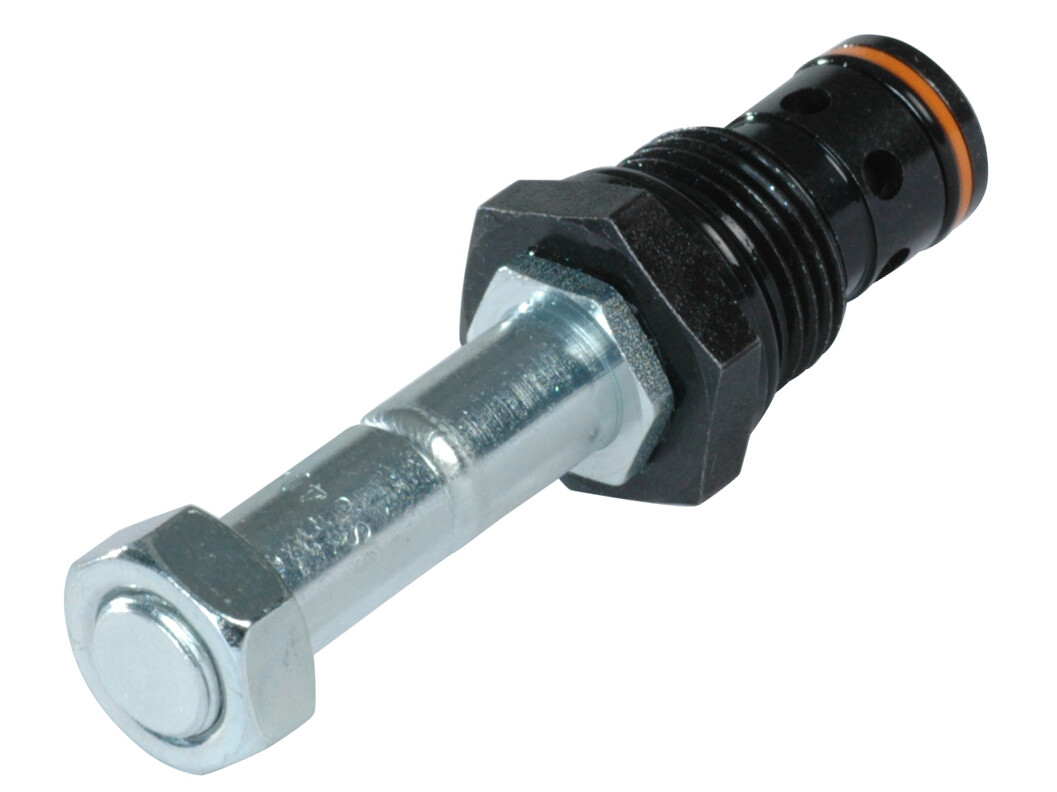

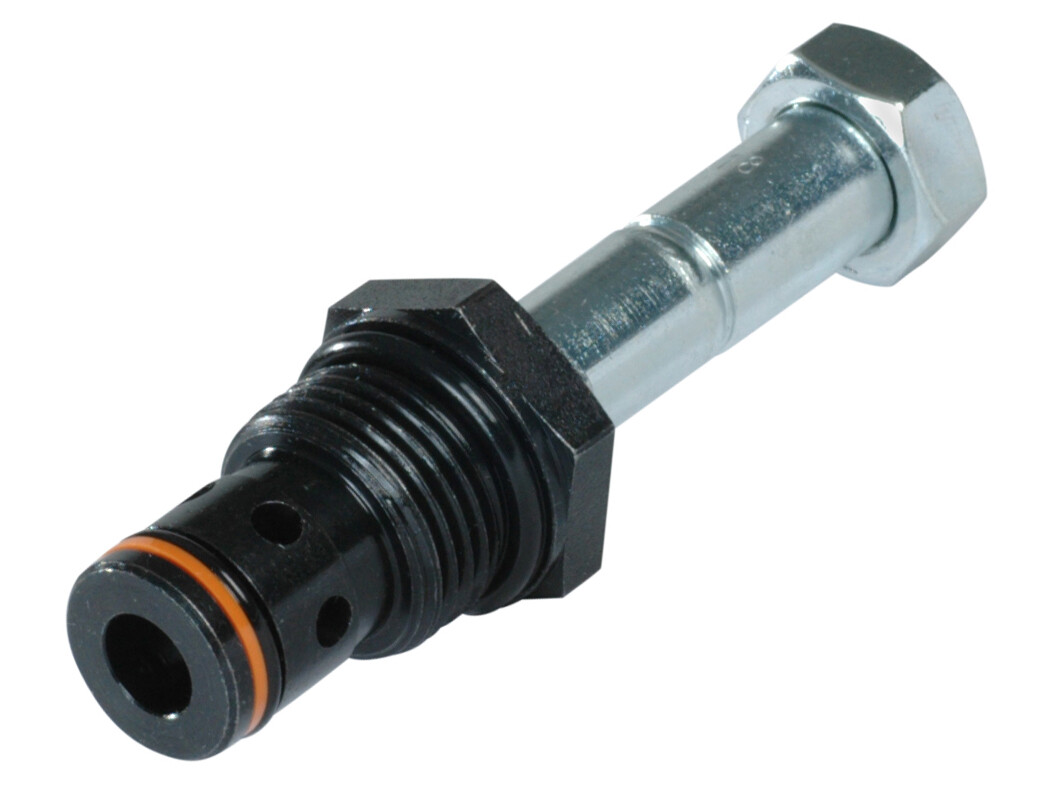

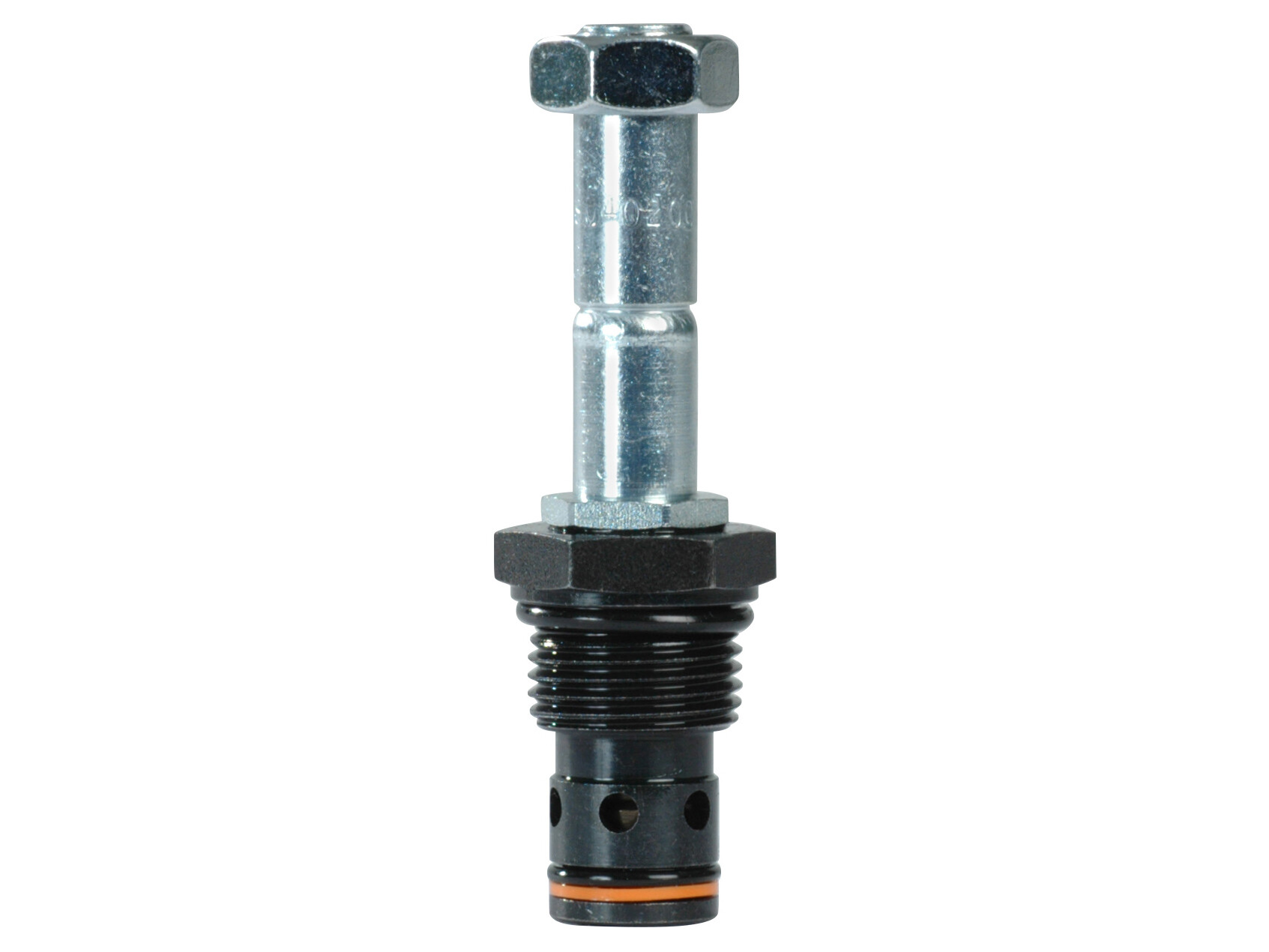

GS04-02-00N - Magnetv.patron NC.75lpm 210bar Cavity 2R
Magnetv.patron NC.75lpm 210bar Cavity 2R
Partnumber:
GS04-02-00N
Package size:
0 pcs
Min. order quantity is:
1 pcs
Activation
Magnetspole
Brand Name
Hydraspecma
Cavity
2R
Contamination level max.
18/16/13 - ISO 4406
Filter built-in
Nej
Flow rate nominal LMin
75 lpm
Manual operated
Nej
Number of ways/positions
2/2
Oil viscocity recommended
15 - 50 cSt
Pressure max.
210 bar
Sealing material
NBR
Solenoidtype
CCS
Temperature max.
+121 °C
Temperature min.
-34 °C
Torque tightening
34 Nm
Valve type
NC - Normalt lukket
Förpackningsstorlek
0 pcs
Streckkod
5704295032047
Bruttovikt
0,15 Kg
Nettovikt
0,15 Kg
Ursprungsland
USA
Intrastat artikelkod
84812010
Magnetv.patron NC.75lpm 210bar Cavity 2R
