FXRSW20SR34WD - Banjo - ø20S x 3/4" BSP med WD tætning NBR

Banjo - ø20S x 3/4" BSP med WD tætning NBR

Partnumber:

FXRSW20SR34WD

Package size:

1 pcs

Min. order quantity is:

1 pcs

Accessories (4)

FIDS20S - Dobbelt skærering - ø20S

Partnumber: FIDS20S

Nut - ø20S - M30x2

Partnumber: FIM20S

Double cutting ring WDDS - ø20S - packing

Partnumber: FIWDDS20S

M20S nut ø20 M30x2

Partnumber: M20S

Specifications
Dimensions and shipping

Diameter rør

20 mm

Dimension i

16 mm

Gevind udvendig

G 3/4 BSP

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

36,5 mm

47,5 mm

26 mm

48 mm

24 mm

Materiale

Stål

Model kode

FI-RSW-20SR-WD-B-W3

Mærke navn

Stauff

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

REACH compliant

RoHs compliant

36 mm

32 mm

36 mm

Serie

Sikkerhedsfaktor

Temperatur maks.

+100 °C

Temperatur min.

-35 °C

Thread T1

G 3/4 BSP

Tryk maks.

315 bar

Vinkel

90 °

20 mm

32,9 mm

16 mm

Package size

1 pcs

Barcode

5704334919612

Gross weight

Net weight

Country of origin

deu

Intrastat code

73071110

Product information

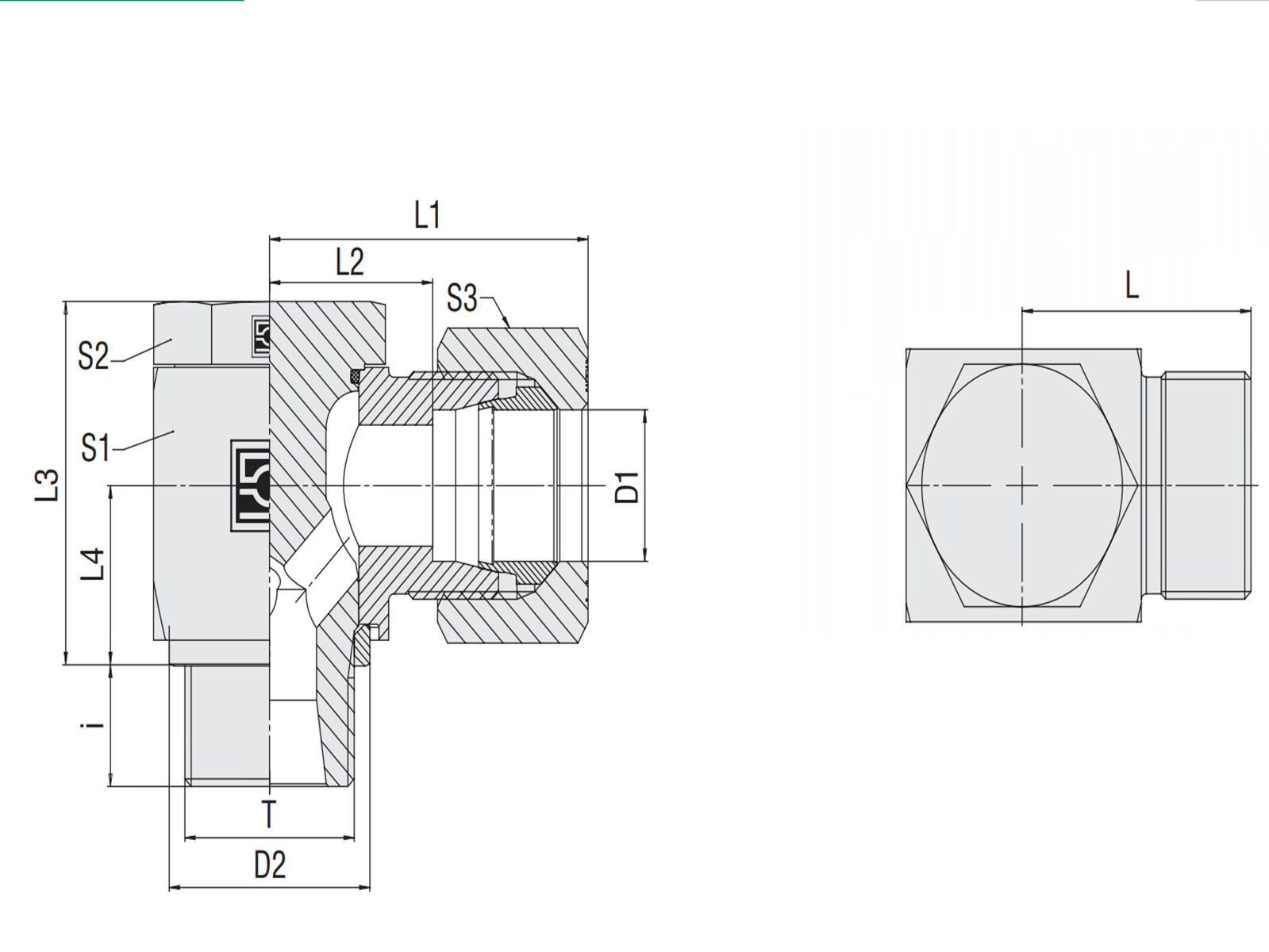

Measure sketch

Banjo - ø20S x 3/4" BSP med WD tætning NBR
