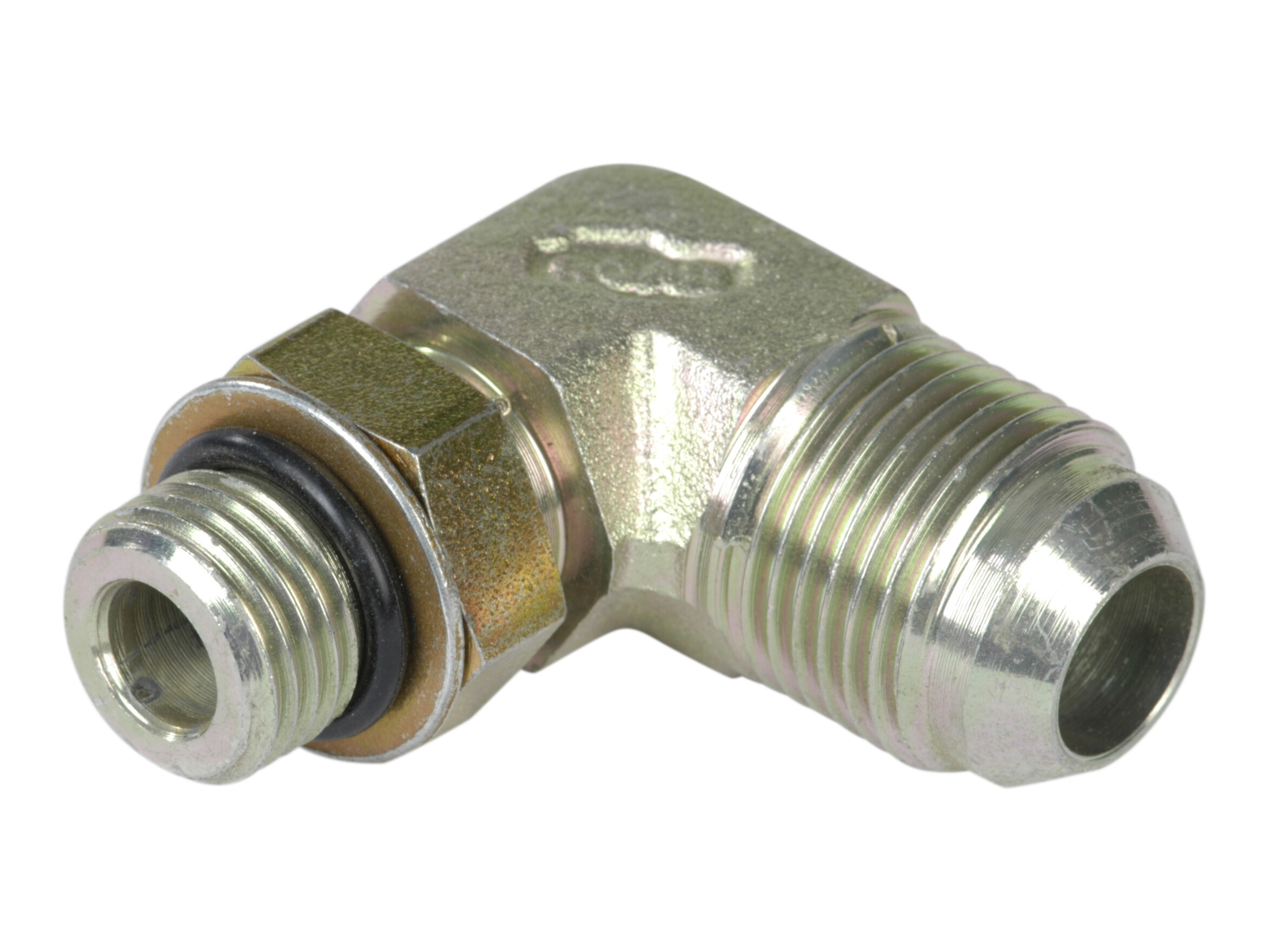

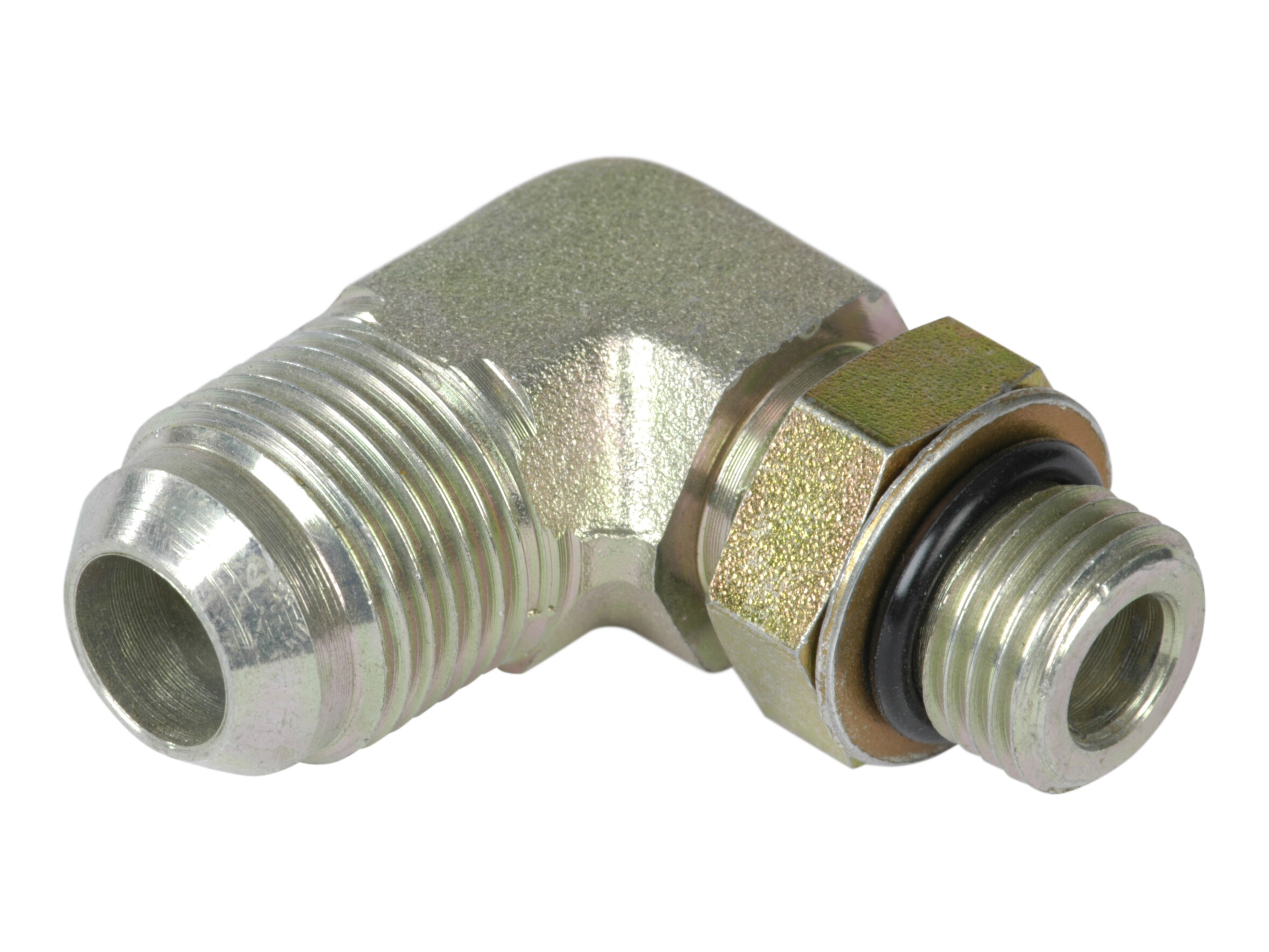

CO-12-9/16 - Vinkelindskruning 90 gr 3/4-16 JIC udv x 9/16-18 UNF udv
Vinkelindskruning 90 gr 3/4-16 JIC udv x 9/16-18 UNF udv
Partnumber:
CO-12-9/16
Package size:
0 pcs
Min. order quantity is:
1 pcs
B
31,5 mm
C
33,5 mm
CH
17 mm
Diameter rör
12 mm
Dimension F
9/16-18 UNF
Gänga utv.
3/4-16 JIC
Gänga utv.
9/16-18 UNF
J
3/4-16 JIC
Märke namn
FOR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
T
12 mm
Tillverkningsmaterial
Stål
Tryck max.
350 bar
Vinkel
90 °
Ytskiktbehandling
El-forzinket / hvidkromatiseret
Package size
0 pcs
Barcode
5704334273998
Gross weight
0,09 Kg
Net weight
0,09 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkelindskruning 90 gr 3/4-16 JIC udv x 9/16-18 UNF udv
