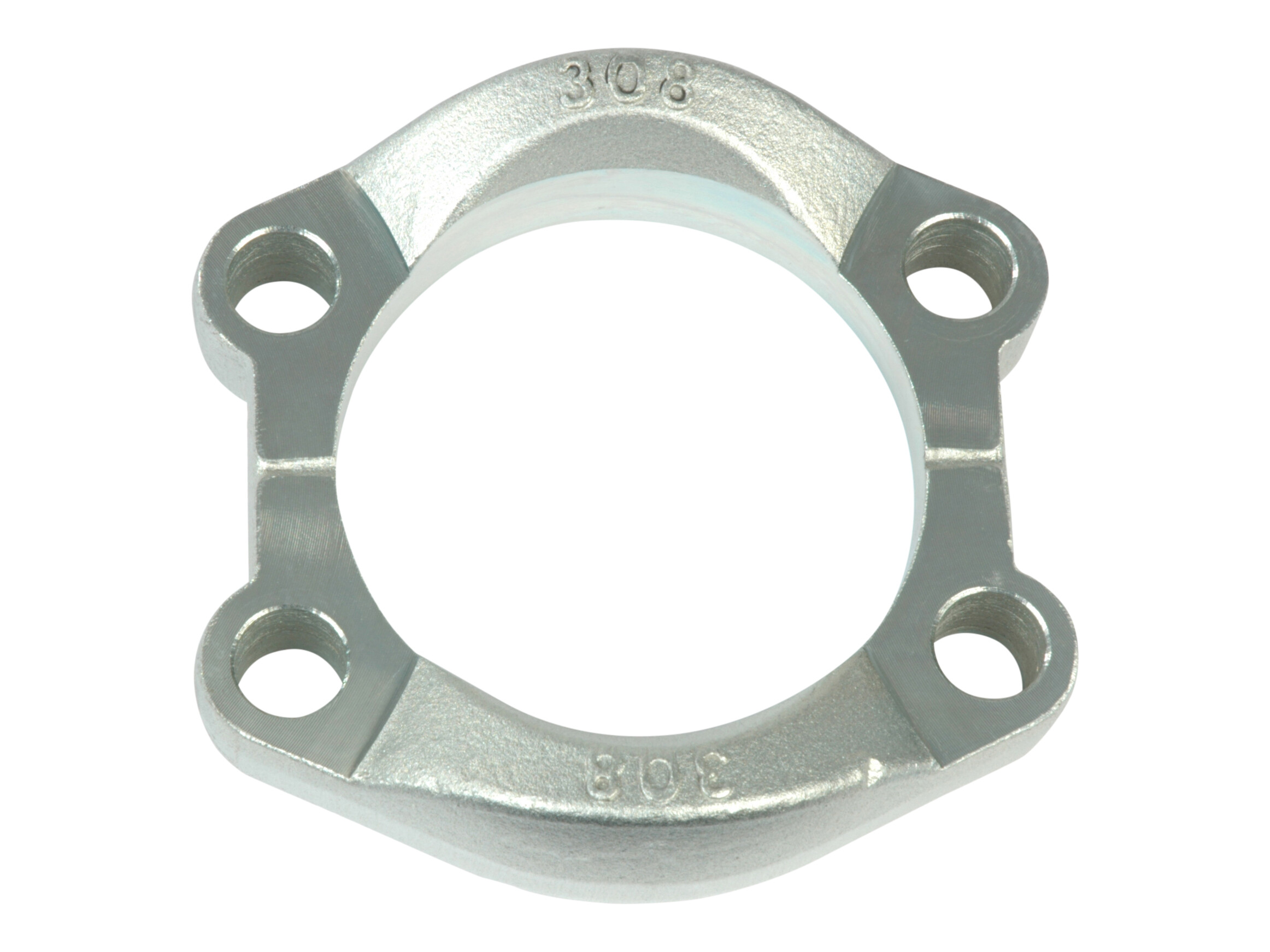

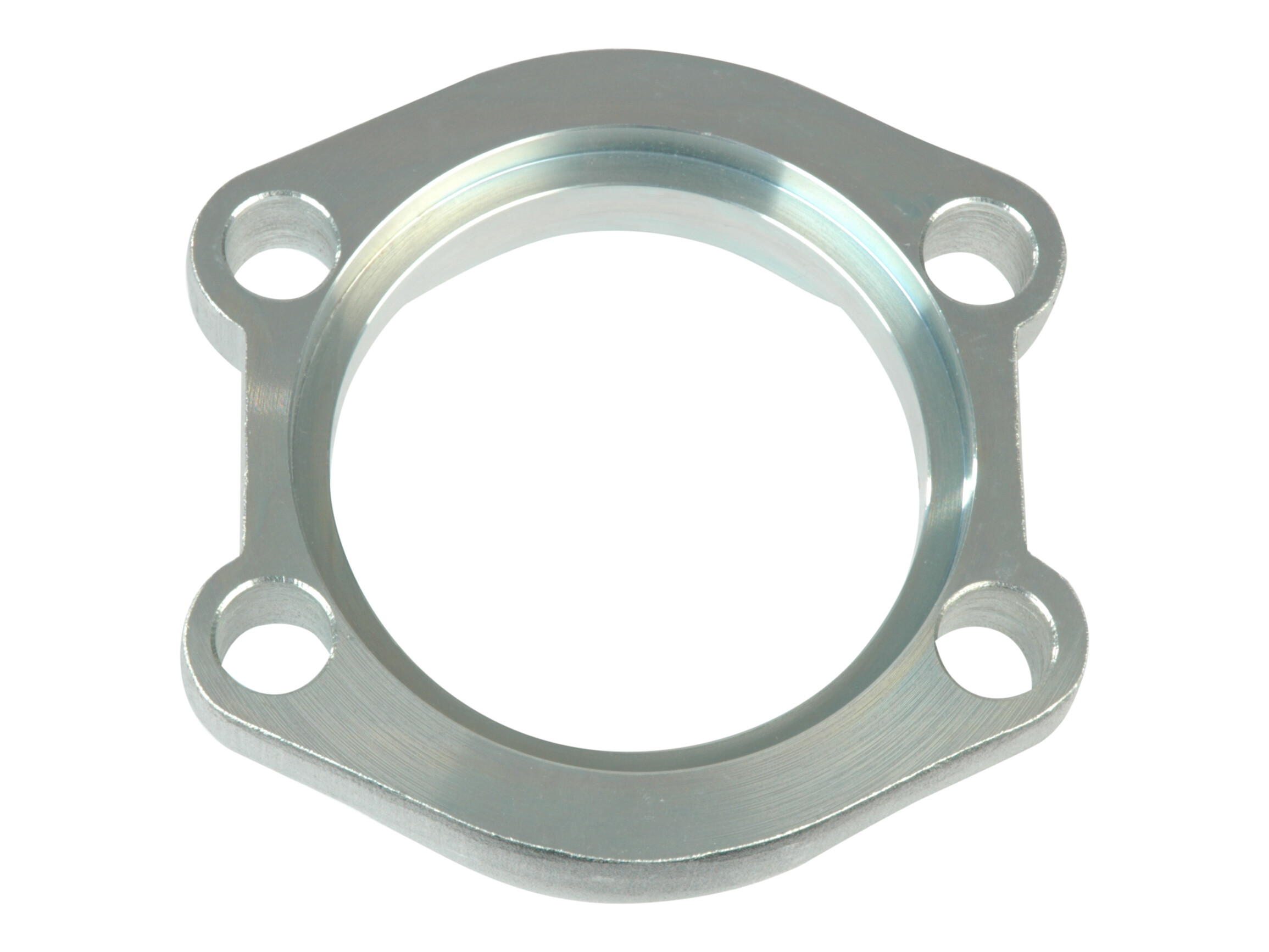

Fuldflange 3" SAE3000
Fuldflange 3" SAE3000
Partnumber:
AFSI308
Package size:
0 pcs
Min. order quantity is:
1 pcs
Bolt dimension
M16x50 mm
Brand Name
Havit
C
106,4 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
101.6 mm
E
61,9 mm
Flange
3 "
Flange SAE/DIN
3000 PSI
Material
Stål
O-ring
85,32X3,53 mm
Pressure max.
160 bar
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Förpackningsstorlek
0 pcs
Streckkod
5704295364582
Bruttovikt
1,30 Kg
Nettovikt
1,30 Kg
Ursprungsland
DEU
Intrastat artikelkod
73079100
Fuldflange 3" SAE3000
