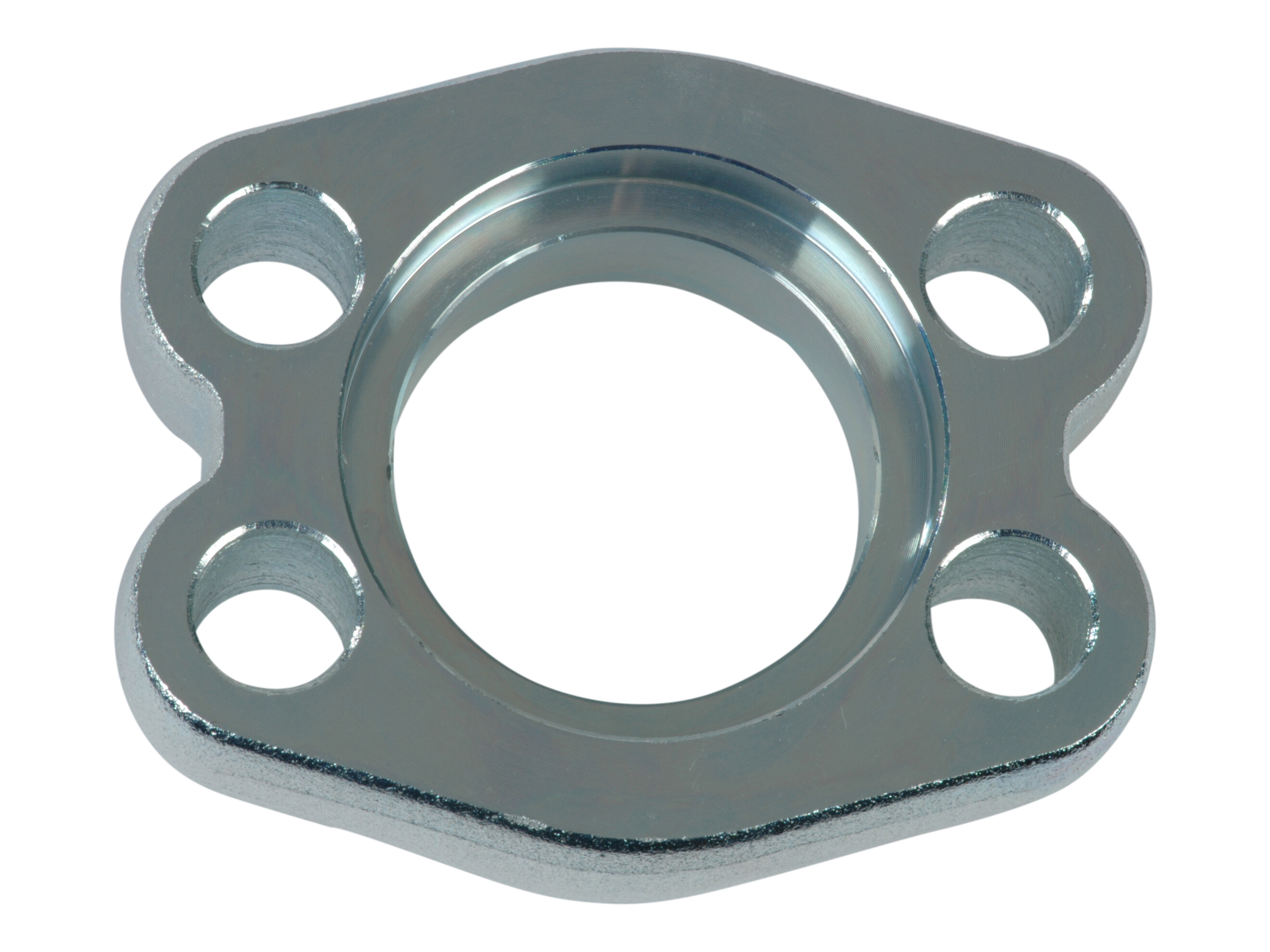

Fuldflange 1.1/4" SAE6000

Varenummer:

AFSI604

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (1)

O-ring 90S

Partnumber: 37.69X3.53S

Specifications
Dimensions and shipping

Bolt dimension

M14x40 mm

Diameter flange

54 mm

Dimension C

66.6 mm

Dimension E

31.8 mm

Flange

1.1/4 "

Flange SAE/DIN

6000 PSI

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

37.69X3.53 mm

Overfladebehandling

Zink-Nikkel belagt

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

420 bar

Package size

0 pcs

Barcode

5704295321226

Gross weight

0,80 Kg

Net weight

0,80 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Fuldflange 1.1/4" SAE6000
