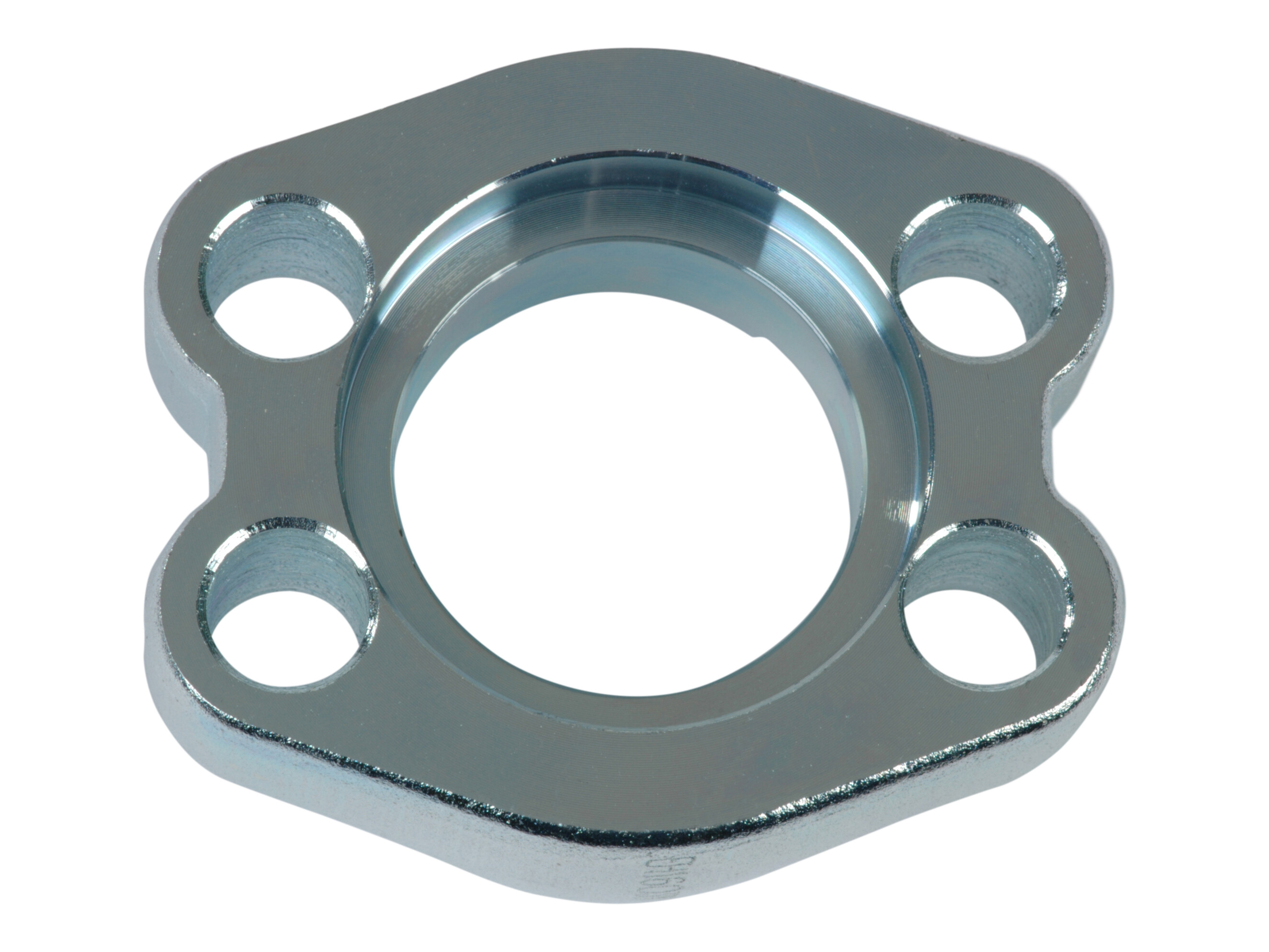

Fuldflange 1" SAE6000

Partnumber:

AFSI603

Package size:

0 stk

Min. order quantity is:

1 stk

Specifications
Dimensions and shipping

48,4 mm

38,8 mm

Bolt dimension

M12x45 mm

Brand Name

Havit

57,2 mm

Corrosion resistance

480 hours salt spray DIN EN 9227

81 mm

Diameter flange

47.6 mm

27,8 mm

70 mm

Flange

1 "

Flange SAE/DIN

6000 PSI

33 mm

24 mm

9 mm

13,3 mm

Material

Stål

O-ring

32,93X3,53 mm

Pressure max.

420 bar

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

Zink-Nikkel belagt

Temperature max.

+90 °C

Temperature min.

-40 °C

Package size

0 stk

Barcode

5704295321219

Gross weight

0,53 Kg

Net weight

0,53 Kg

Country of origin

DEU

Intrastat code

73079100

Product information

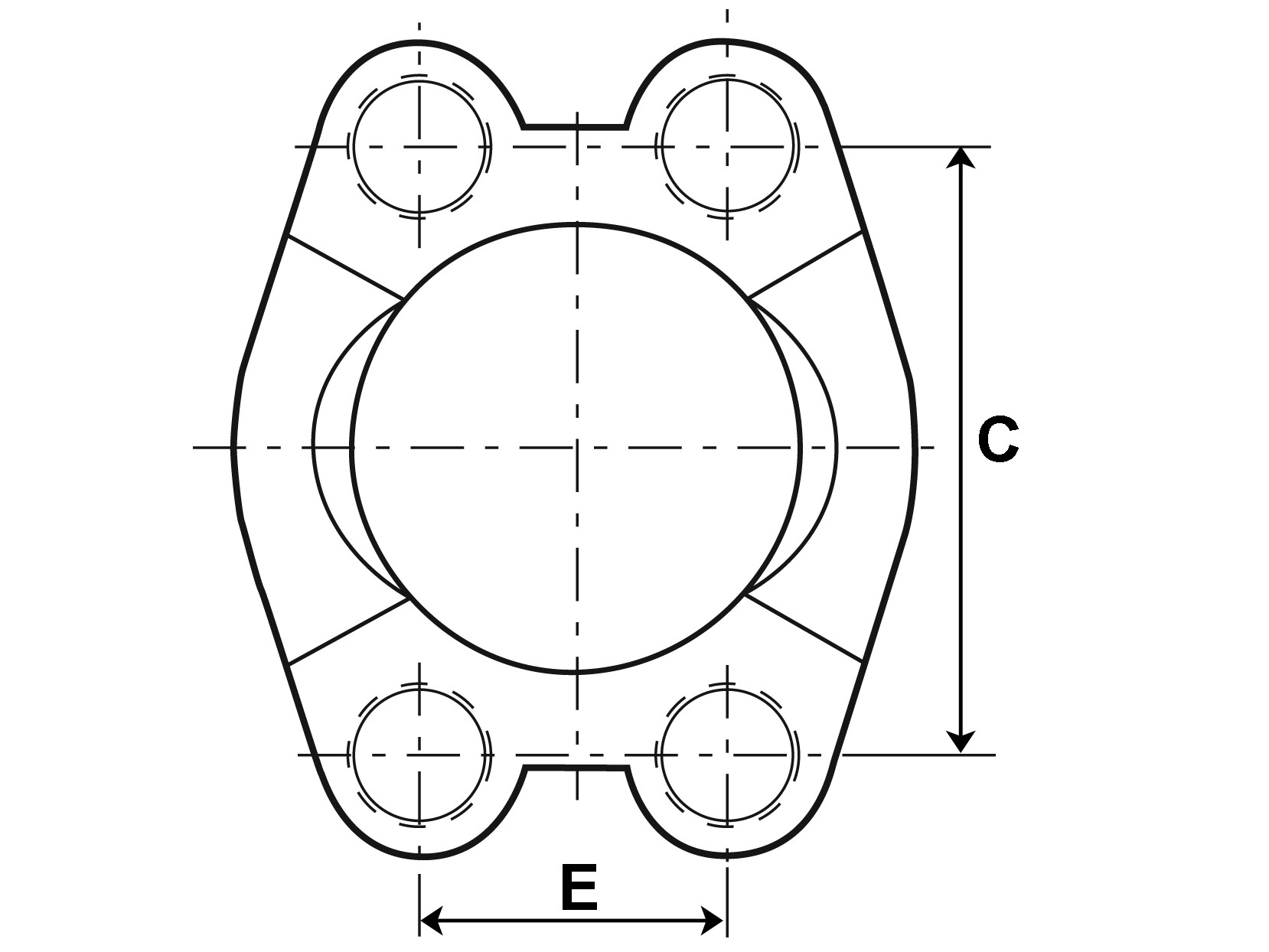

Measure sketch

Fuldflange 1" SAE6000

Frequently bought together with

Elaflex seal in Oilit Type: HBD 33/24 for 1" thread

Partnumber:

0206174034

Package size:

0 pcs

Min. order quantity is:

1 pcs

Others has been looking for

Fuldflange 1" SAE3000 - M10 bolthuller

Partnumber:

GFSI303

Package size:

0 stk

Min. order quantity is:

1 stk

Fuldflange 1" SAE3000 - M12 bolthuller

Partnumber:

GFSI603

Package size:

0 stk

Min. order quantity is:

1 stk

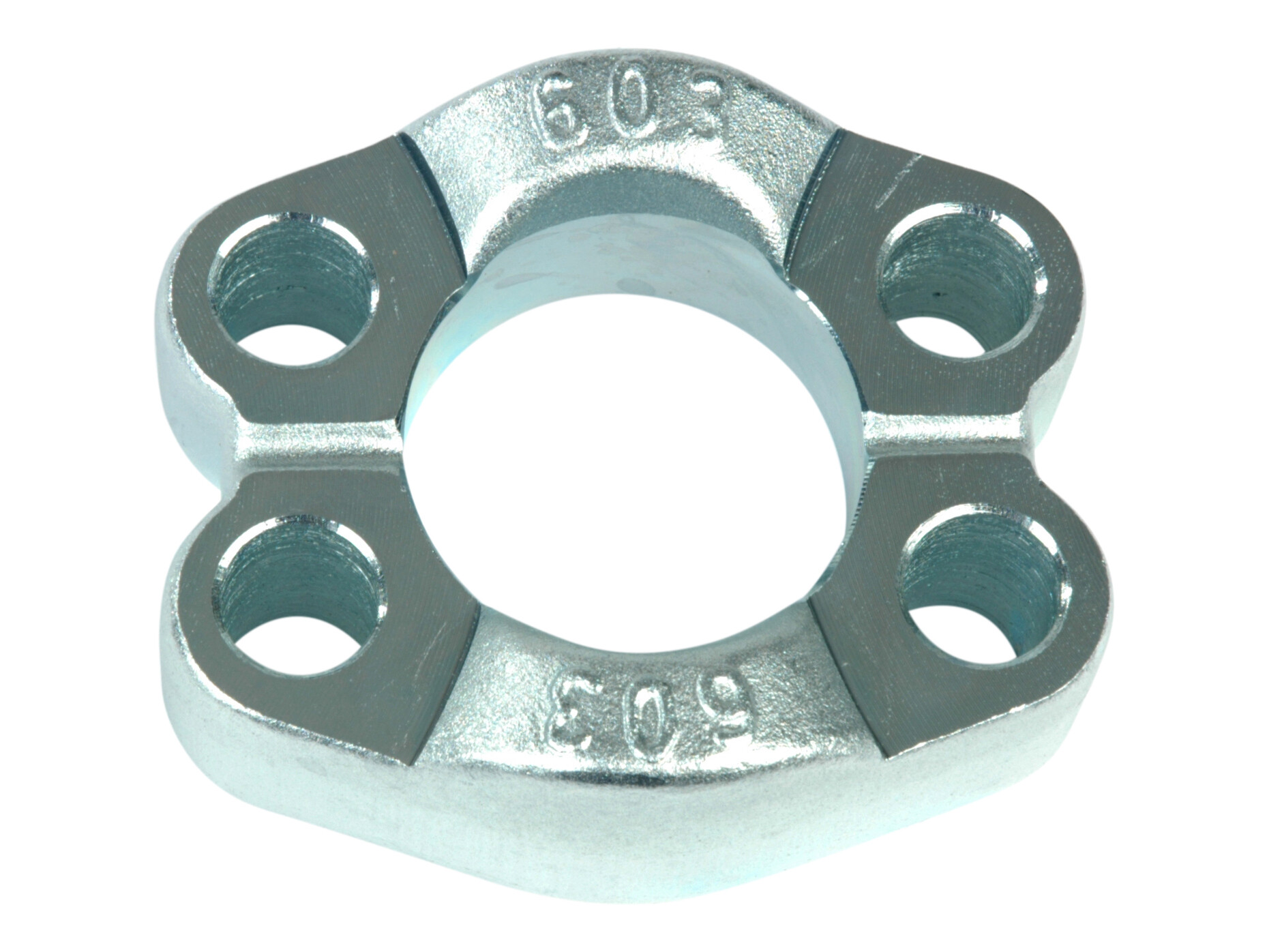

Helflanger (GFSI)
