    • Svejseflange 1.1/2" SAE3000

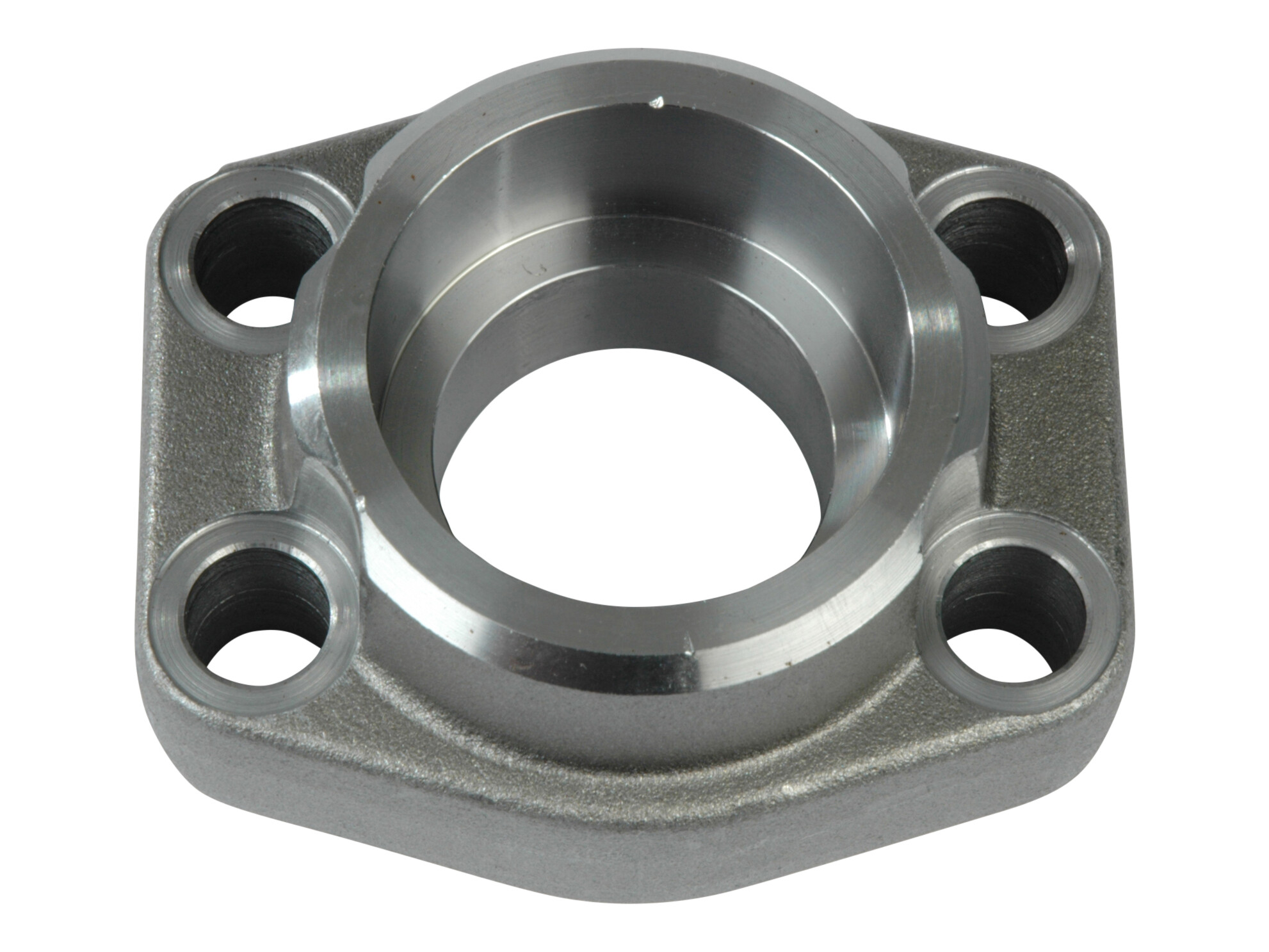

    Svejseflange 1.1/2" SAE3000

    Svejseflange 1.1/2" SAE3000

    Partnumber:
    AFS106S
    Package size:
    0 pcs
    Min. order quantity is:
    1 pcs
    O-ring 90S
    Partnumber: 47.22X3.53S
    Bolts (4) for SAE flanges - 10.9 ZiNi - UNC 1/2" x 1.3/4"
    Partnumber: UNC12-134ZN
    Bolt dimension
    M12x45 mm
    Diameter flange
    60.3 mm
    Dimension C
    69.9 mm
    Dimension E
    35.7 mm
    Flange
    1.1/2 "
    Flange SAE/DIN
    3000 PSI
    Materiale
    Stål
    Mærke navn
    Havit
    O-ring
    47.22X3.53 mm
    Shore
    90
    Standard ISO
    ISO 6162-1
    Standard SAE
    SAE J518 Code 61
    Temperatur maks.
    +90 °C
    Temperatur min.
    -40 °C
    Tryk maks.
    210 bar
    Vinkel
    0 °
    Package size
    0 pcs
    Barcode
    5704295320656
    Gross weight
    1,05 Kg
    Net weight
    1,05 Kg
    Country of origin
    DEU
    Intrastat code
    73079100

    Svejseflange 1.1/2" SAE3000

    Tekniske data
