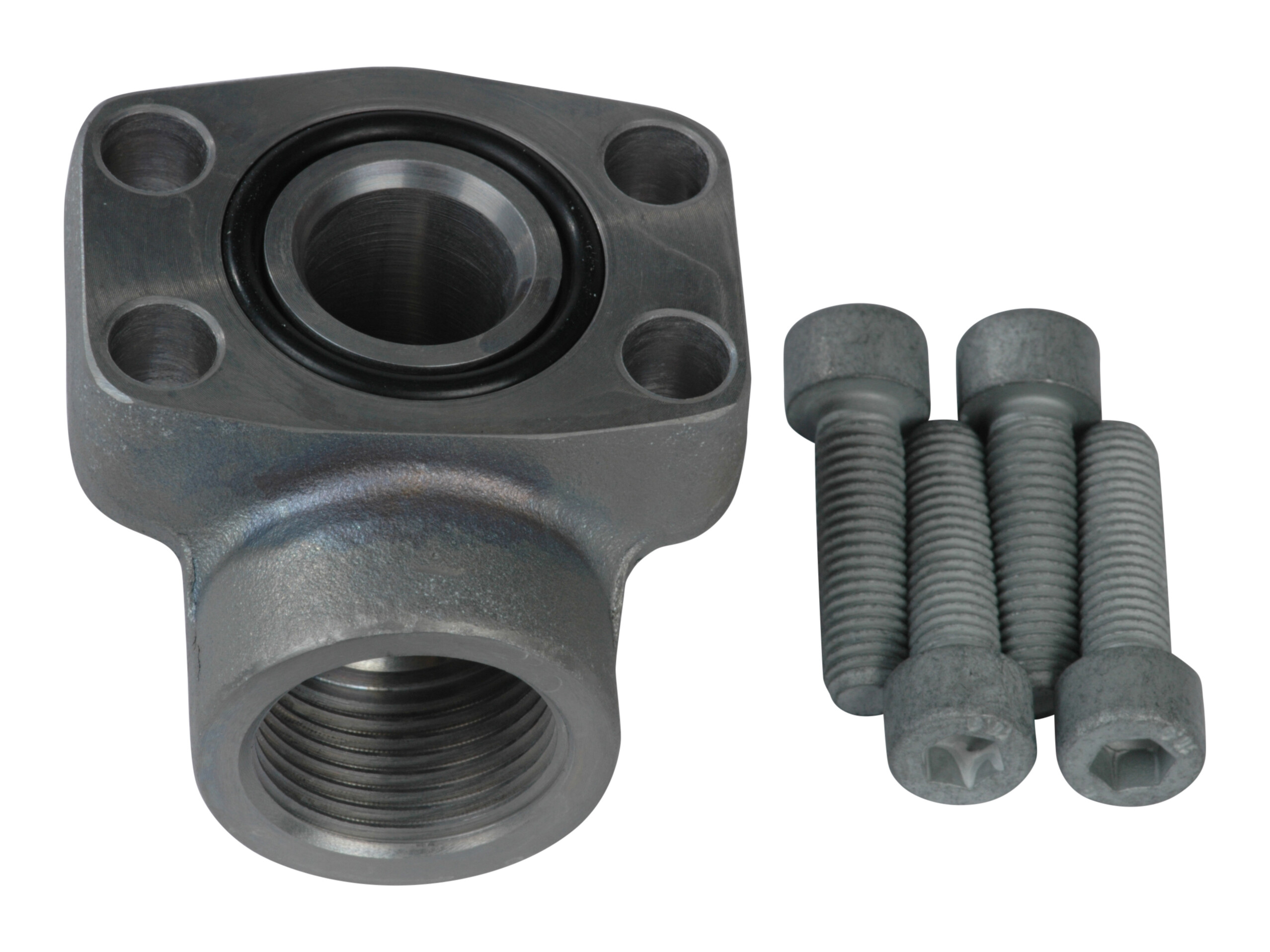

Vinkelflange 1" SAE3000 x 1" BSP - komplet

Vinkelflange 1" SAE3000 x 1" BSP - komplet

Varenummer:

AFS102/90GM

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Spare parts (2)

O-ring 90S

Varenummer: 32.93X3.53S

Boltsæt (4) for SAE flanger - 10.9 ZiNi - UNC 3/8" x 1.1/2"

Varenummer: UNC38-112ZN

Specifikationer
Dimensioner og forsendelse

Antal bolte

Bolt dimension

M10x35 mm

Diameter flange

44.5 mm

Dimension C

52.4 mm

Dimension E

26.2 mm

Flange

1 "

Flange SAE/DIN

3000 PSI

Gevind indvendig

G 1 BSP

Korrosions resistens

480 hours salt spray DIN EN 9227

Materiale

Stål

Mærke navn

Havit

O-ring

32.93X3.53 mm

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

320 bar

Vinkel

90 °

Pakke str.

0 pcs

Stregkode

5704295912714

Brutto vægt

0,72 Kg

Netto vægt

0,72 Kg

Oprindelsesland

DEU

Intrastat varekode

73079100

Produkt information
Målskitse

Vinkelflange 1" SAE3000 x 1" BSP - komplet
