Vinkel 1.3/16 ORFS x1" 3000 PSI flange
Vinkel 1.3/16 ORFS x1" 3000 PSI flange
Partnumber:
127PA1216
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter flange
44.5 mm

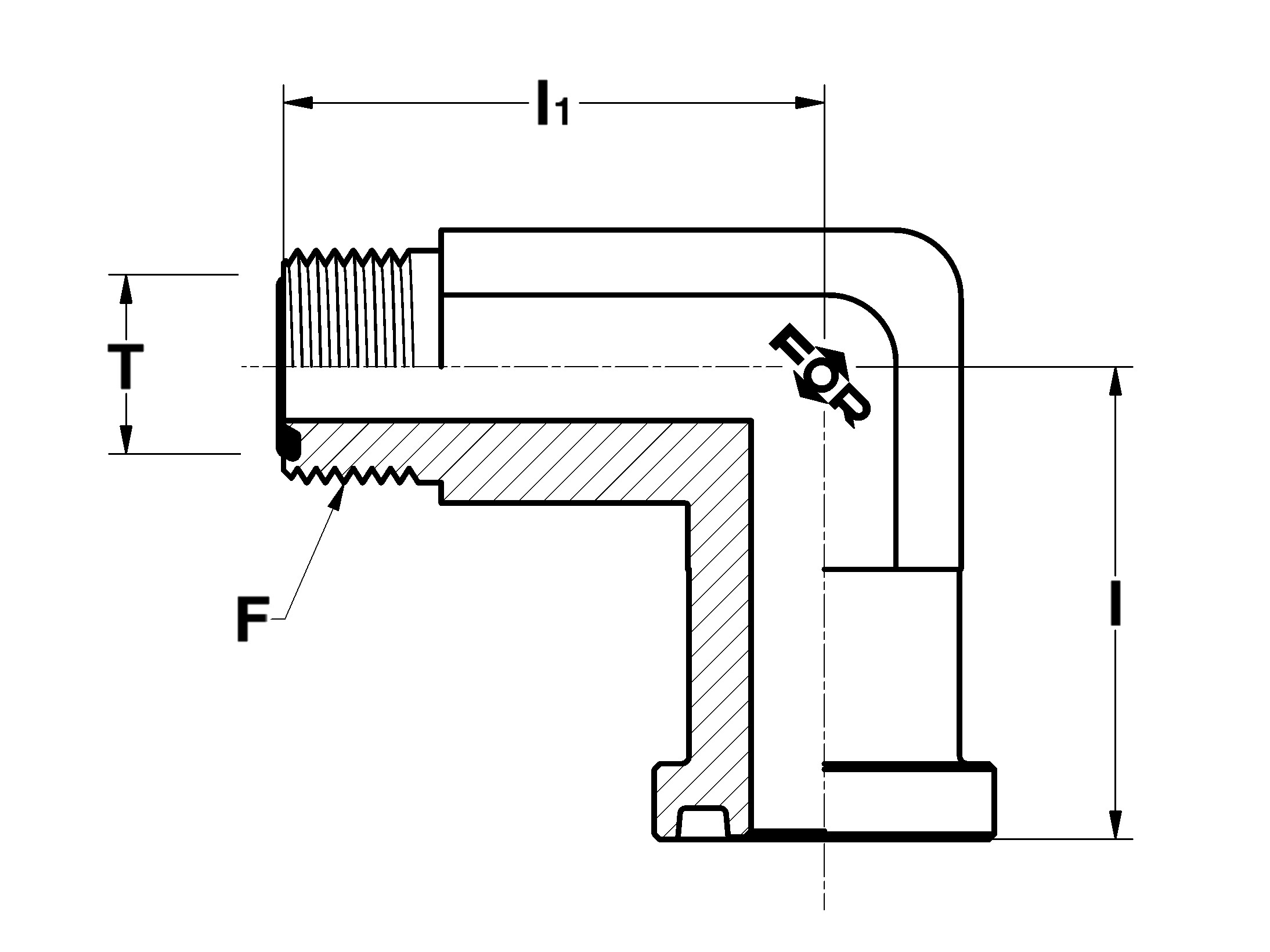

Dimension A
52.4 mm
Dimension B
26.2 mm
Dimension C
52.4 mm
Dimension E
26.2 mm
Dimension l
54 mm
Dimension l1
61 mm
Flange
1 "
Flange SAE/DIN
3000 PSI
Gevind udvendig
1.3/16-12 ORFS
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Stål
Mærke navn
FOR
O-ring
32.93X3.53 mm
Overfladebehandling
El-forzinket / hvidkromatiseret
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Vinkel
90 °
Package size
0 pcs
Barcode
5704334635505
Gross weight
0,56 Kg
Net weight
0,56 Kg
Country of origin
ITA
Intrastat code
73071110
Vinkel 1.3/16 ORFS x1" 3000 PSI flange
