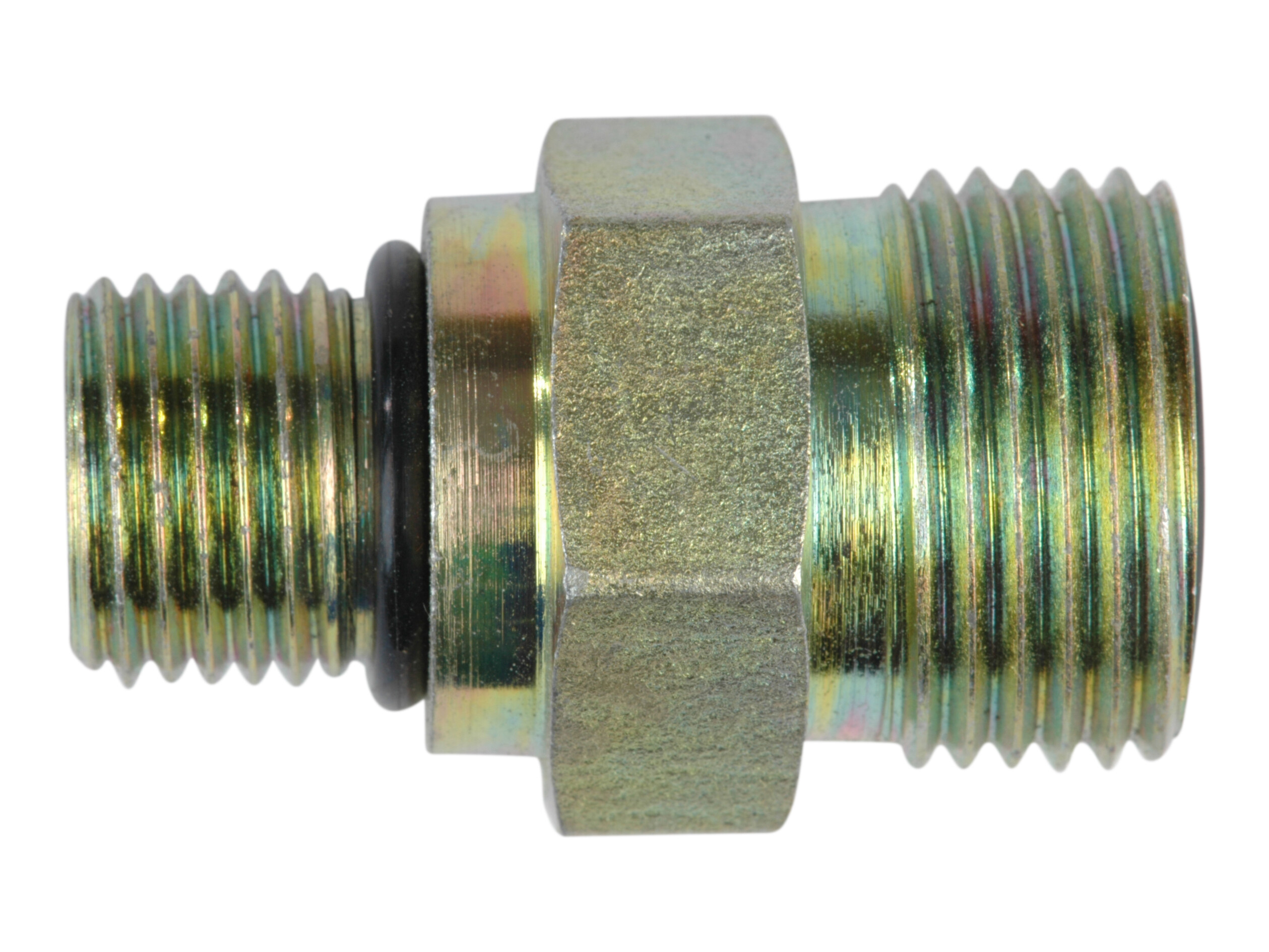

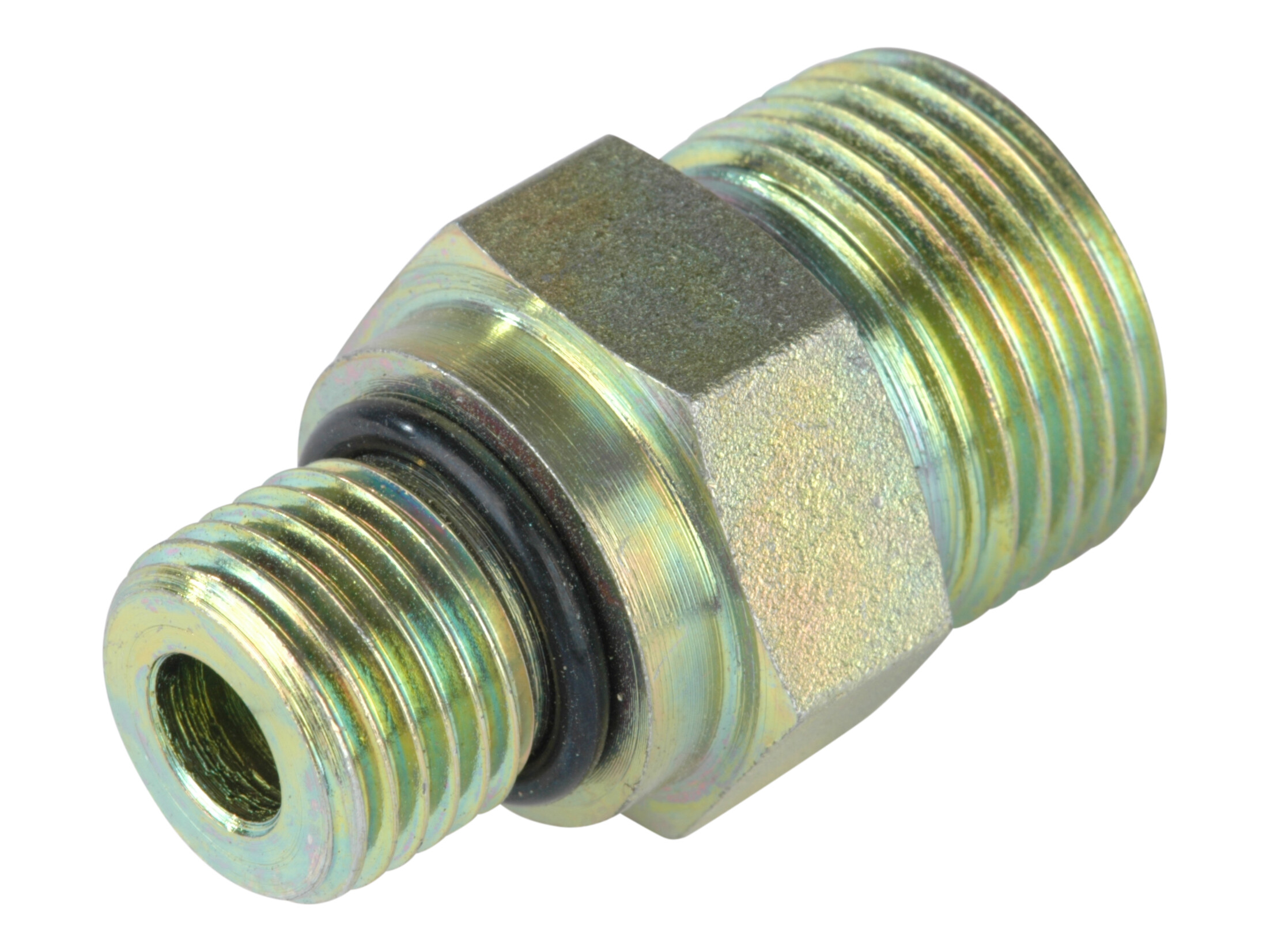

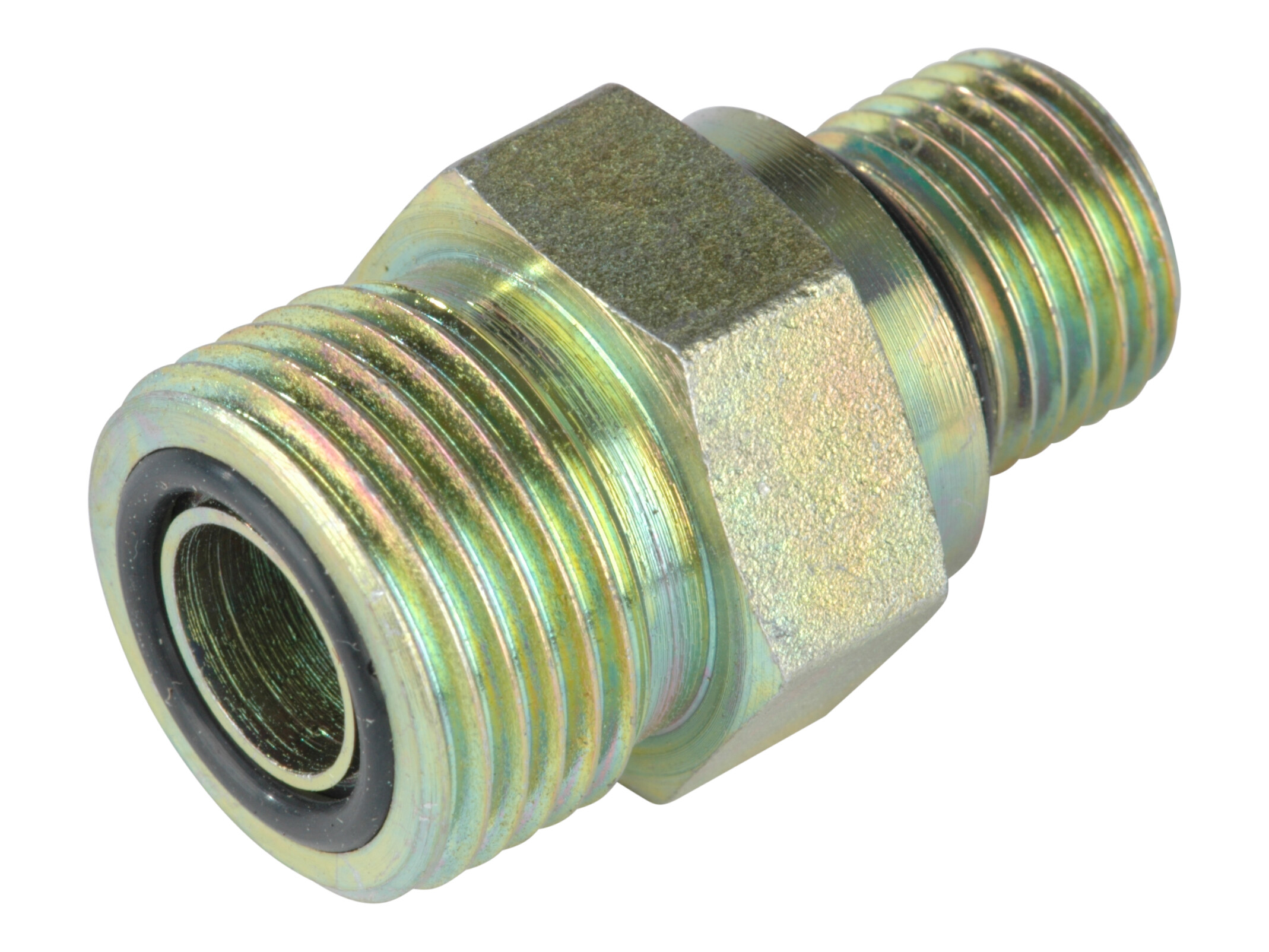

Adaptor 13/16 ORFS x 9/16SAE
Adaptor 13/16 ORFS x 9/16SAE
Partnumber:
OFGEU-08-06
Package size:
1 st
Min. order quantity is:
1 st
Angle
0 °
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Dimension A
37.5 mm
Dimension B1
13 mm
Dimension CH
22 mm
Dimension D
12 mm
Material
Steel
Pressure max.
630 bar
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
13/16-16 ORFS
Thread outer
9/16-18 UNF
Package size
1 st
Barcode
134190
Gross weight
0,06 Kg
Net weight
0,06 Kg
Country of origin
ITA
Intrastat code
73071110
Adaptor 13/16 ORFS x 9/16SAE
