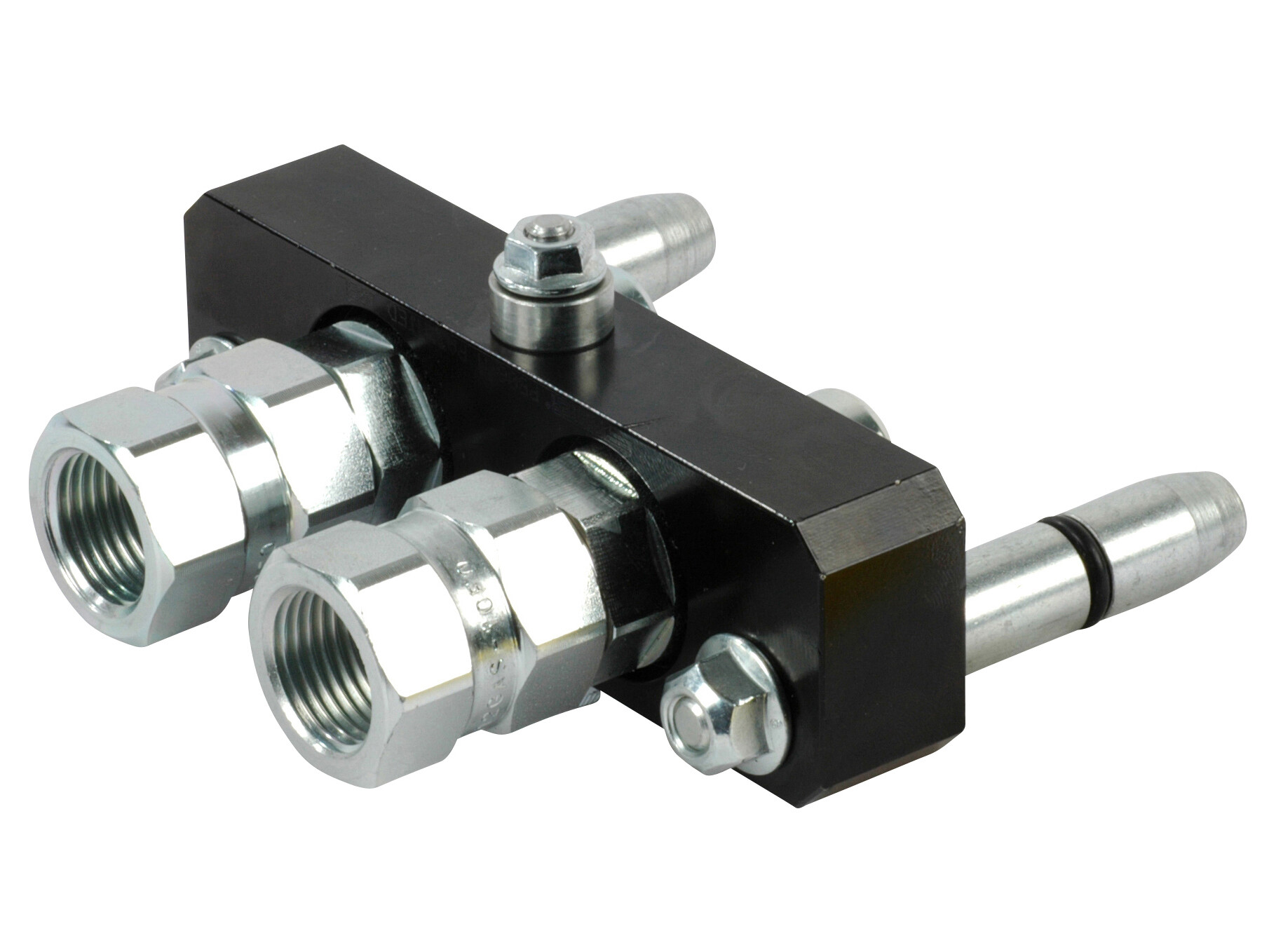

MultiFaster Mobile part 2PB06 2 outlet 3/8 , 1/2 BSP femal

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.

Partnumber:
2PB06212GMC

Package size:
0 pcs

Min. order quantity is:
1 pcs
MultiFaster Mobile part 2PB06 2 outlet 3/8 , 3/8 BSP femal
Partnumber: 2PB06238GMC
Guide pins Ø14x50mm MultiFaster
Partnumber: KITGP4
Bolts ø10x52mm MultiFaster
Partnumber: KITVPB06
Sealkit Multifaster 38 M (10)
Partnumber: SKMF38
Brand Name
Faster

Corrosion resistance
500 hours salt spray ISO 9227

Flow rate nominal LMin
40 lpm

Model
2PB06

Model code
2PB06-2-12GMC

Number of connectors
2

Pressure burst min.
1000 bar

Pressure max.
250 bar

Pressurized connection
Not allowed

Sealing material
NBR, Polyurethane

Series
PB06

Size
3/8 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread
G 1/2 BSP
Package size
0 pcs

Barcode
5704334216025

Gross weight
0,89 Kg

Net weight
0,89 Kg

Country of origin
ITA

Intrastat code
84812010

MultiFaster quick coupling.

Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.

Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
